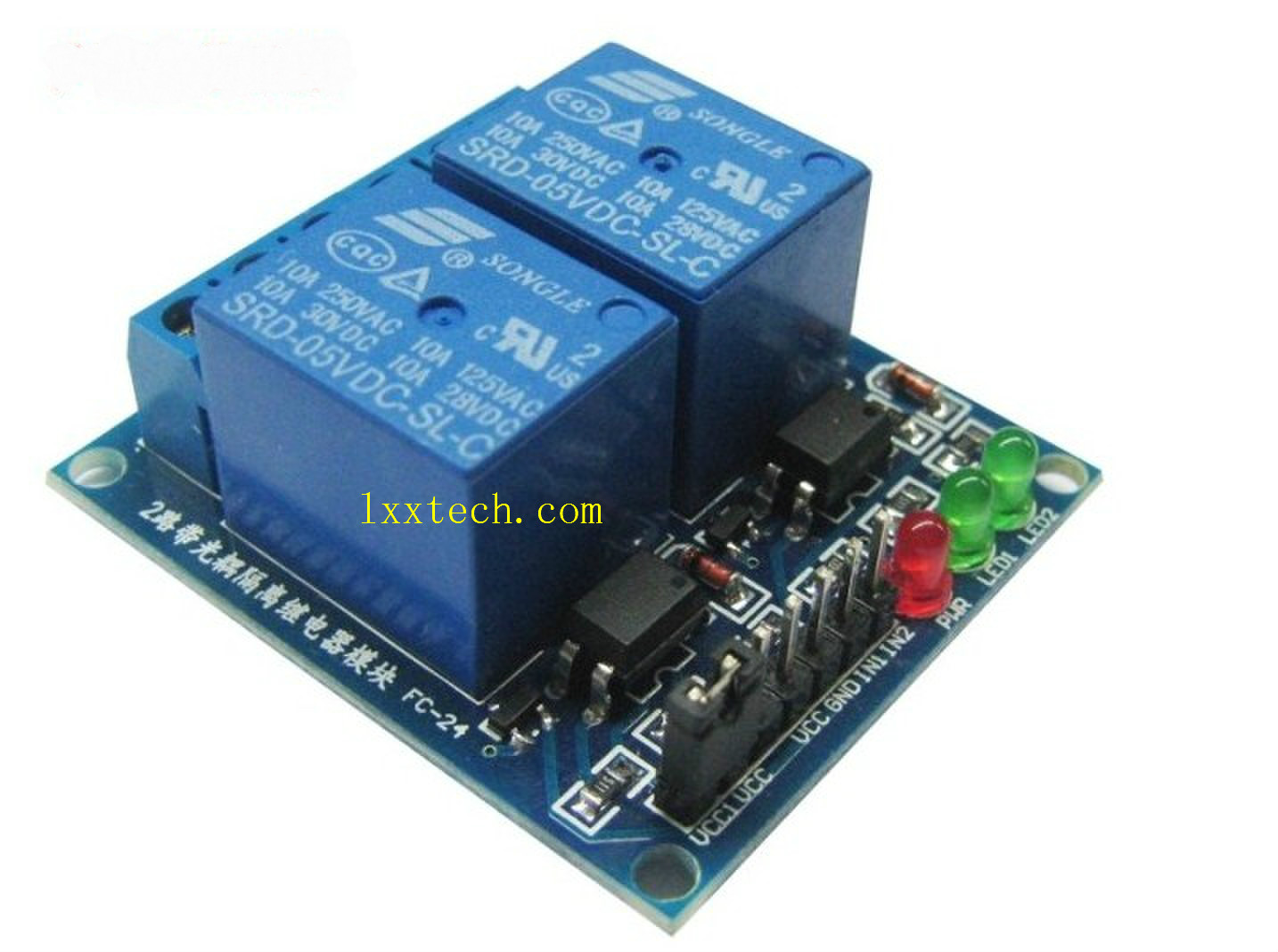

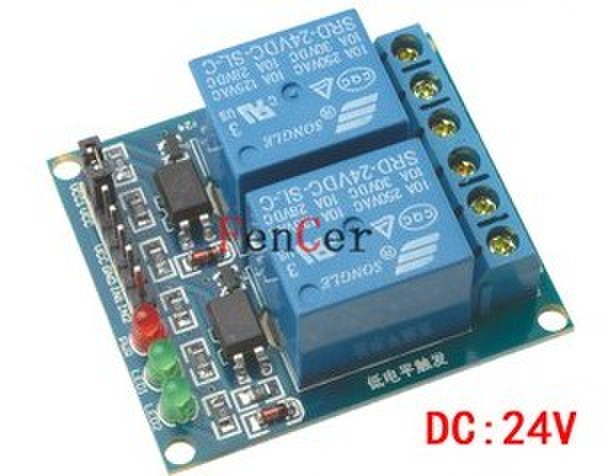

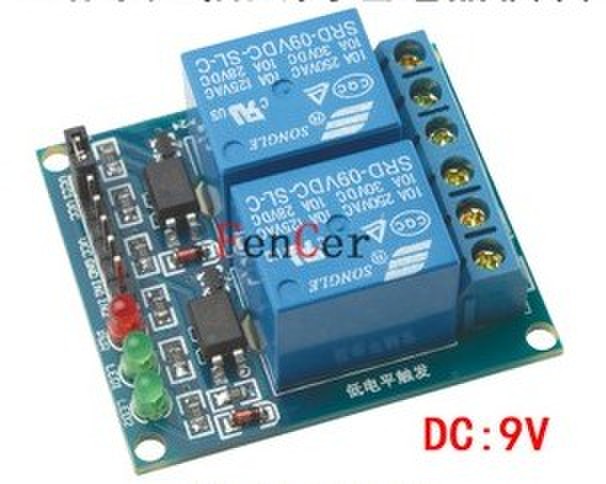

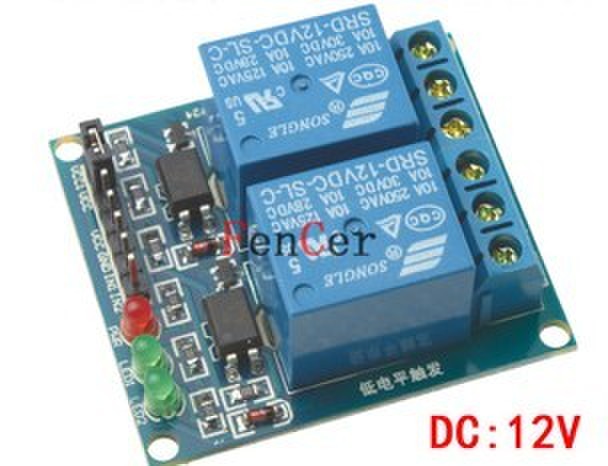

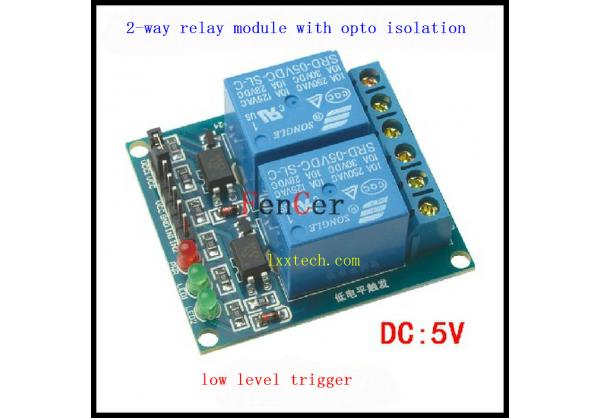

Relay&Relay Module 2-way relay module with opto isolation, low level trigger 5V/9V/12V/24V

Relay&Relay Module 2-way relay module with opto isolation, low level trigger 5V/9V/12V/24V factory Relay&Relay Module 2-way relay module with opto isolation, low level trigger 5V/9V/12V/24V factory Relay&Relay Module 2-way relay module with opto isolation, low level trigger 5V/9V/12V/24V factory

Large Image:Relay&Relay Module2-way relay module with opto isolation, low level trigger 5V/9V/12V/24V

Product Details:

Place of Origin: CHINA
Brand Name: LXXTECH
Model Number: LXX-0244
Certification:

Payment & Shipping Terms:

Minimum Order Quantity: 20
Price: good price
Delivery Time:
Payment Terms: TT ,paypal,ESCROW
Supply Ability:
Detailed Product Description


Product description:

1 , the module complies with international safety standards, the control area and the load region isolation trench ;
2 , using double-sided FR-4 circuit board design , high-end chip production process ;
3 , part of the relay contacts using double-sided bold wiring , safe and reliable ;
4, using loose music authentic relay control ;
5 , anti-interference ability , using optical isolation and freewheeling diode protection ;
6, with the power supply and relay instructions , pull off, disconnect does not shine ;
7 , there are low-level signal input signal, the common terminal will start with regular conduction ;
8 , the relay can control the various devices and the load ;
9, the input and output power can be set using the two power supply, you can use a set of power supply, the
use of more flexible ;
10 , there are two normally open and two normally closed contacts ;
11 , blue KF301 terminals to the control line is more convenient.
12 , module size : 45x40x18.5mm; Weight : 30g
13 , finished through 100% functional testing and stability testing ;


Module interface :

First, the input section :

VCC: positive power supply ( by relay voltage supply )
GND: tied to power supply
IN1: 1 relay module signals trigger terminal
IN2: 2 -channel relay module signals trigger terminal
VCC1: upright pole relay separately powered
When VCC VCC1 plug with jumpers , the relay with the trigger end power sharing .

Second, the output section ( relay outputs ) :
1,1 way normally start NO1: 1 relay normally open interfaces , the relay becomes vacant before , pull shorting after the COM1
2,1 Lu common COM1: 1 relay common interface
3,1 -way normally closed terminal NC1: 1 normally closed relay interface relay shorted before and COM1 , pull vacant post
4,2 way normally start NO2: 2 way normally open relay interface relay becomes vacant before , after and COM2 pull shorting
5,2 Lu common COM2: 2 Common Interface Relay
6,2 -way normally closed terminal NC2: 2 way normally closed relay interface relay shorted before and COM2 , pull vacant post




5v:
