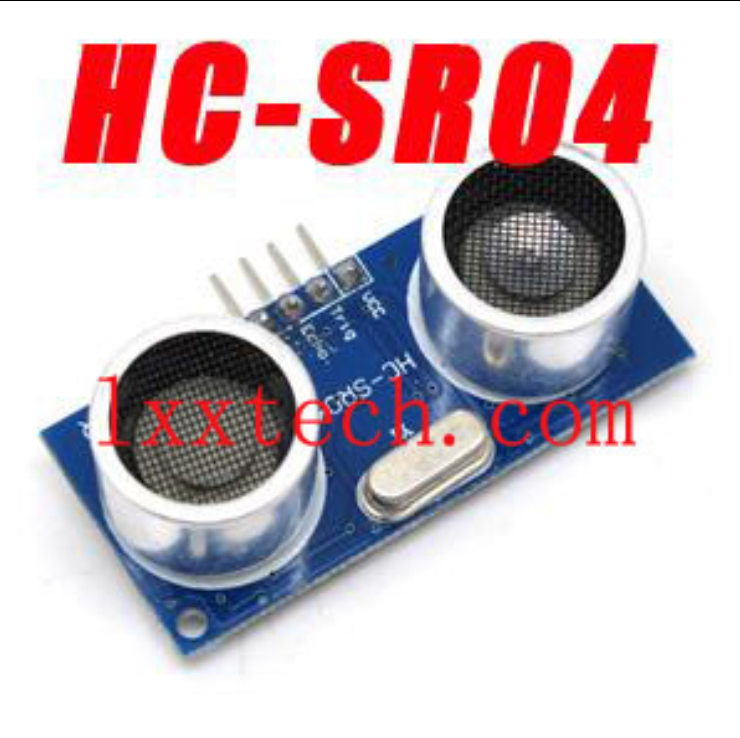

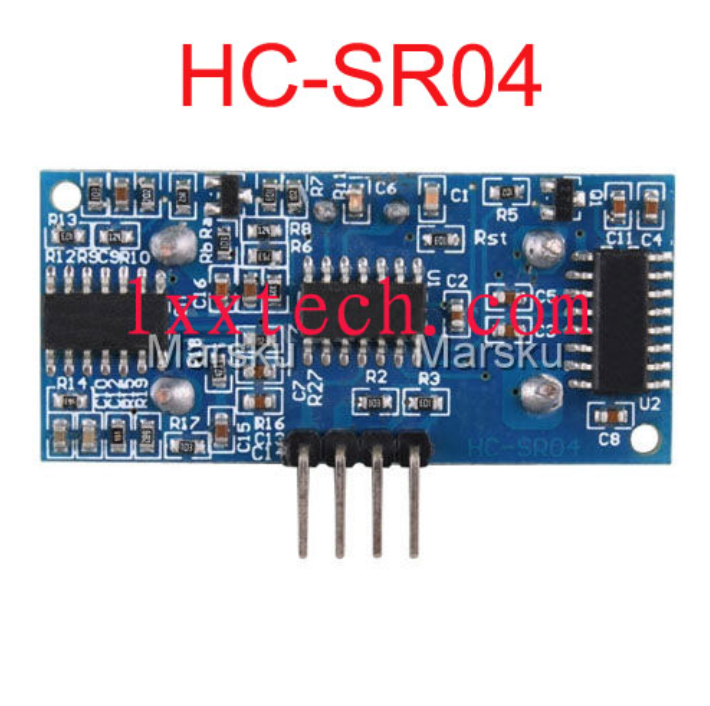

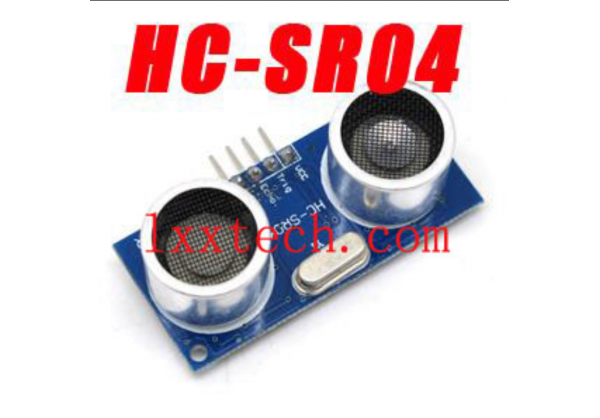

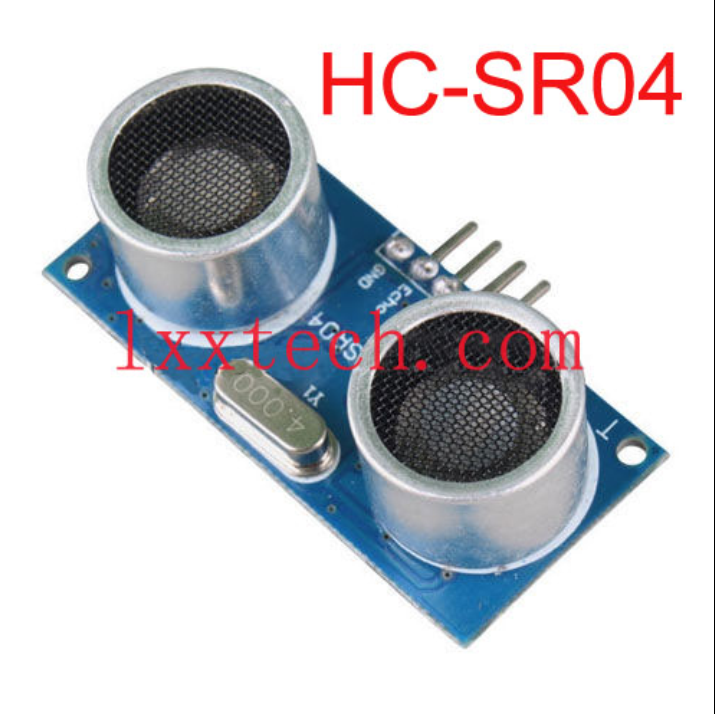

HC-SR04 to world Ultrasonic Wave Detector Ranging Module HC-SR04 HCSR04 Distance Sensor

 HC-SR04 to world Ultrasonic Wave Detector Ranging Module HC-SR04 HCSR04 Distance Sensor factory  HC-SR04 to world Ultrasonic Wave Detector Ranging Module HC-SR04 HCSR04 Distance Sensor factory  HC-SR04 to world Ultrasonic Wave Detector Ranging Module HC-SR04 HCSR04 Distance Sensor factory

Large Image:HC-SR04 to world Ultrasonic Wave Detector Ranging Module HC-SR04 HCSR04 Distance Sensor

Product Details:

Place of Origin: CHINA
Brand Name: LXXTECH
Model Number: LXX-F0001
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:
Price: Good price
Delivery Time:
Payment Terms: TT ,paypal,ESCROW
Supply Ability:
Detailed Product Description



HC-SR04 to world Ultrasonic Wave Detector Ranging Module HC-SR04 HCSR04 Distance Sensor

Module main technical parameters:

     1.Working Voltage : 5V(DC)

     2.Static current: Less than 2mA.
     3.Output signal: Electric frequency signal, high level 5V, low level 0V.
     4.Sensor angle: Not more than 15 degrees.
     5.Detection distance: 2cm-450cm.
     6.High precision: Up to 0.3cm
     7.Input trigger signal: 10us TTL impulse
     8.Echo signal : output TTL PWL signal

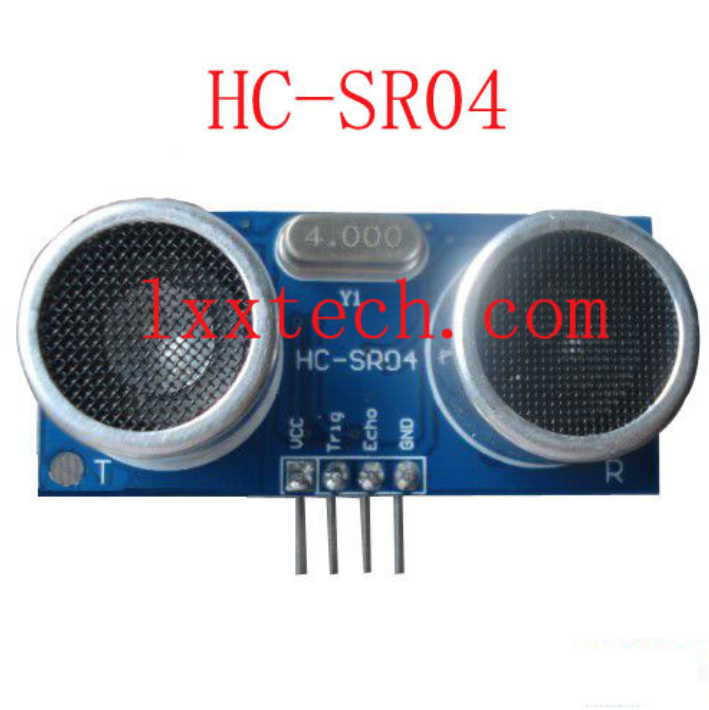

Mode of connection:


    1.VCC

    2.trig(T)
    3.echo(R)
    4.GND


Use method:


Supply module with 5V, the output will be 5V while obstacle in range, or 0V if not.The out pin

 of this module is used as a switching output when antitheft module, and without the feet when
 ranging modules.

Note : the module should be inserted in the circuit before been power, which avoid producing

 high level of misoperation;if not, then power again.


Module Working Principle:

 1.Adopt IO trigger through supplying at least 10us sequence of high level signal.
2.The module automatically send eight 40khz square wave and automatically detect whether receive
 the returning pulse signal.
3.If there is signals returning, through outputting high level and the time of high level
 continuing is the time of that from the ultrasonic transmitting to receiving. Test distance =
 (high level time * sound velocity (340M/S) / 2.



Note : This module is not suitable to connect with electric power, if you need to connect this
 module with electronic power,then let the GND terminal of this module to be connected
 first,otherwise, it will affect the normal work of the module
