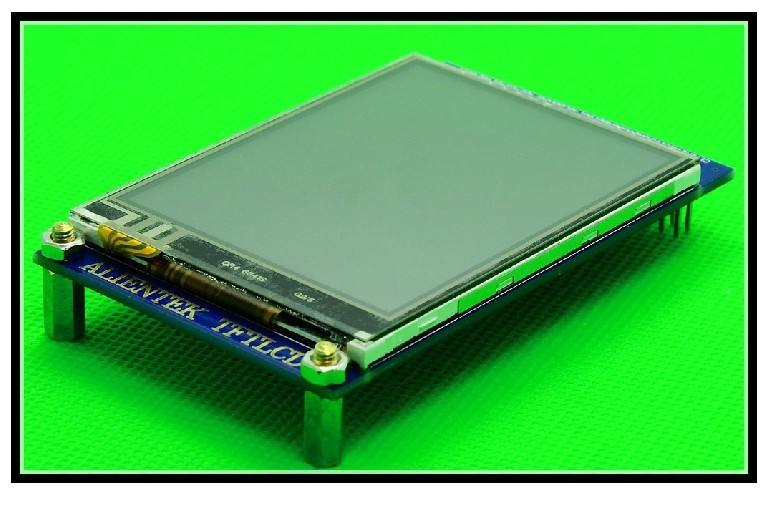

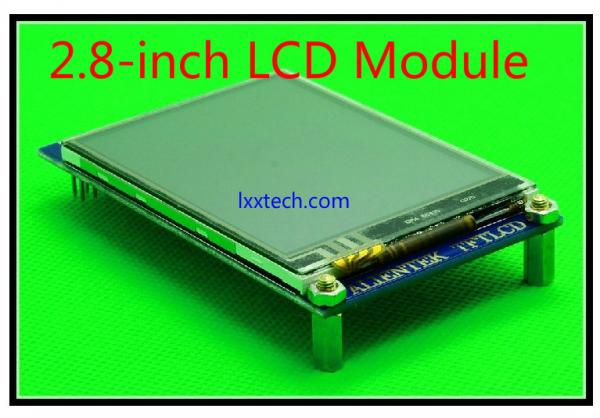

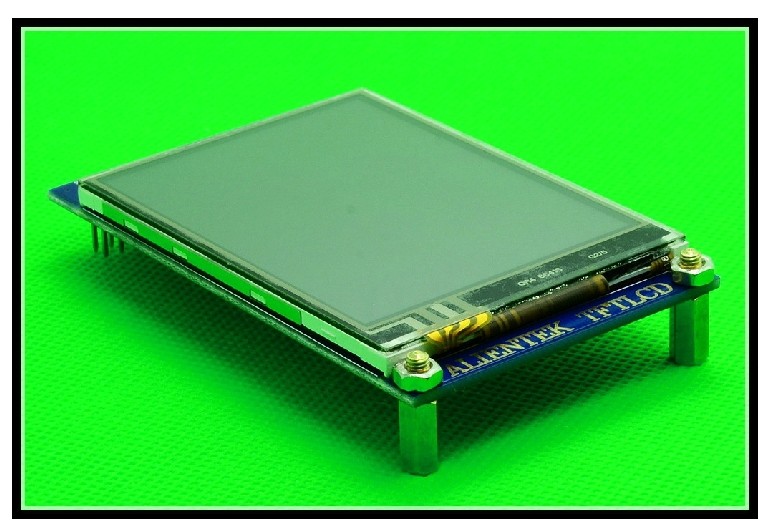

ALIENTEK 2.8-inch LCD color TFT LCD module with touch screen (STM32 development board accessories)

 ALIENTEK 2.8-inch LCD color TFT LCD module with touch screen (STM32 development board accessories) factory  ALIENTEK 2.8-inch LCD color TFT LCD module with touch screen (STM32 development board accessories) factory  ALIENTEK 2.8-inch LCD color TFT LCD module with touch screen (STM32 development board accessories) factory

Large Image:ALIENTEK 2.8-inch LCD color TFT LCD module with touch screen (STM32 development board accessories)

Product Details:

Place of Origin: CHINA
Brand Name: LXXTECH
Model Number: LXX-0567
Certification:

Payment & Shipping Terms:

Minimum Order Quantity: 5
Price: Good price
Delivery Time:
Payment Terms: TT ,paypal,ESCROW
Supply Ability:
Detailed Product Description

ALIENTEK 2.8-inch LCD color TFT LCD module with touch screen (STM32 development board accessories)

Module Introduction:




      ALIENTEK TFTLCD module is a universal TFTLCD modules using the new LCD module plus tempered glass touch screen, no cottage icon, super good quality, the module has the following features:



1,2.4 '/ 2.8' screen optional two sizes (2.8 inches described in this page).
2,320 × 240 resolution.
3,16-bit color (65,000 colors) display support.
4, tempered glass touch screen (resistive screen), durable.

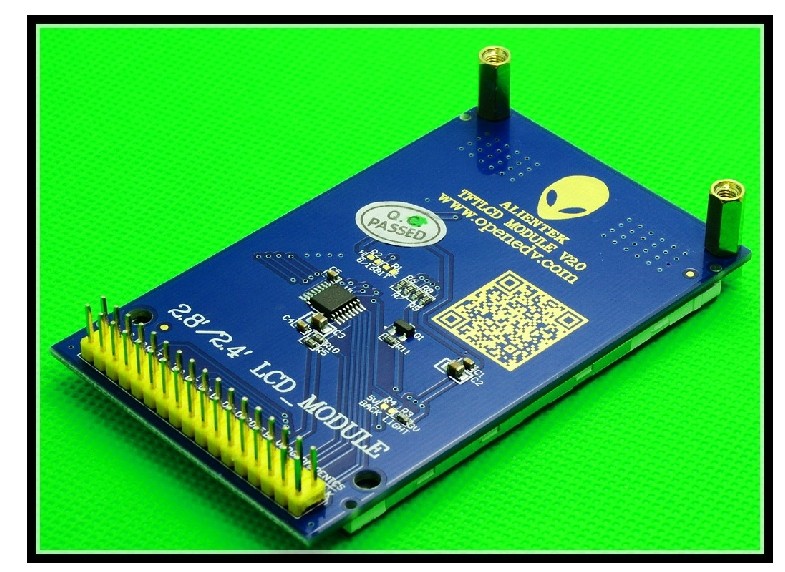

5, using a custom yellow gold plated copper pin, beautiful and durable.

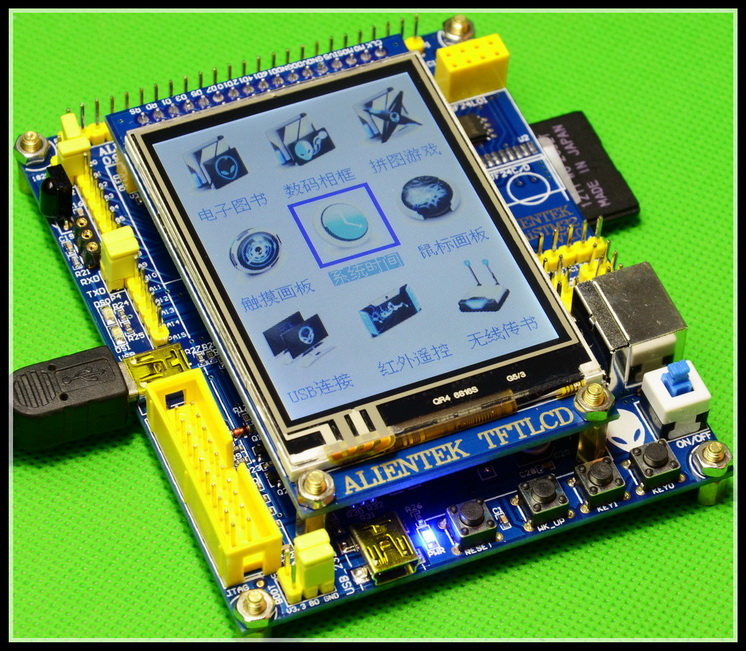

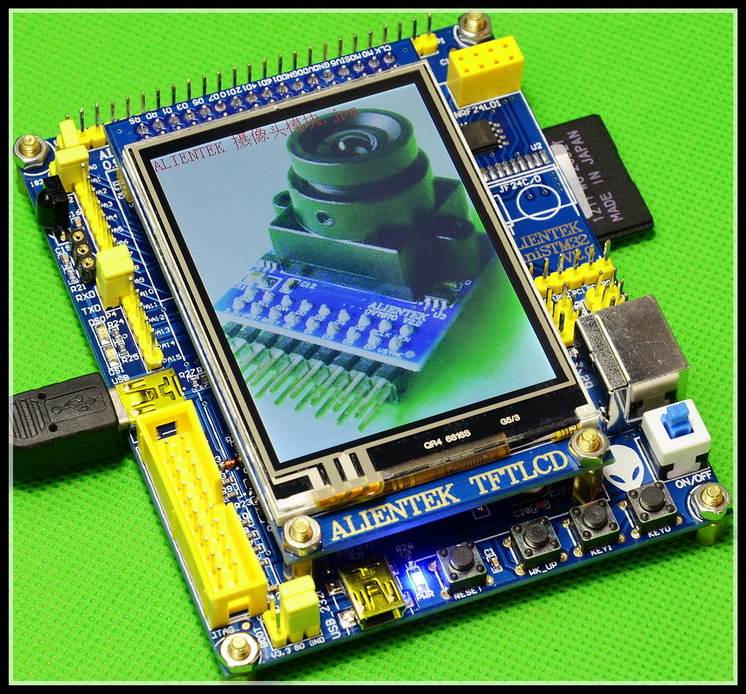

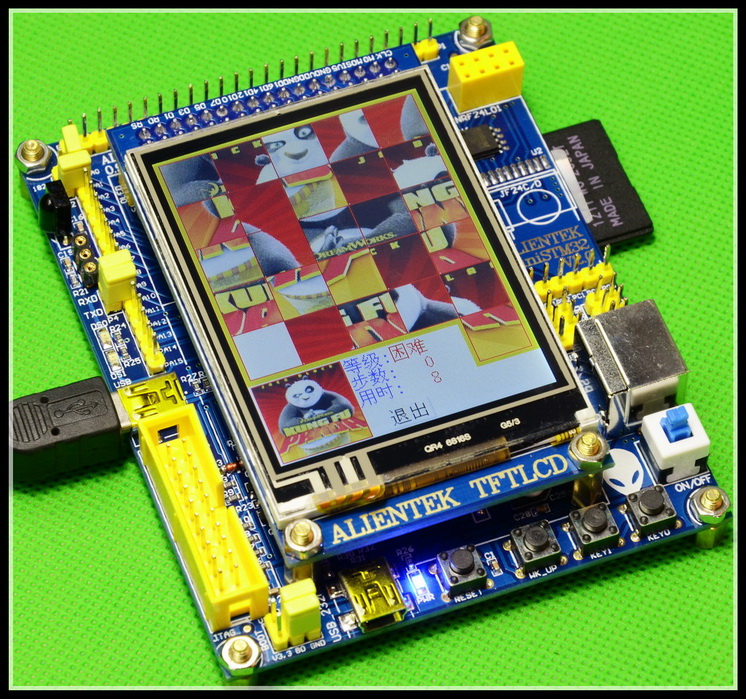

6, generic interface that can be used ALIENTEK whole series development board.


2.8-inch LCD Module Specification:

1, LCD Size: 2.8 inch
2, Display area: 57.6mm * 47.2mm
3, the driver IC: ILI9341
4, Resolution: 320 * 240 (RGB)
5, Color Depth: 16-bit (65K colors)
6, the working voltage: 3.3V
7, backlight voltage: 3.3V (default) / 5V
8, touch screen type: resistive, tempered glass touchscreen

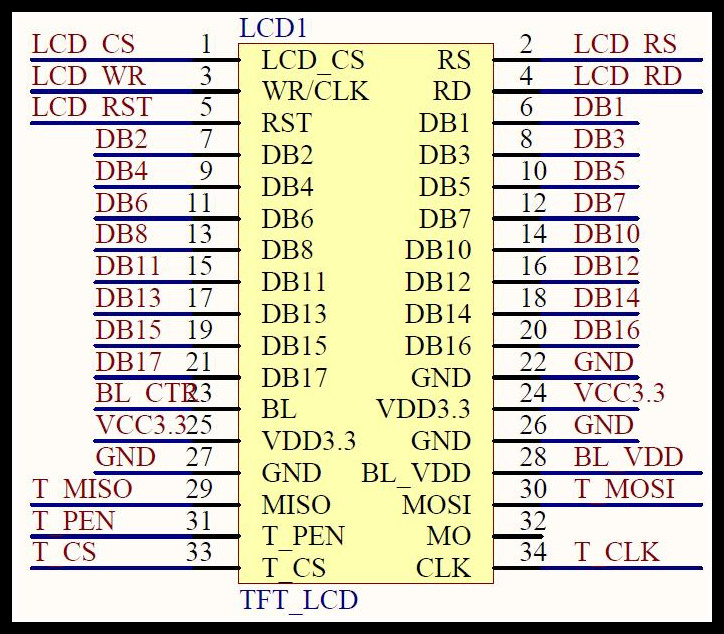

9, Interface: 16, 8080/6800 Parallel
10, the module size: 51mm * 82.6mm
