stm32f103zet6 core board , arm developme...

stm32f103zet6 core board , arm development board , cortex-M3

 stm32f103zet6 core board , arm development board , cortex-M3  factory  stm32f103zet6 core board , arm development board , cortex-M3  factory  stm32f103zet6 core board , arm development board , cortex-M3  factory

Large Image:stm32f103zet6 core board , arm development board , cortex-M3

Product Details:

Place of Origin: CHINA
Brand Name: LXXTECH
Model Number: LXX-0568
Certification:

Payment & Shipping Terms:

Minimum Order Quantity: 5
Price: Good price
Delivery Time:
Payment Terms: TT ,paypal,ESCROW
Supply Ability:
Detailed Product Description

stm32f103zet6 core board , arm development board , cortex-M3


Basic parameters :

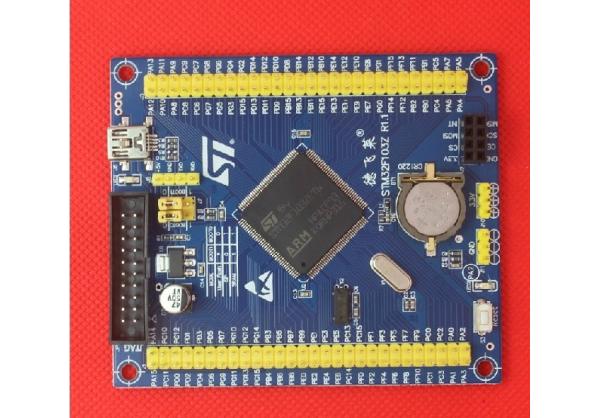

PCB size : 85x75mm

Chip Pin Count : 144P

Leads Pins : 112p


STM32F103ZE parameters

STM32F103ZE memory
Program Memory Type    Flash
Prog. (Bytes)      512 K
RAM (Bytes)      64 K

STM32F103ZE performance parameters
Operating Frequency     72 MHz
16-bit timer     4
SPI      3
I ² S    2
I ² C         2
USART         5
USB            1
CAN           1
SDIO             1
GPIOs            112
Pin            144
Voltage (V)           2 to 3.6

STM32F103ZE package and pin
LQFP144


Hardware features:

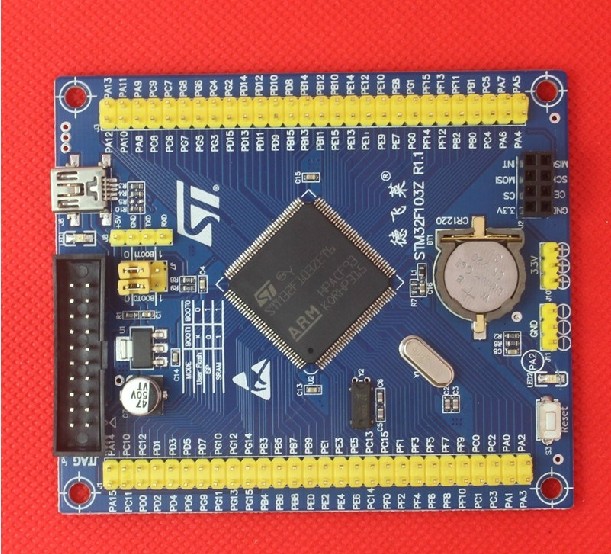

   1, all pin leads, and marked with the port number for easy expansion

   2, BOOT cap jump start mode switching , the use of official development board mode ST

   3,1 -way power indicator

   4,1 road work light for summary presentation

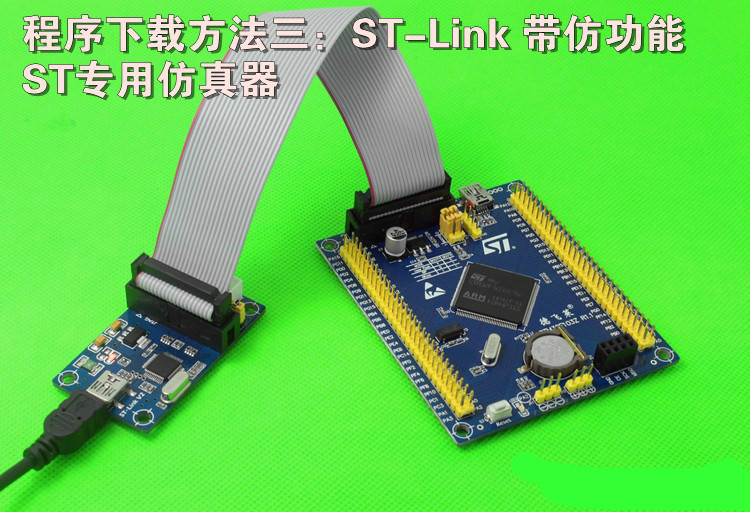

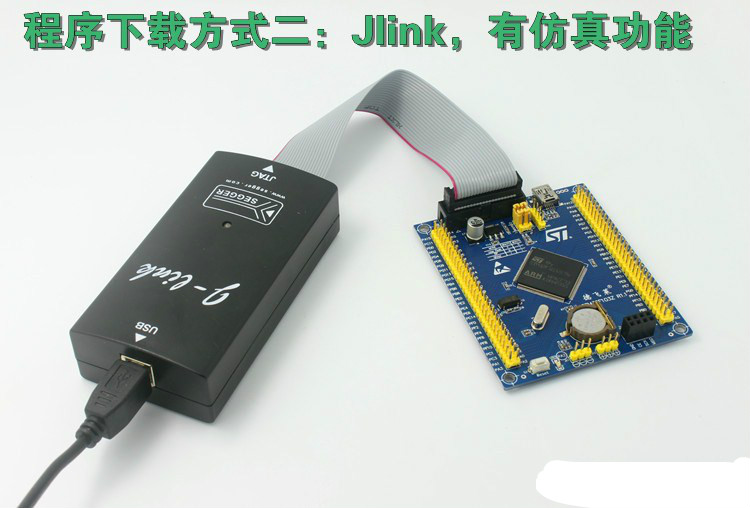

   5, the standard 20-pin JTAG socket , you can connect ST link, jlink etc.

   6,8 M crystal work , the official parameters of the chip internal PLL frequency multiplier , the maximum chip frequency 72M

   7,32768 Hz watch crystal , black 4 -pin crystal oscillator stable than the cylinder .

   8, CR1220 battery holder a clock with battery backup.

   9,1 reset button , external reset feature provides hardware

   10 pin power extension provides 3.3V power output, convenient to the peripheral power

   11 , a ASM1117-3.3 regulator provides 3.3V power supply working motherboard

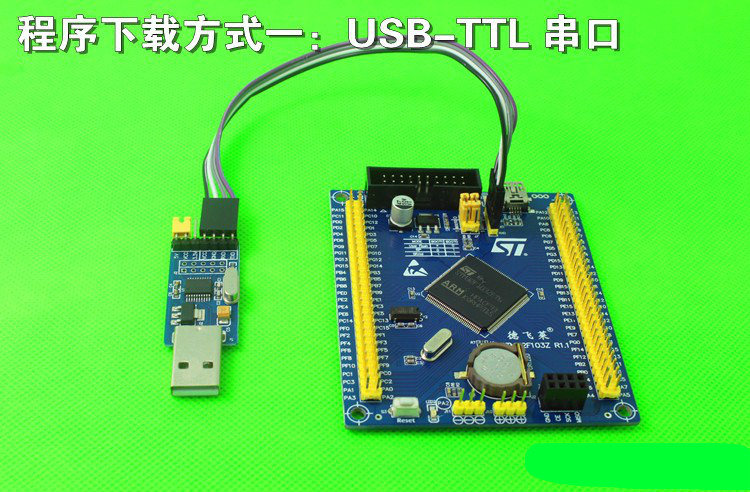

   12,1 external pin serial port , you can directly download the program module with serial TTL voltage level of 3.3V, 5V can be

   13,4 weeks 4 3.5mm mounting holes for easy fixing

   14 , a miniUSB port , you can use the port to board power supply.

   15 , the wireless communication module RF24L01 socket, can be equipped with a wireless module.
