12V relay module plus tilt sensor, tilt dumping protection devices, alarm trigger module

Uses:

Various angle sensor , tilt sensor dumping sensor outputs with relays, directly connected to the high current loads , can be applied to a variety of instruments and equipment dumping protection , appliance dumping protection.

Module Features :

1 , the Company's highly sensitive sensor default angle sensor SW-520D

The angle sensor can be used to achieve various different functions , a 45- degree angle sensor , the angle sensor 90 , an angle sensor of any optional

2, the comparator outputs directly drive relays can be connected to 220V AC or other equipment ;

3 , adjust the sensitivity of digital distribution ;

4, with four 3mm bolts holes for easy installation

5, the output terminal blocks with blue , easy wiring

Module for use:

1 from the initial state of the relay depends on the tilt sensor turns on and off , when turned on, the relay , often beginning with a common terminal connected, the tilt sensor is disconnected , the relay off , the common and normally closed end turns ;

2 tilt sensor in the initial state are generally installed in a normally open state, the tilt sensor and the relay is not in working condition and prolong life ;

3 . Default SW-520D sensor for detecting objects dumped 90 degrees , for other angles , please consult the treasurer .

Electrical parameters :

Supply voltage : 12VDC

Current : more than 100mA

Load : 250V 10A AC or 30V 10A DC

Shipping list :

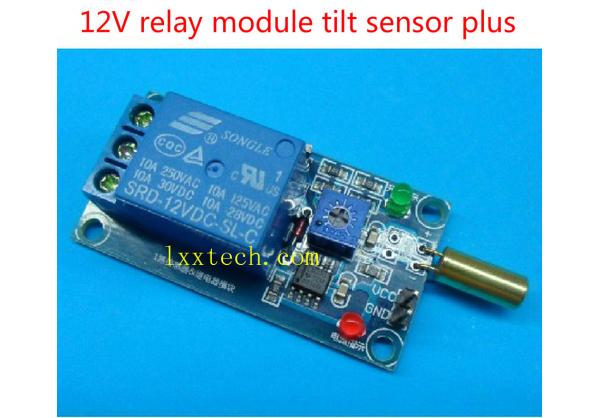

12V version of the tilt sensor plus a relay module with SW-520D tilt sensor

Sensor plus relay module wiring diagram:

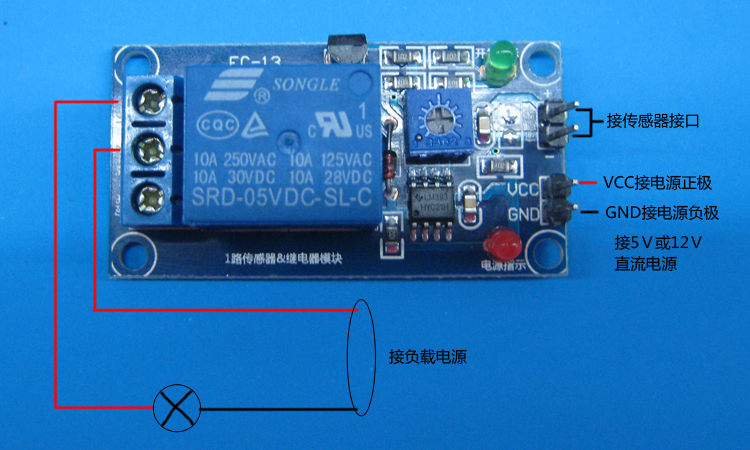

When the tilt sensor turns on the lamp voltage, time off, will not light (shown only to illustrate the wiring method) for high voltage connection.

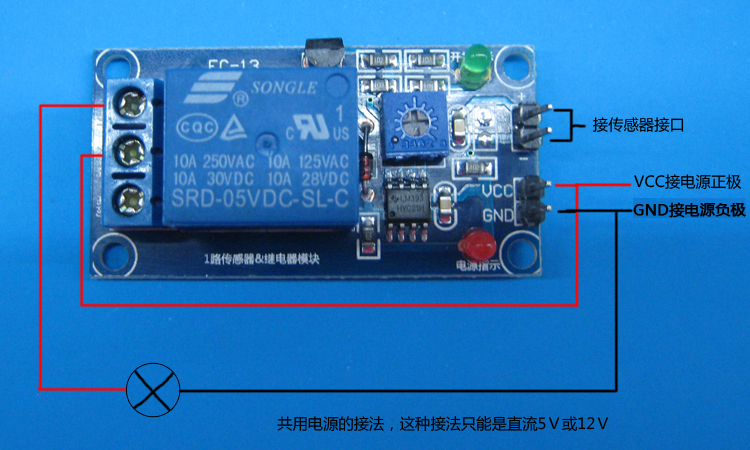

A shared module power connection, tilt sensor turns on the lamp voltage, disconnect, will not light (shown only explanation wiring methods).
