Relay&Relay Module 12V soil moisture sensor controller module, automatic watering below the humidity starts

: Large Image:Relay&Relay Module12V soil moisture sensor controller module, automatic watering below the humidity starts

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0278
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

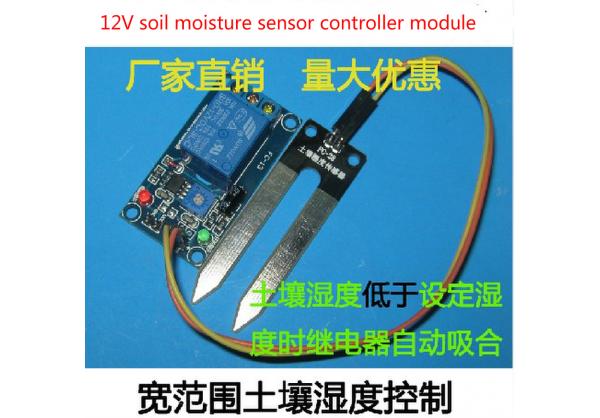

12V soil moisture sensor controller module, automatic watering below the humidity starts

Uses:

By adjusting potentiometer control soil moisture threshold , can automatically vegetable garden , garden automatic watering, soil moisture control household pots , a variety of electronic competitions , with power relay , can control high current devices , less than the set humidity automatically start relay , more than the set humidity automatically disconnected , and a delay function to resolve without delay the critical state relay humidity kept flashing the problem is a simple and practical soil moisture control system.

Product description:

1 using the company's high-quality soil sensors do detect soil moisture , the surface of nickel plated , has widened the induction area can improve conductivity, prevent contact with the soil rust problems and prolong life ;

2.When two products can control a wide range of soil moisture , the corresponding threshold by adjusting potentiometer control , humidity is below the set value, start relay , while higher than the set value, the relay is disconnected ;

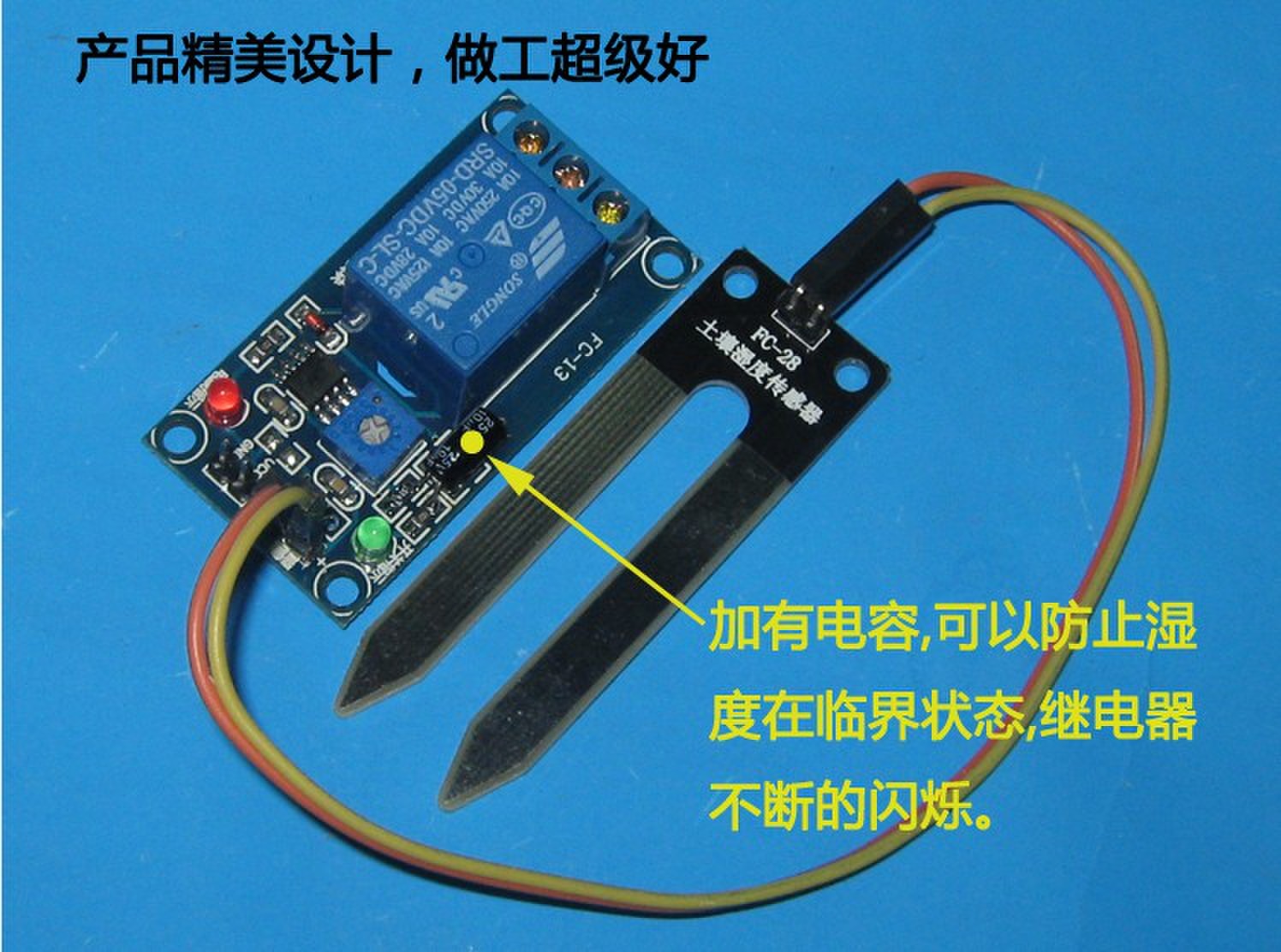

3 products with the delay function , delay of 3-5 seconds , when the humidity is detected in the critical state, the relay will not blink , flicker occurs ;

4 high-quality products using Songle relay can withstand 1500W load , to meet the requirements of most people ;

5 products with power indicator and relay instructions ;

Electrical parameters :

Supply voltage : 12VDC Input Current : more than 100ma

Load : 250V 10A AC or 30V 10A DC ( below current in this range can be used)

Module for use:

1 sensor for detecting moisture in the soil ;

2 module is the blue potentiometer to adjust the threshold for soil moisture , clockwise adjustment, control humidity will be bigger, smaller counter-clockwise ;

3 due to the module with delay function in the regulation of humidity values , adjusted once every 5-8 seconds to wait around to see if changes in the relay , the green LED lights also have a corresponding change until transferred to meet the requirement.

4 Product wiring information , refer to the picture below .

Shipping list :

Soil moisture sensor control module and a set of soil , 20cm long line two DuPont
