Electronic Modules 2-way flame sensor module, infrared receiver sensor module, the source of fire detection sensors

: Large Image:Electronic Modules2-way flame sensor module, infrared receiver sensor module, the source of fire detection sensors

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0205
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

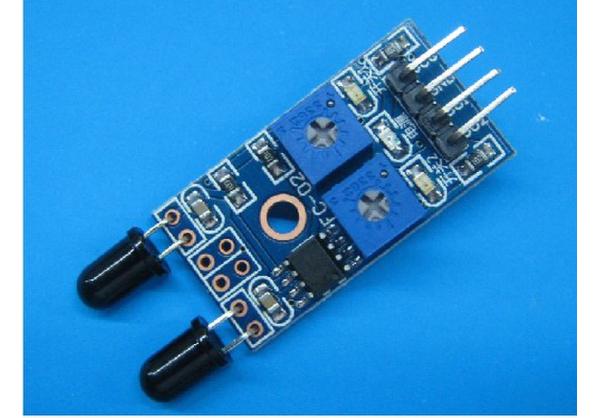

2-way flame sensor module, infrared receiver sensor module, the source of fire detection sensors

Purpose:

Various flame, fire detection, two outputs, can simultaneously control two road.

Module Features:

1, the flame can be detected at 760 nm or wavelength range of 1100 nm light source, the test flame lighter distance of 80cm, the greater the flame, the greater the distance the test 2, the detection angle of 60 degrees, particularly sensitive to the flame spectrum

3, sensitivity adjustable (shown in blue digital potentiometer adjustment)

4, the comparator output signal clean waveform is good, driving ability, than 15mA.

5, power distribution positioner sensitivity adjustment

6, Operating Voltage 3.3V-5V

7, the output format: Digital switching output (0 and 1)

8, a fixed bolt holes for easy installation

9, small plates PCB size: 3.2cm x 1.7cm

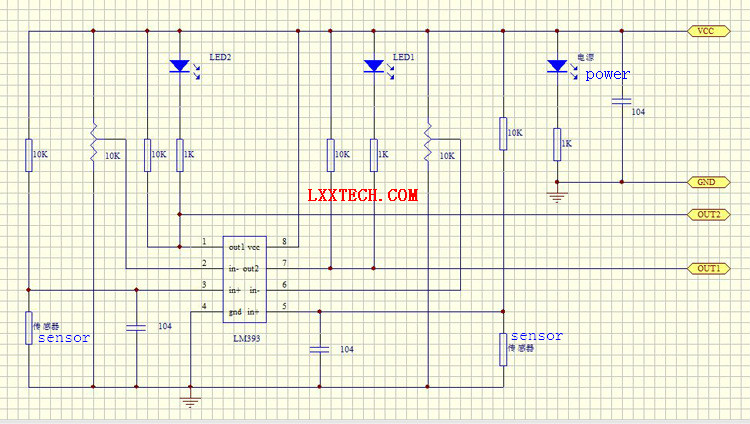

10, using a wide voltage LM393 comparator

Module for use:

1, the flame flame sensor most sensitive to ordinary light is also a reaction, generally used as fire alarm and other purposes.

2, a small panel output interface can be directly connected with the microcontroller IO port

3, the sensor and the flame to maintain a certain distance, so as not to damage the sensor temperature
