Electronic Modules 2-way module photosensitive photodiode light detection sensor module Smart car light control switch

: Large Image:Electronic Modules2-way module photosensitive photodiode light detection sensor module Smart car light control switch

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0167
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	30
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

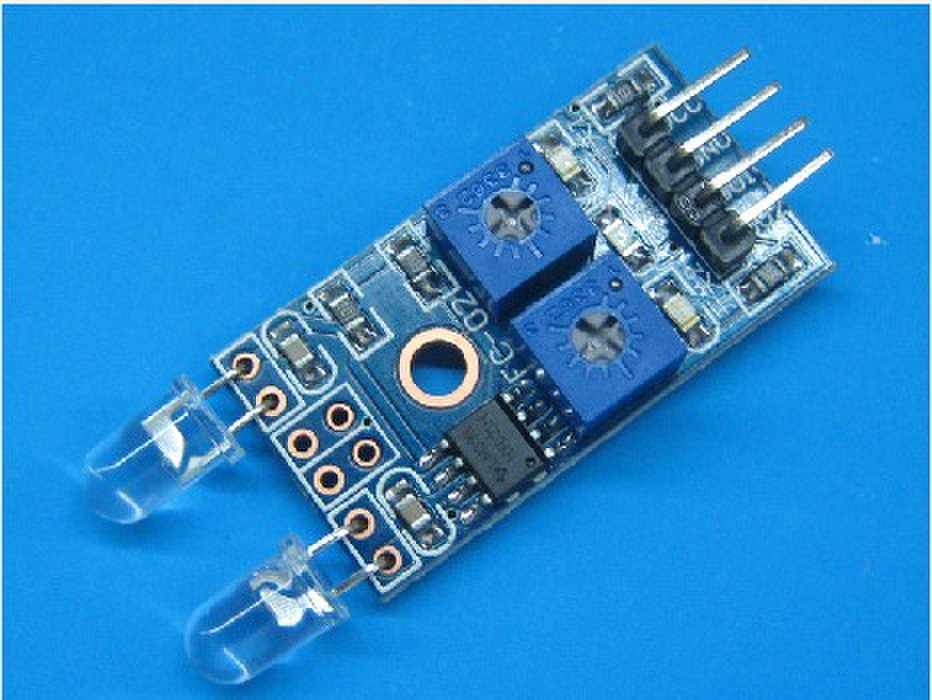

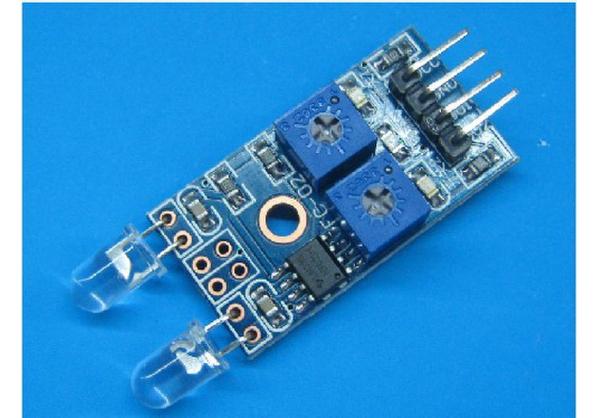

2-way module photosensitive photodiode light detection sensor module Smart car light control switch

Purpose:

Variety of light brightness detection , 2-way detection can be two simultaneous control ( compared with photosensitive resistance , better directionality that can sense the direction of the light source fixed )

Module Features :

1, photodiode sensor

2 , the comparator output signal clean waveform is good , driving ability, than 15mA.

3 , distribution positioner sensitivity adjustment

4, Working voltage 3.3V-12V

5, the output format : Digital switching output ( 0 and 1 )

6, with bolt holes for easy installation

7 , a small board PCB size : 3.2cm x 1.7cm

8 , using a wide voltage LM393 comparator

Module for use:

A photosensitive diode module most sensitive to environmental light , generally used to detect the brightness of the ambient light . In most cases photoresistor sensor module with GM, the difference between the two is that the photodiode module directivity better, you can perceive a fixed direction of light.

2 , the module brightness of ambient light is less than the threshold value, the output high, when the outside ambient light level exceeds the threshold , the module output low ;

3 , the output can be directly connected with the microcontroller through the microcontroller to detect high and low , thereby detecting changes in ambient light intensity ;

4 , the output can directly drive OUR relay module , which can be composed of a light control switch ;

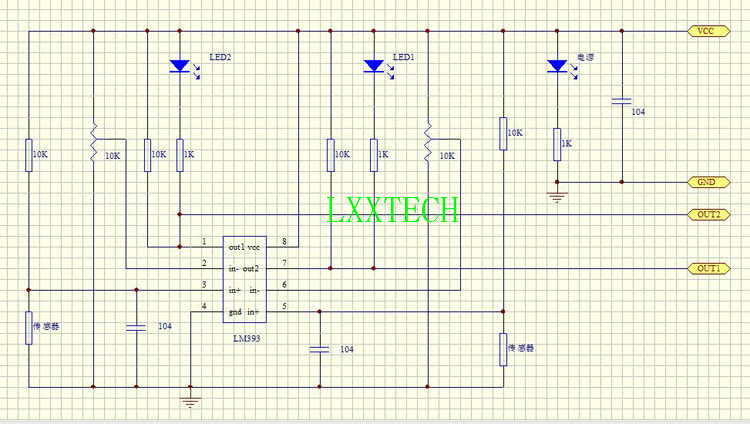

Schematic：

Product Tag : 2-way photodiode module
