Relay&Relay Module 2-way normally closed relay module plus the shock sensor module, multi-function module combo

: Large Image:Relay&Relay Module2-way normally closed relay module plus the shock sensor module, multi-function module combo

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0301
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

Uses:

Various alarm sensor module , earthquake alarm, motorcycles, electric bicycle alarm is triggered , two -output control, with relay output , you can do two conditions trigger directly connected with AC power products.

Module Features :

1, using the company's normally closed type vibration sensor SW-420;

2, the comparator outputs directly drive relays can be connected to 220V AC or other equipment ;

3 , adjust the sensitivity of digital distribution ;

4 , two -way sensor interface can be accessed by two different sensors , to meet the two conditions corresponding control related products ;

5 , has four 3mm bolts holes for easy installation

6 , two relay outputs either separately control can also be connected in series , to trigger both conditions .

Electrical parameters :

Supply voltage : 5VDC

Current : more than 150mA

Load : 250V 10A AC or 30V 10A DC

Module for use:

When there is no vibration sensors vibration sensor , relay , the green light , which often start with a common terminal is turned on , when there is vibration sensor to relay off , this time, the green light is off , the relay into a public terminal and the normally closed terminal connect

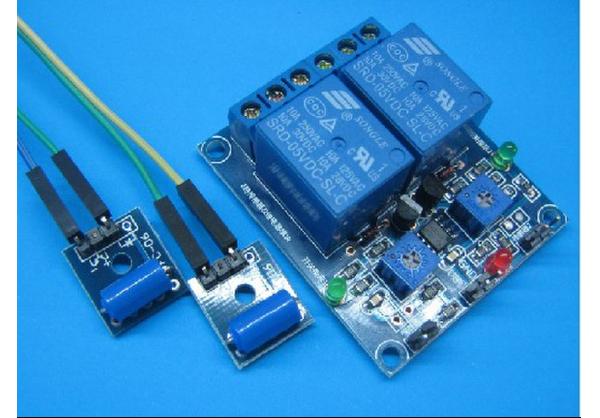

Shipping list :

2-way sensor plus a relay module ,

Vibration sensor with a small plate 2 ( includes two positioning of small plates, four 20cm DuPont lines, two normally closed shock sensor )

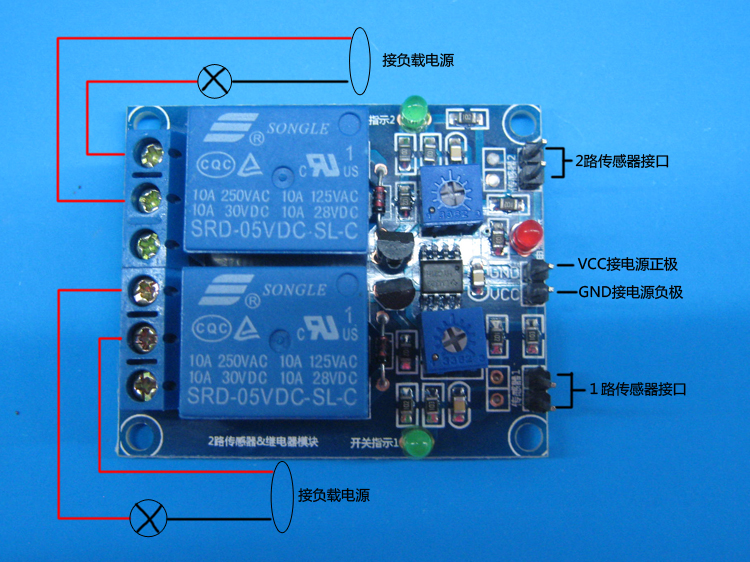

2-way sensor plus relay module wiring diagram:

Product Tag : 2-way normally closed relay module plus the shock sensor module
