Relay&Relay Module 2-way photoresistor sensor module plus relay module, two-rays to detect light control switch

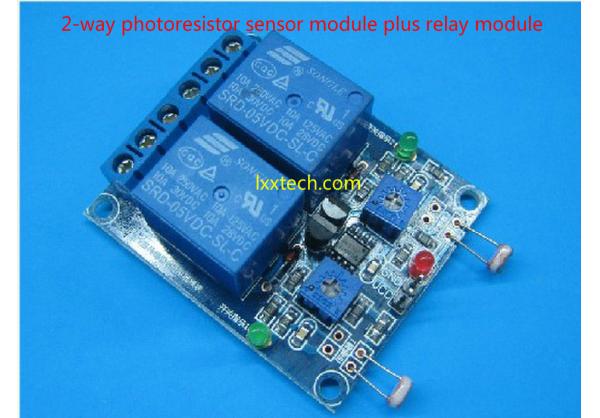

: Large Image:Relay&Relay Module2-way photoresistor sensor module plus relay module, two-rays to detect light control switch

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0294
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

Uses:

2-way light detection , brightness detection, by detecting the brightness potentiometer adjustable valve point , comes relays, do all kinds of brightness detection switch , you can control all kinds of lights, turn on automatically at night , during the day and automatically turns off and the vehicle control and automation products equipment. Both sensors also can trigger the sensor , two conditions , the output end of the series ( with door ) , either of two conditions trigger the output end in parallel ( or gate ) , two independent control of three control methods , direct access AC power products.

Module Features :

1, using the intensity of the light sensitive sensor sensing resistors , relays comes directly control the load

2 , power bits adjust the sensitivity by adjusting potentiometer, setting the threshold to start the relay , when this threshold lights , relay modules , when this dark threshold relay release , so normally open to public end of the day is to control the switch , normally closed to public access terminal is to control the night switch.

3, the working voltage of 5V or 12V, before making notes or comments , or be sent to 5V ;

4, the output forms: direct access or DC30V 10A AC 220V 10A load

5 with 4 fixing bolt holes for easy installation

6, small PCB board size : 5cm x 2.6cm

7 , using a wide voltage LM393 comparator

Electrical parameters :

Supply voltage : 5VDC or 12VDC ( photographed message , otherwise the default hair 5V Package )

Current : more than 200mA

Load : 250V 10A AC or 30V 10A DC

Module for use:

1, the photosensitive resistor module most sensitive to ambient light , generally used to detect the brightness of ambient light.

2 , when the module is in the ambient light exceeds a set threshold, the relay , often beginning with a common terminal connected, when the ambient light is below a set threshold, the relay off , the common terminal and the normally closed terminal connected;

3 , common, normally open, normally closed three ports is equivalent to a dual-control switch, relay coil power , often beginning with a common terminal conduction, when there is no electricity , common and normally closed terminal conduction ;

Shipping list :

2-way photoresistor plus a relay module with photoresistor

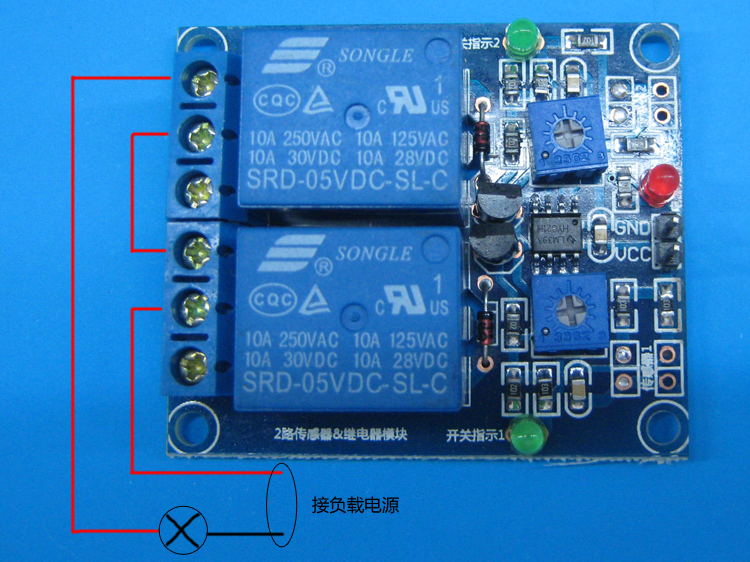

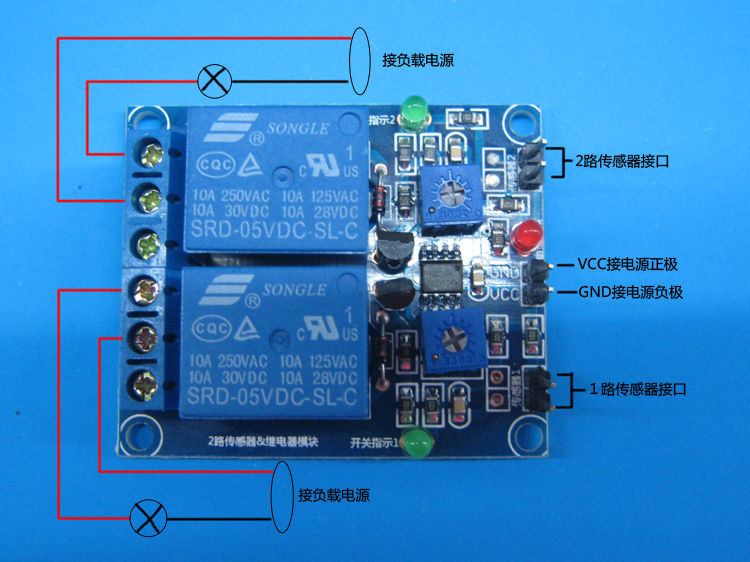

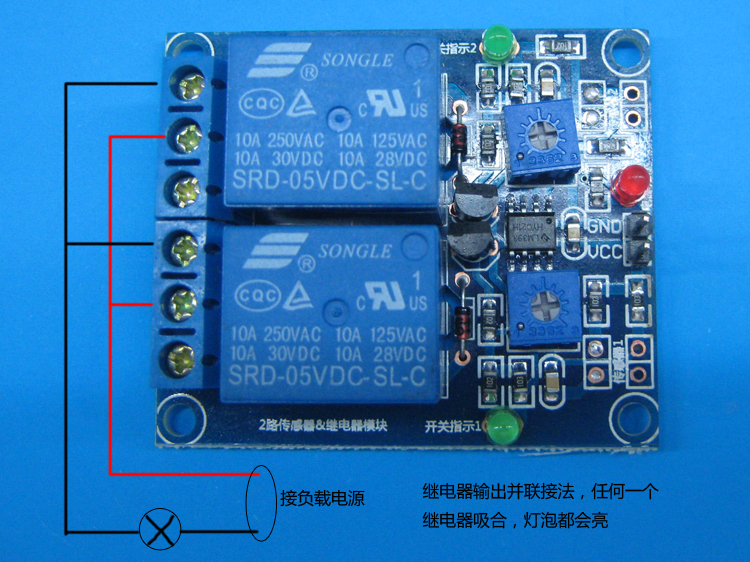

This module conventional wiring method
