Electronic Modules 2-way photosensitive sensor module Photoresistor photoresistor light detection module

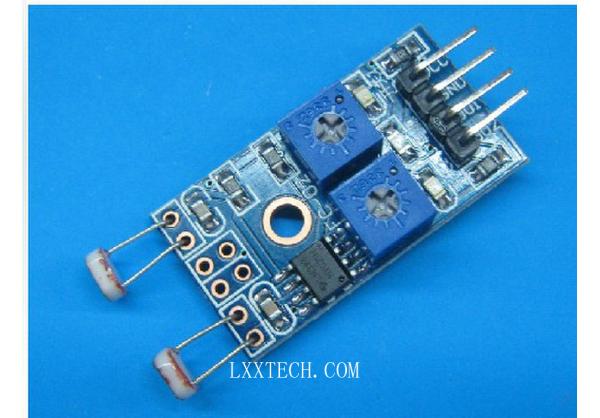

: Large Image:Electronic Modules2-way photosensitive sensor module Photoresistor photoresistor light detection module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0170
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	30
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

2-way photosensitive sensor module,Photoresistor photoresistor light detection module

Purpose:

Variety of light brightness detection, 2-way detection, can simultaneously control 2-way

Module Features:

1, using the photoresistor sensor

2, the comparator output signal clean waveform is good, driving ability, than 15mA.

3, distribution positioner sensitivity adjustment

4, Working voltage 3.3V-5V

5, the output format: Digital switching output (0 and 1)

6, with bolt holes for easy installation

7, a small board PCB size: 3.2cm x 1.7cm

8, using a wide voltage LM393 comparator

Module for use:

1, the photosensitive resistor module most sensitive to ambient light, generally used to detect the brightness of the ambient light.

2, the module brightness of ambient light is less than the threshold value, the output high, when the outside ambient light level exceeds the threshold, the module output low;

3, the output can be directly connected with the microcontroller through the microcontroller to detect high and low, thereby detecting changes in ambient light intensity;

4, the output can directly drive OUR relay module, which can be composed of a light control switch;

Shipping list:

2-way photoresistor sensor module 1, with two photoresistors
