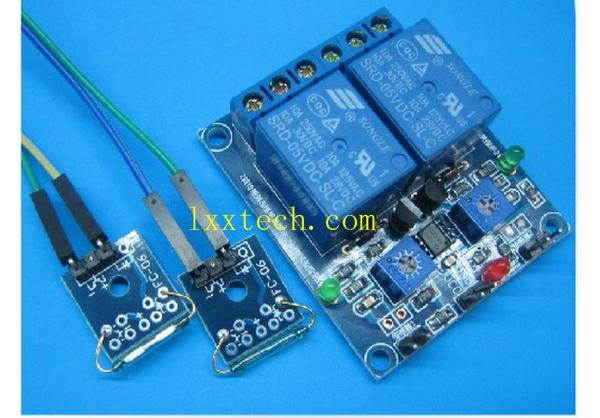

Relay&Relay Module 2-way reed sensor module relay module; combo magnetron magnetic reed switch module

: Large Image:Relay&Relay Module2-way reed sensor module relay module; combo magnetron magnetic reed switch module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0284
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

Uses:

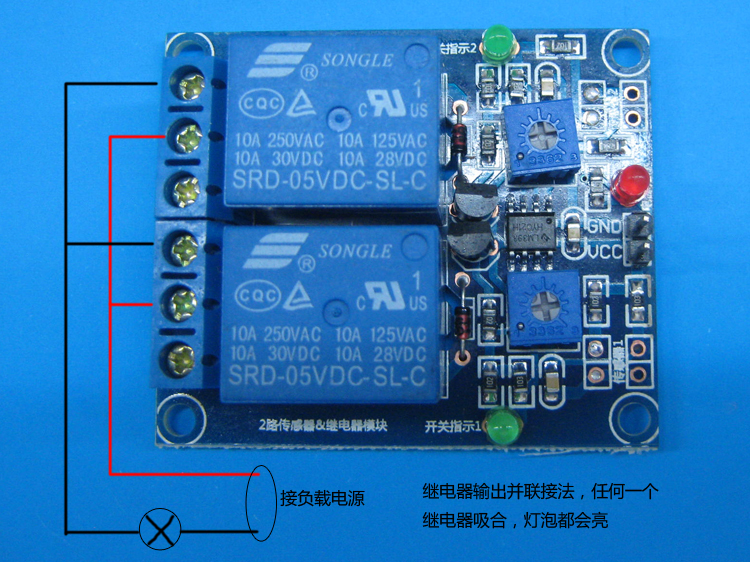

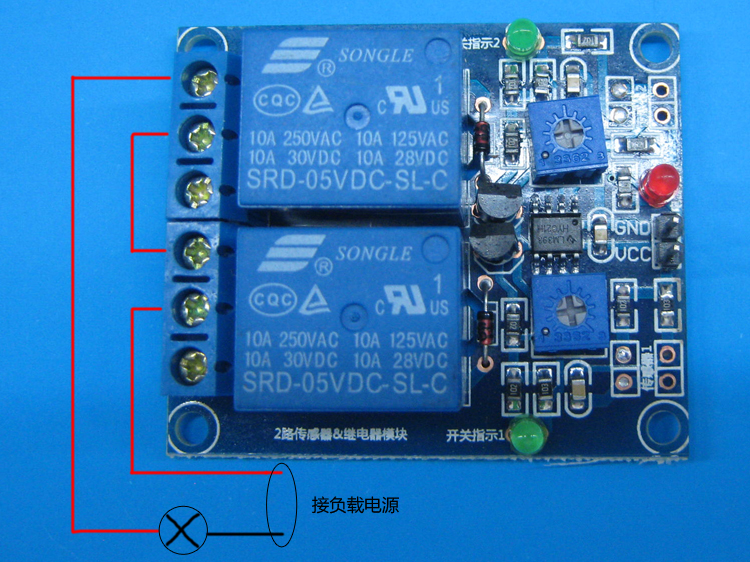

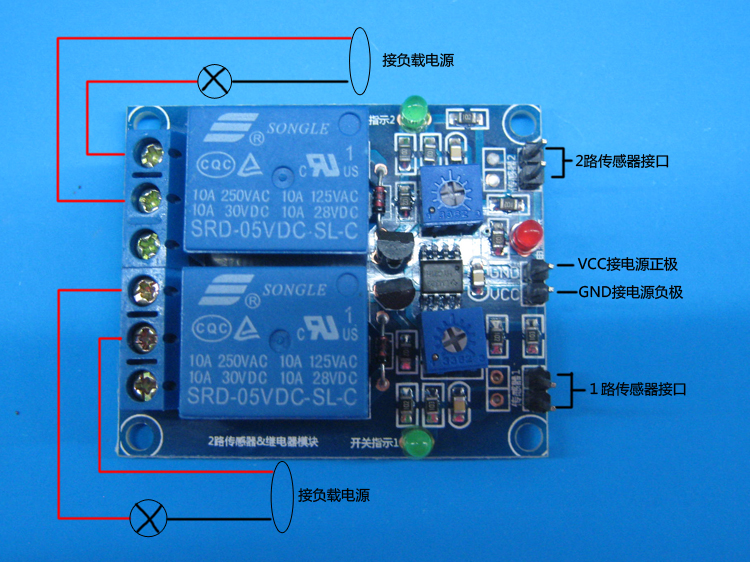

Door, window , gated detection, alarm trigger gating , PBX , photocopiers, washing machines, refrigerators , cameras, Xiaoduwangui , door , window magnetic , electromagnetic relays, electronic weighing, level meter , gas meter , water meter etc. have been in a very good application . 2-way magnetic detection , comes relays, sensors also do two sensors trigger two conditions , the output end of the series ( and doors ) , either of the two conditions is triggered , the output end in parallel ( or gate ) , two group of independent control three control methods , direct access AC power products.

Module Features :

1, imported normally open reed relay comes directly control the load

3 , the operating voltage 5V

4, the output forms: direct access or DC30V 10A AC 220V 10A load

5 with 4 fixing bolt holes for easy installation

6, small PCB board size : 5cm x 4.2cm

7 , using a wide voltage LM393 comparator

Electrical parameters :

Supply voltage : 5VDC

Current : more than 200mA

Load : 250V 10A AC or 30V 10A

Module for use:

1 Reed needs and with the use of magnets in magnetic induction to a certain time , the relay , often beginning with a common terminal is turned on , when no magnetic induction to relay disconnected, common and normally closed terminal turned on ;

2 reed and magnet sensing distance beyond insensitive or within 1.5cm of the phenomenon will be no trigger ;

3 , common, normally open, normally closed three ports is equivalent to a dual-control switch, relay coil power , often beginning with a common terminal conduction, when there is no electricity , common and normally closed terminal conduction ; would show guide state, relay , when there is no magnetic force , was disconnected.
