Detailed Product Description

2-way reed sensor module, the magnetic sensor module, magnetrons, magnetron module

Purpose:

PBX, photocopiers, washing machines, refrigerators, cameras , Disinfection cabinet , door , window magnetic , electromagnetic relays, electronic weighing , level meter, gas meter , water meter , etc. have been very good application. The two control modules .

Module Features :
1, imported normally open reed
2 , the comparator output signal clean waveform is good , driving ability, than 15mA.
3 , the working voltage 3.3V-5V
4, the output format : Digital switching output ( 0 and 1 )
5, with bolt holes for easy installation
6 , small plate PCB size : 3.2cm x 1.7cm
7 , using a wide voltage LM393 comparator

Reed features:
Reed is a dry reed for short, is a kind of passive electronic switching element contacts , has a simple structure , small size and easy control , etc., which is generally a sealed enclosure glass tubes are installed there are two elastic reed iron plate , also called rhodium metal filling with inert gas . Normally, in the tube is made from special materials two reeds are separated. When a glass tube close to the magnetic substance , the magnetic field lines under the action of two springs inside the tube is magnetized to attract each other in contact spring will pull together to make a circuit of the connected node communicates . External magnetic field disappears, two reeds separately because of their elasticity , the line also disconnected. Therefore, as a signal using a magnetic field to control circuit switching devices , reed tube may be used as a sensor , for counting , stop , etc. ( in the security system is mainly used for door and window production of magnetism ) , and also is widely used in a variety of communications devices. In practice, the commonly used control the two permanent magnets on the metal sheet or not , it is also called a " magnetron ."

Module for use:
1.reed and the magnet to be used in conjunction with the sensor to a certain force when the ON state will be presented , the module output is low, no magnetic force , an OFF state, the output is high, the reed sensing distance of the magnet within the 1.5cm beyond insensitivity or may not trigger the phenomenon ;
2.can be output module DO MCU I / O port directly connected through the microcontroller can detect the reed switch trigger state ;
3 relay output module DO IN terminal connected to form a high-power reed switch, direct control of high voltage.

Shipping list :

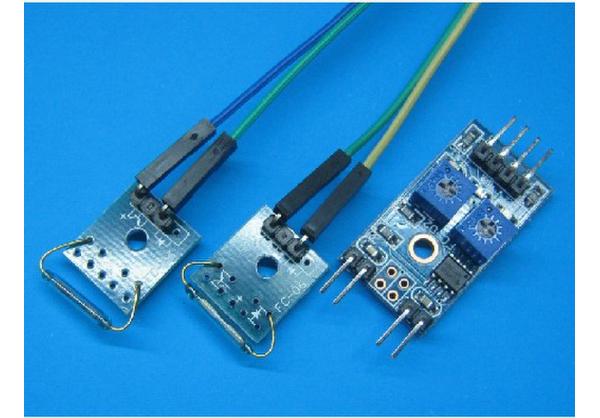

1pcs 2-way reed sensor module  , with reed 2 , 4 pcs 20cm DuPont line, locate the small PCB board .
