Relay&Relay Module 2-way relay module with opto isolation,Expansion board high level trigger 5V/9V/12V/24V

: Large Image:Relay&Relay Module2-way relay module with opto isolation,Expansion board high level trigger 5V/9V/12V/24V

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0247
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	30
Price:	good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

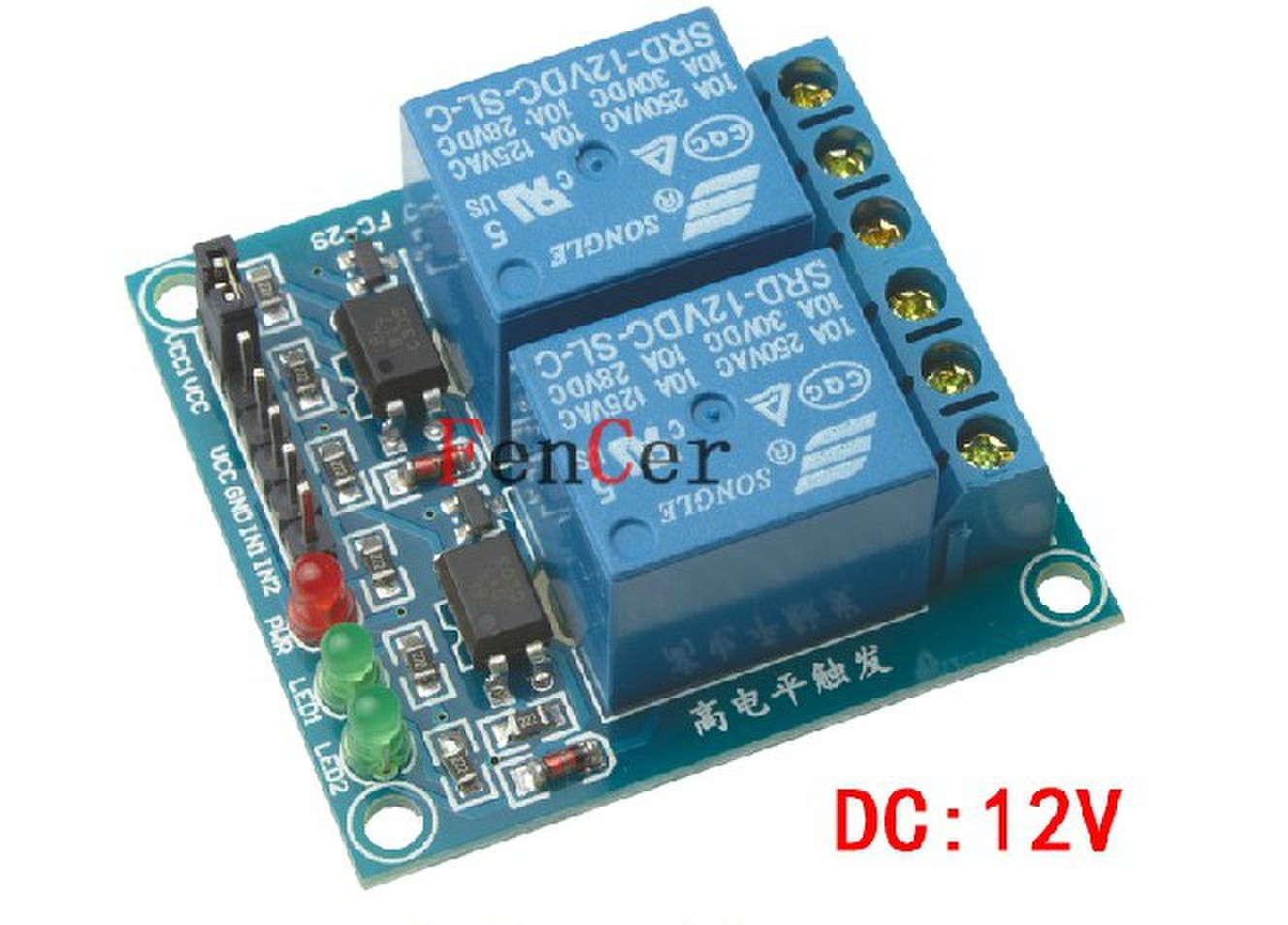

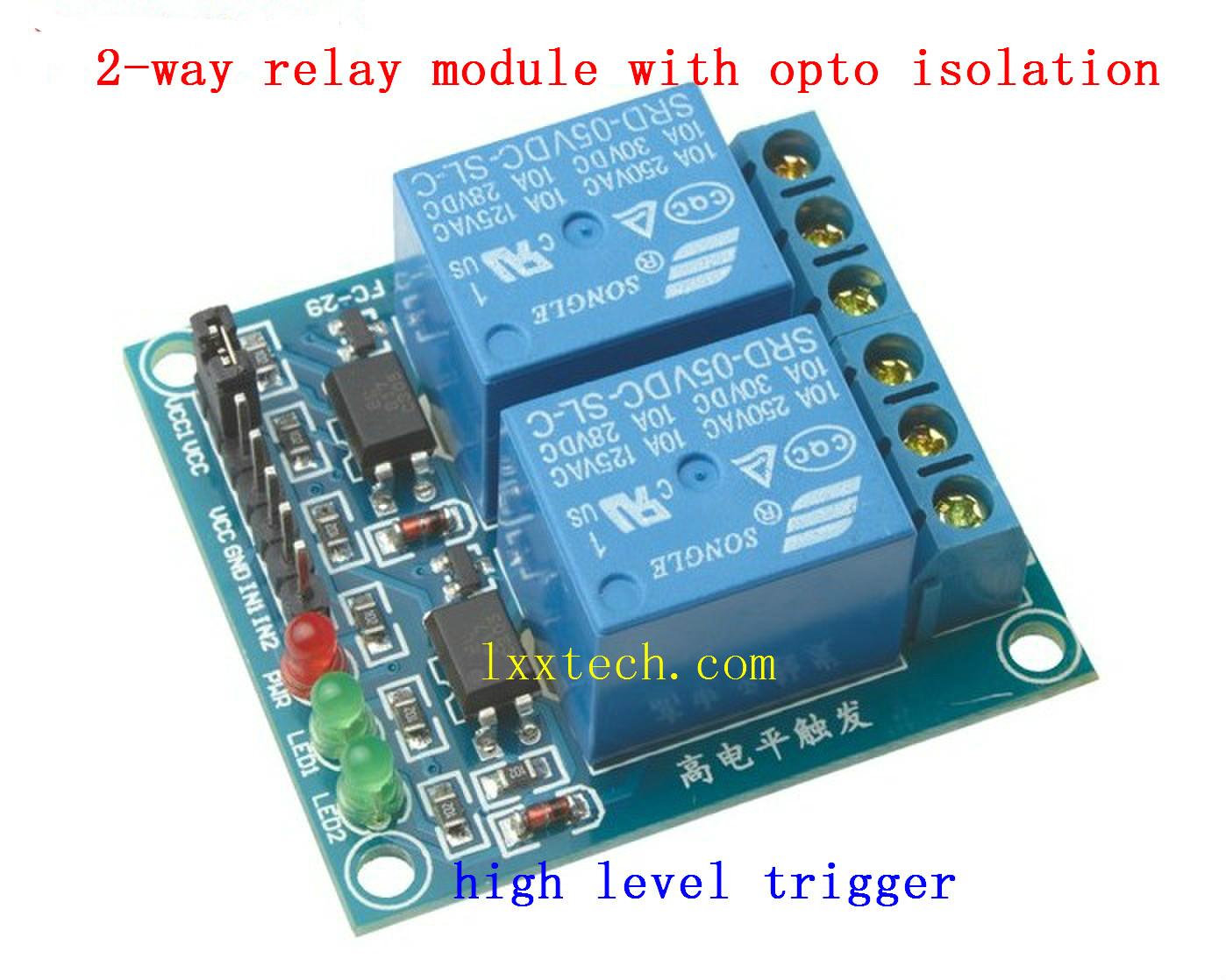

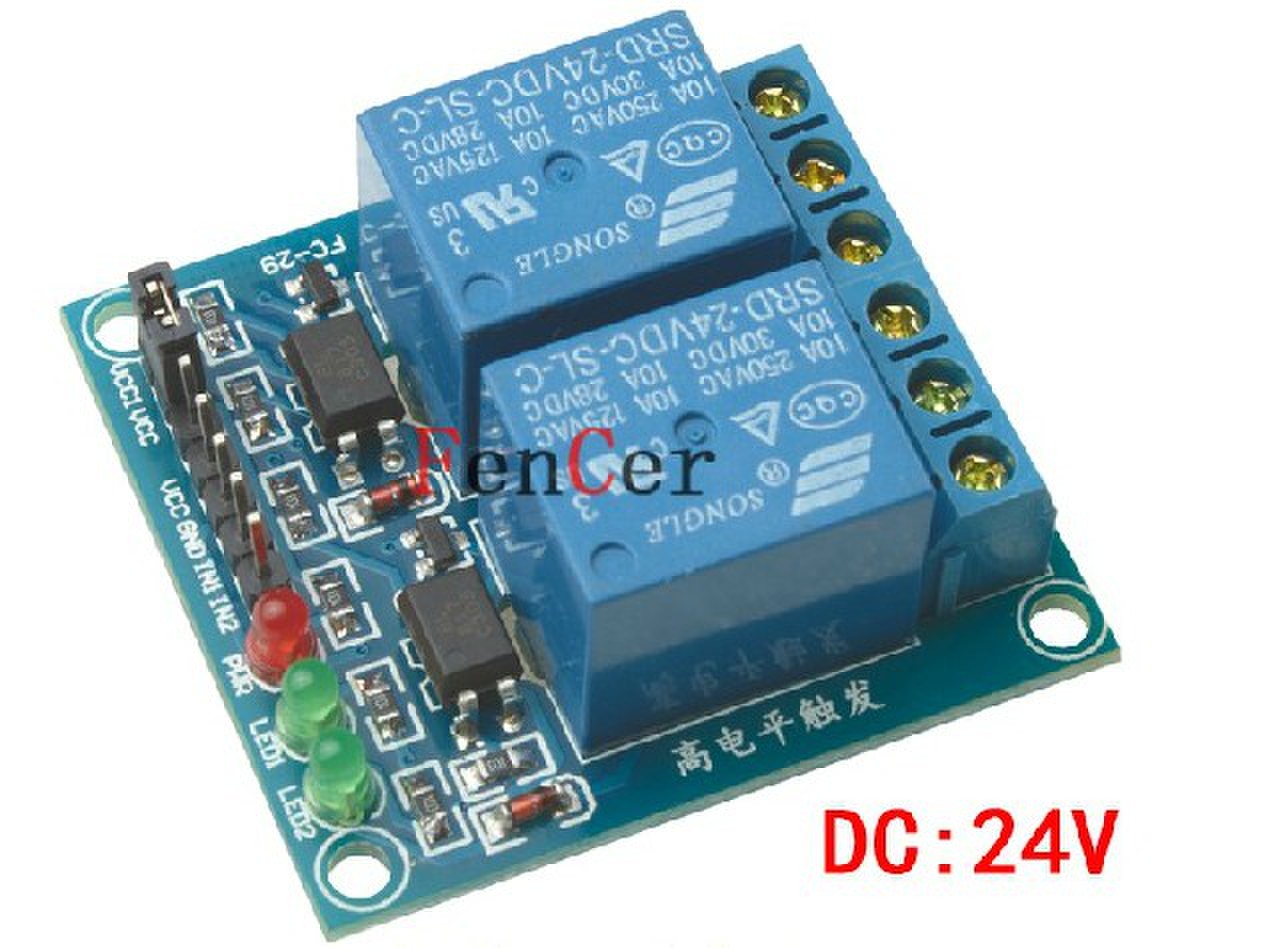

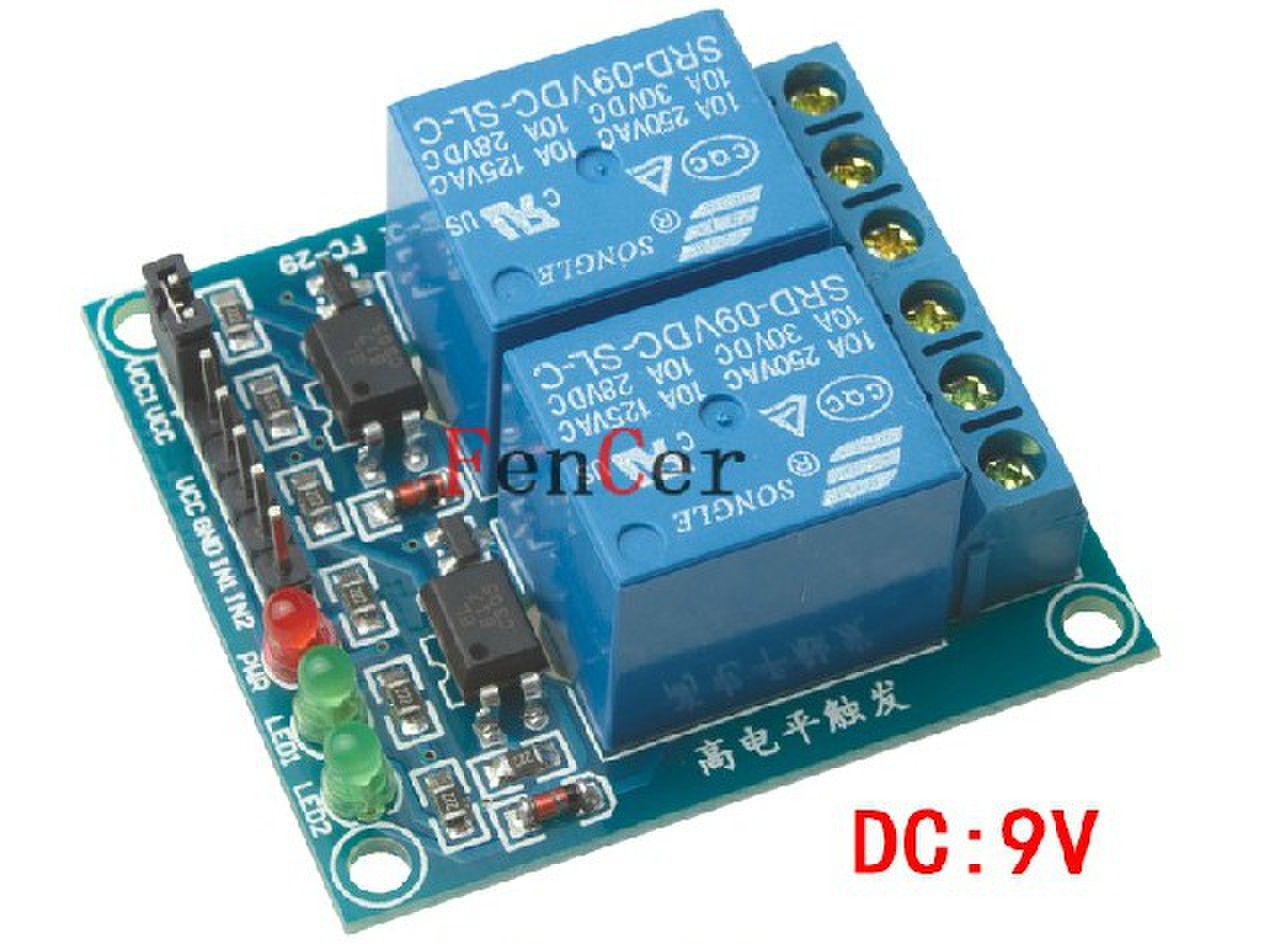

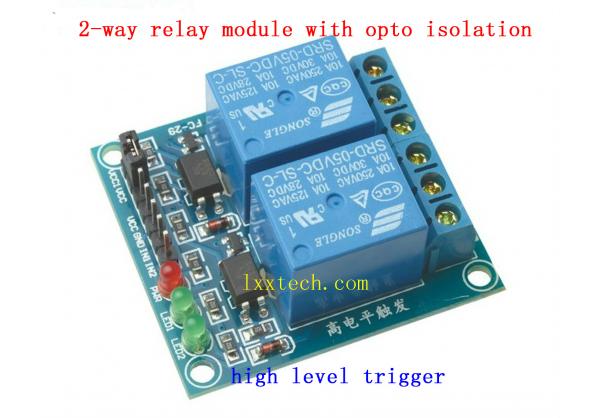

2-way relay module with opto isolation,Expansion board high level trigger 5V/9V/12V/24V

Product description:
1 , the module complies with international safety standards, the control area and the load region isolation trench ;
2 , using double-sided FR-4 circuit board design , high-end chip production process ;
3 , part of the relay contacts using double-sided bold wiring , safe and reliable ;
4, using loose music authentic relay control ;
5 , anti-interference ability , using optical isolation and freewheeling diode protection ;
6, with the power supply and relay instructions , pull off, disconnect does not shine ;
7 , a high level signal input signal, the common terminal will start with regular conduction ;
8 , the relay can control the various devices and the load ;
9, the input and output power can be set using the two power supply, you can use a set of power supply, the use of more flexible ;
10 , there are two normally open and two normally closed contacts ;
11 , blue KF301 terminals to the control line is more convenient.
12 , module size : 45x41x18.5mm; Weight : 30g
13 , finished through 100% functional testing and stability testing ;

Module interface :
the input section :
VCC: positive power supply ( by relay voltage supply )
GND: tied to power supply
IN1: 1 relay module signals trigger terminal
IN2: 2 -channel relay module signals trigger terminal

the output section ( relay outputs ) :
1,1 way normally start NO1: 1 relay normally open interfaces , the relay becomes vacant before , pull shorting after the COM1
2,1 Lu common COM1: 1 relay common interface
3,1 -way normally closed terminal NC1: 1 normally closed relay interface relay shorted before and COM1 , pull vacant post
4,2 way normally start NO2: 2 way normally open relay interface relay becomes vacant before , after and COM2 pull shorting
5,2 Lu common COM2: 2 Common Interface Relay
6,2 -way normally closed terminal NC2: 2 way normally closed relay interface relay shorted before and COM2 , pull vacant post

Product Tag : 2-way relay module with opto isolation high level trigger
