Electronic Modules 2-way speed sensor module counting module motor speed groove coupler module

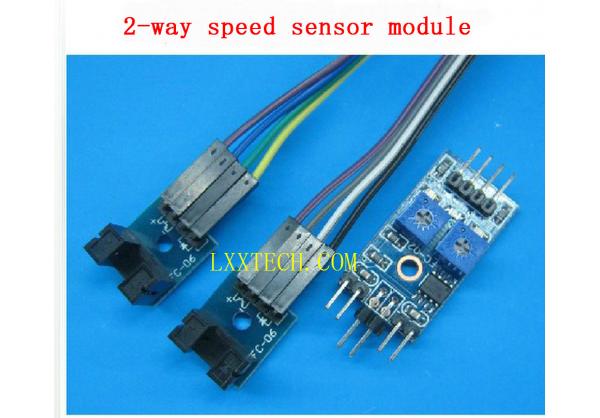

: Large Image:Electronic Modules2-way speed sensor module counting module motor speed groove coupler module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0185
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

2-way speed sensor module counting module motor speed groove coupler module

Purpose:

Widely used in motor speed detection, pulse counting, position limit, etc., with two road testing.

Module Features:

1, the use of imported groove coupler sensor

2, the slot width 5mm.

3, the output state indicator lamp output high, output low lights.

4, with cover, high output; unobstructed, output low.

5, the comparator output signal clean waveform is good, driving ability, than 15mA.

6, Operating Voltage 3.3V-5V

7, the output format: Digital switching output (0 and 1)

8, a fixed bolt holes for easy installation

9, small plates PCB size: 3.2cm x 1.7cm

10, using a wide voltage LM393 comparator

Module for use:

1 module slot unobstructed, the receiver tube is turned on, the module DO output low, cover when, DO output high;

2. DO module can be connected to the relay, consisting limit switches and other functions, can also be connected with the active buzzer module, composed of alarm.

Including:

1pcs 2-way speed sensor module ,
with two groove coupler,
two sensors small PCB,
8 pcs20cm DuPont line

Product Tag : 2-way speed sensor module
