Relay&Relay Module 2-way tilt sensor plus relay module, sensor protection module dumping dumping alarm module

: Large Image:Relay&Relay Module2-way tilt sensor plus relay module, sensor protection module dumping dumping alarm module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0302
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

2-way tilt sensor plus relay module, sensor protection module dumping dumping alarm module

Uses:

Dumping a variety of devices , tilt alarm, angle detection , two -way detection output control with relay output , you can do two conditions trigger the output end of the series ( with door ) , two conditions are either triggered, the output end in parallel ( or gate ) , two independent control three control methods , direct access AC power products.

Module Features :

1, sensor default of the Company SW-520D sensitive tilt sensor

2, the comparator outputs directly drive relays can be connected to 220V AC or other equipment ;

3 , adjust the sensitivity of digital distribution ;

4 , two -way sensor interface can be accessed by two different sensors , to meet the two conditions corresponding control related products ;

5 , with dimensions of 50x42mm, thickness 19mm, has four 3mm bolts holes for easy installation

6 , two relay outputs can be separately controlled both series and parallel can also be reached with gates or doors and effect .

Electrical parameters :

Supply voltage : 5VDC or 12VDC ( pls tell me which one you like ?)

Current : more than 150mA

Load : 250V 10A AC or 30V 10A DC

Module for use:

1 from the initial state of the relay depends on the tilt sensor turns on and off , when turned on, the relay , often beginning with a common terminal connected, the tilt sensor is disconnected , the relay off , the common and normally closed end turns ;

2 tilt sensor in the initial state are generally installed in a normally open state, the tilt sensor and the relay is not in working condition and prolong life ;

3 . Default SW-520D sensor for detecting objects dumped 90 degrees , for other angles , please consult the treasurer

Shipping list :

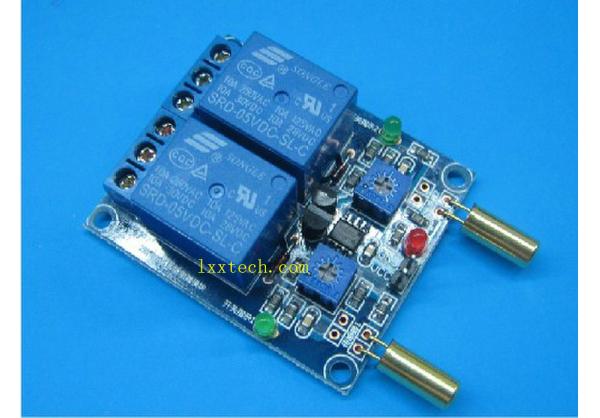

2-way tilt sensor plus a relay module with SW-520D tilt sensor

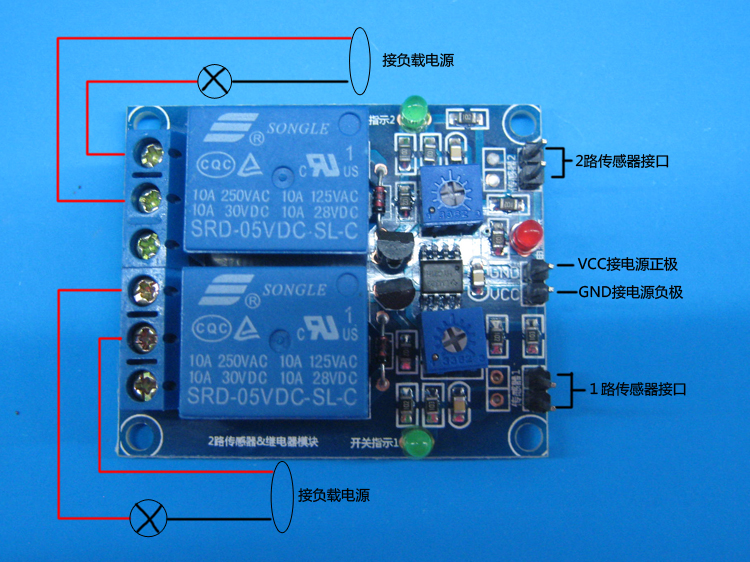

2-way relay sensor module plus conventional wiring diagram :

Output string and connection method :

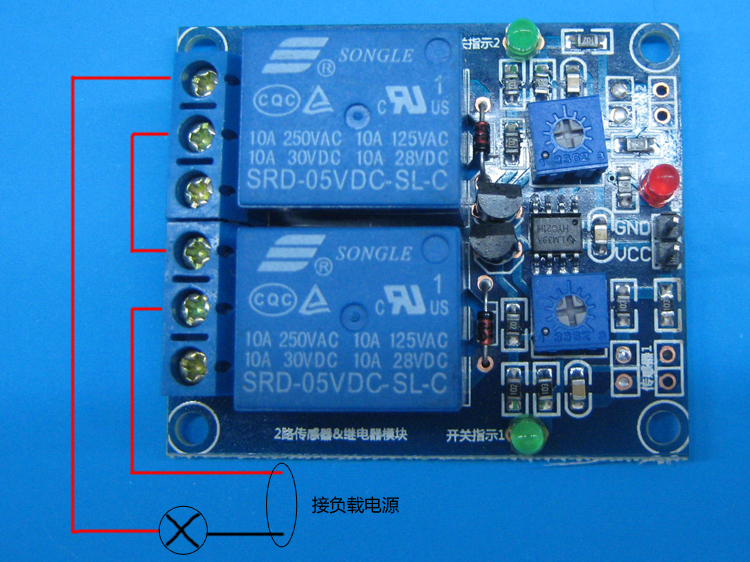

If the series connection , it is necessary in the case of two relays must pull , the circuit was switched on ;

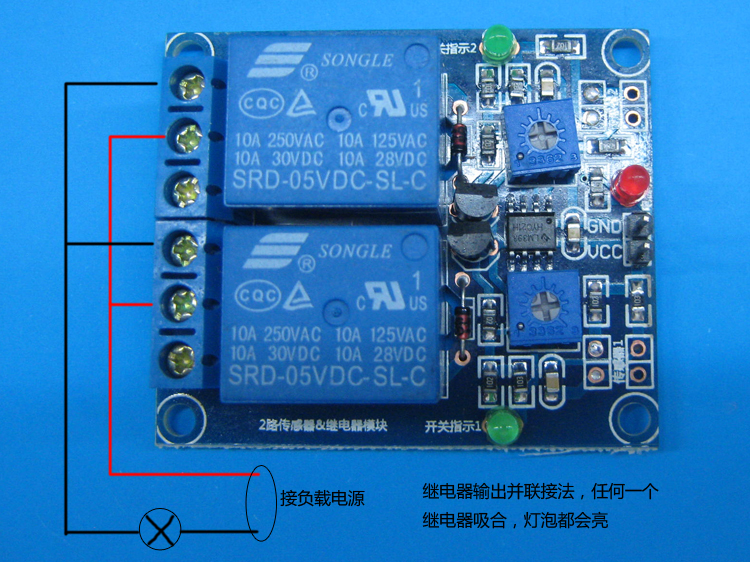

If and join law , any group of relay circuit can then be able to .

Product Tag : 2-way tilt sensor plus relay module
