Electronic Modules 2-way tracking sensor module Black and white line detection module Tracing Module

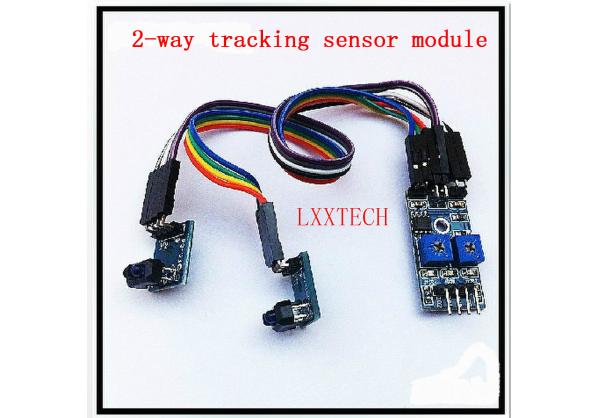

: Large Image:Electronic Modules2-way tracking sensor module Black and white line detection module Tracing Module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0174
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

Purpose:

1 .meter pulse data sampling

2 , fax paper shredders detection

3 , obstacle detection

4 , black and white line detection

Module Features :

1, using infrared reflective sensor TCRT5000

2 , the detection distance : 1mm ~ 8mm applicable , a focal length of 2.5mm

3, the comparator output signal clean waveform is good , driving ability, than 15mA.

4 , with a multi-turn precision potentiometer adjustable sensitivity adjustment

5 , the working voltage of 3.3V-5V

6, the output format : Digital switching output ( 0 and 1 )

7 , a fixed bolt holes for easy installation

8 , the small board PCB size : 3.2cm x 1.7cm

9 , using a wide voltage LM393 comparator

Module Features:

TCRT5000 infrared sensor continuously emits an infrared emitting diode , when the infrared emission is reflected or not reflected back but the intensity is not large enough , the phototransistor has been in the off state , the output of the module is high, indicating diode has been in the off state ; be detected objects in the detection range, and the intensity of the reflected infrared rays is large enough to saturate the phototransistor , the output of the module is low , indicating that the diode is lit.

Shipping list :

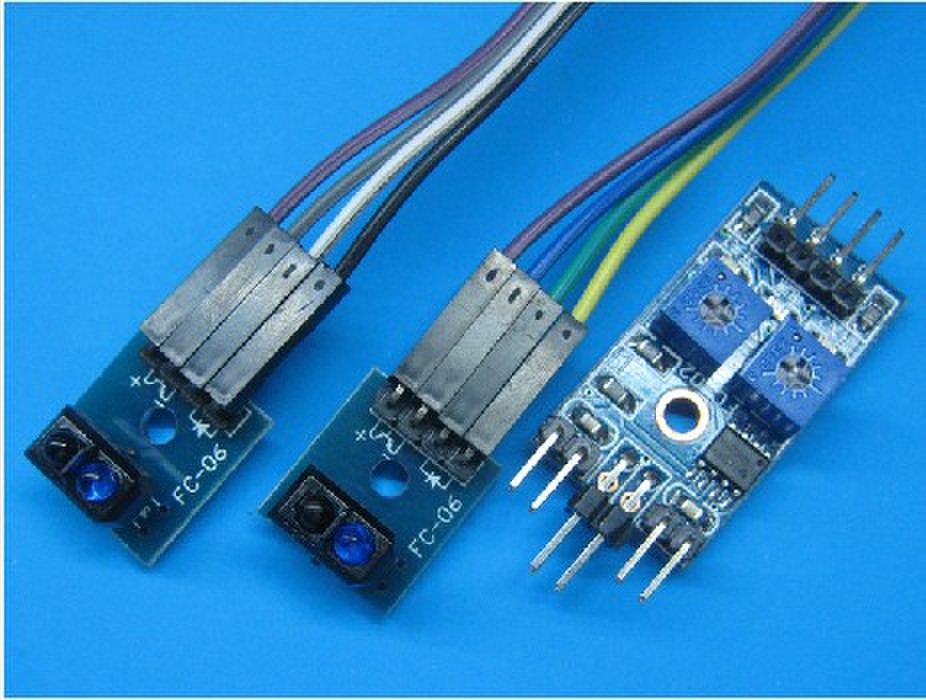

1PCS 2-way tracking sensor module , Dupont Line 8 , two small plates and positioning TCRT5000

Product Tag : 2-way tracking sensor module
