3D Printer Accessories 3d Extruder Print head for Thermocouple double nozzle

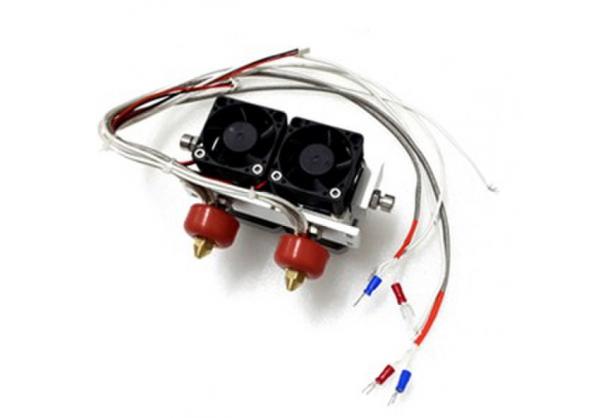

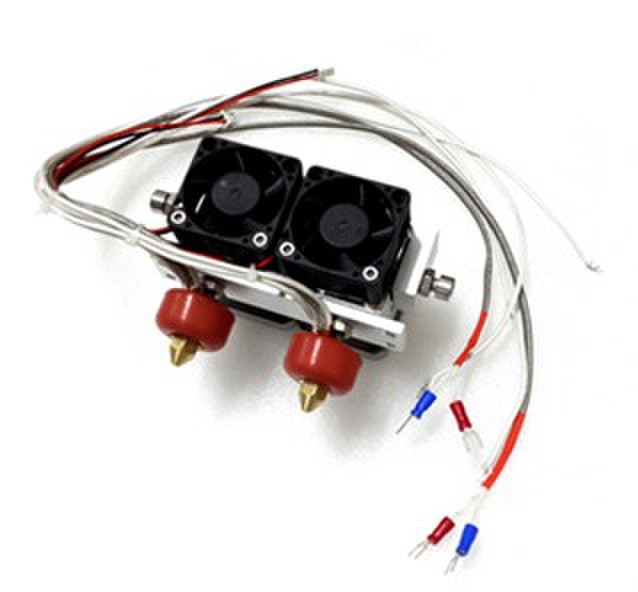

: Large Image:3D Printer Accessories3d Extruder Print head for Thermocouple double nozzle

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0067
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

3D printerDoublePrint head extruder feed ABS1.75mm

Extrusion nozzle: 0.4,0.3,0.2 optional

Parameters: nozzle diameter: 0.2 ~ 0.4mm

Movement axis speed: 40mm /

Nozzle flow rate: about 24cc / h

Print Material: ABS

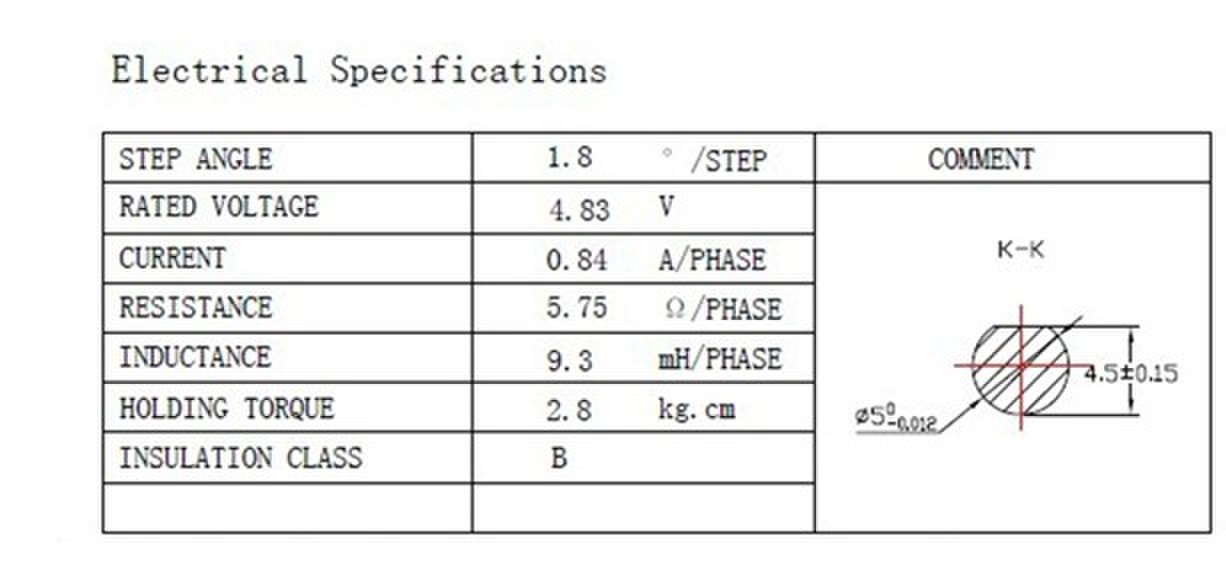

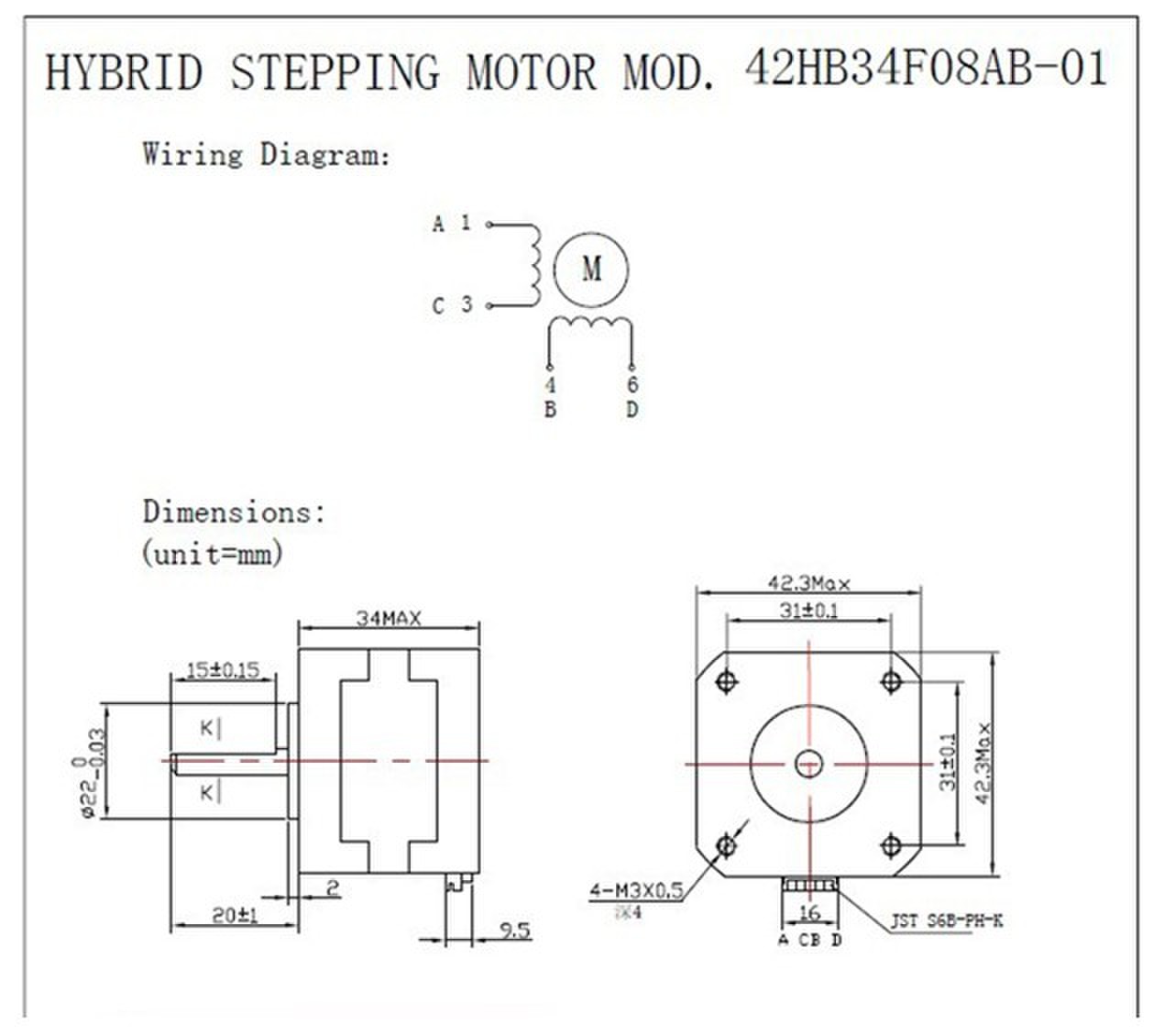

1.An extruder stepper motor model 42HB34F08AB

2. the cooling fan operating voltage 12V.

3. the extrusion head heating voltage 12V, preventing 5-9 ohms , 500MM cable.

4. K-type thermocouple (PT100 reference temperature of 0 degrees ), 500MM link line .

5. 1000 MM stepper motor line .

Note:

heating nozzle with 12V and 24V, 12V must not be connected 24V, and the heating temperature control must be part of the normal operating temperature 190 ° -230 °, set the maximum temperature does not exceed 280 ° temperature easily burned. Remember ! Remember !

To order 24V or thermistor temperature measurement please contact the store , because the processing costs at different prices will be adjusted.

( Default hair Working voltage 12V K -type thermocouple 0.4mm nozzle )

Product Tag : Thermocouple double nozzle

Contact Details

Shenzhen LINGXIANGXING Technology Co., Ltd.
Shenzhen Yourmestudio Technology Co.,Ltd.

Contact Person: Miss Angela

Tel:86-755-84578365

Fax:86-755-84578365

E-mail:angela@yourmestudio.net
