3D Printer Accessories 3D printer PCB hot bed Mk2b 12/24 double power 214x214mm Mk2a

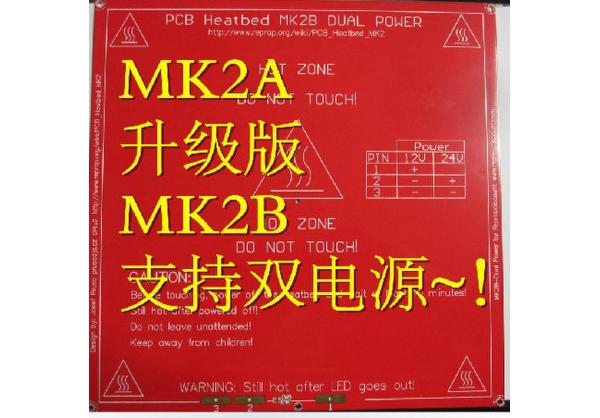

: Large Image:3D Printer Accessories3D printer PCB hot bed Mk2b 12/24 double power 214x214mm Mk2a

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0081
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

Dimensions: 214mmx 214mm

Laminate FR4 1.6 +-0.15mm

2 layer, 35μm copper

Red Soldermask - both sides

White Silkscreen - both sides

Power Input: 12V or 24v

copper plated holes

Features:

1,12 V 24 power random access

2, double-sided, the other side is no wiring, heating uniformity, smooth printing

3, regardless of the positive and negative terminal, free wiring

Test Report:

Connects to 12V

Current 9.8A, as the temperature increases, the current drops to 8.8A (physical Tips: resistance becomes larger as the temperature rises)

24V connection

Theoretical maximum current is less than 5A

If you use 24V, this time the current is very large, MOS tube severe fever, it is easy because the heat burned.

In addition, also consider the adequacy of power supply, power up to 576W of power is very expensive, if power shortage, it may affect the normal operation of the motor and other equipment.

Latest version mk2b:

Relative latest version Mk2a, a major upgrade of 12V 24V dual power.

12V connection: a cable connected to one, the other a line while connected to 2,3.

24V connection: a cable connected to two, the other one wire to 3 (a floating not connected)

Product Tag : PCB hot bed Mk2b 12/24 double power
