Relay&Relay Module 5V Light Control Switch Photoresistor Plus Relay Module

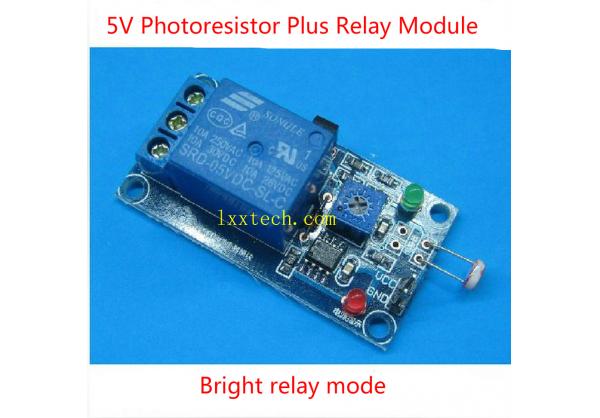

: Large Image:Relay&Relay Module5V Light Control Switch Photoresistor Plus Relay Module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0281
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

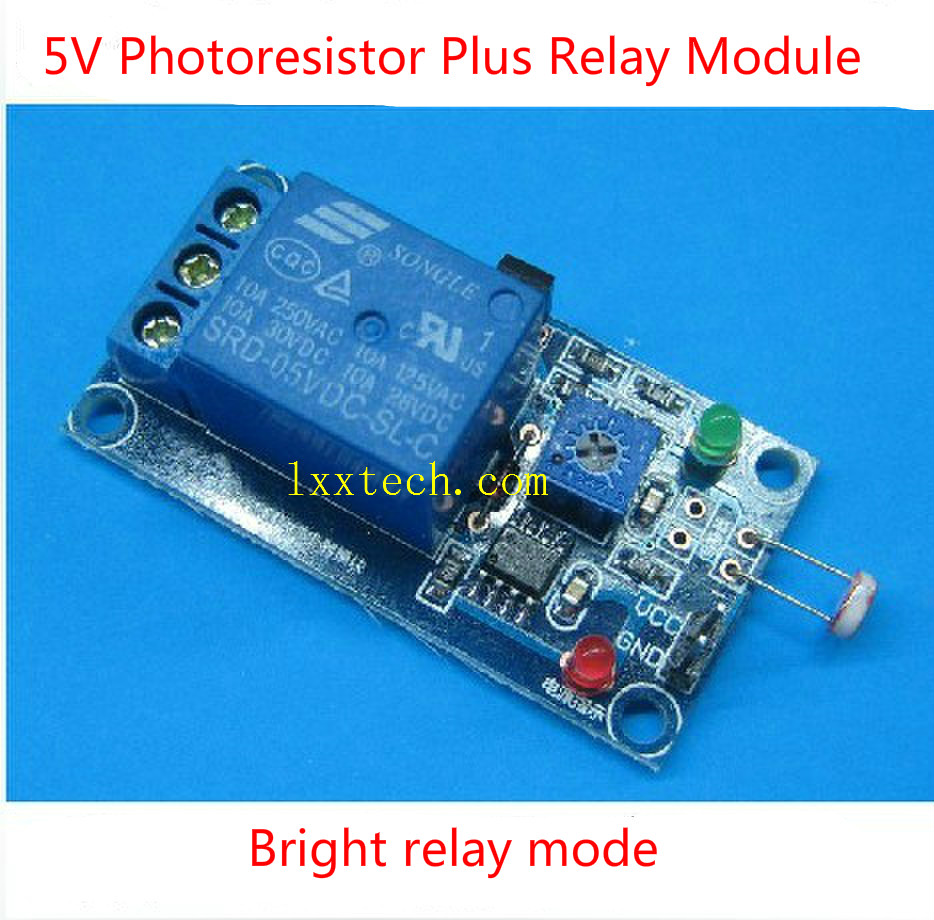

5V Light Control Switch Photoresistor Plus Relay Module;Bright relay mode

This module is detected under light conditions pull relay

Uses:

Light detection , brightness detection, by detecting the brightness potentiometer adjustable valve point , comes relays, do all kinds of brightness detection switch .

Module Features :

1, using the intensity of the light sensitive resistor sensor , relay comes directly control the load

2 , power bits adjust the sensitivity by adjusting potentiometer, setting the threshold to start the relay , when this threshold lights , relay modules , while the dark this threshold , the relay off .

3 , the operating voltage 5V

4, the output forms: direct access or DC30V 10A AC 220V 10A load

5 with 4 fixing bolt holes for easy installation

6, small PCB board size : 5cm x 2.6cm

7 , using a wide voltage LM393 comparator

Module for use:

1, the photosensitive resistor module most sensitive to ambient light , generally used to detect the brightness of ambient light.

2 , when the module is in the ambient light exceeds a set threshold, the relay , often beginning with a common terminal connected, when the ambient light is below a set threshold, the relay off , the common terminal and the normally closed terminal connected;

3 , common, normally open, normally closed three ports is equivalent to a dual-control switch, relay coil power , often beginning with a common terminal conduction, when there is no electricity , common and normally closed terminal conduction ;

Electrical parameters :

Supply voltage : 5VDC

Current : more than 100mA

Load : 250V 10A AC or 30V 10A DC

Shipping list :

Photoresistor sensor plus a relay module
with a photoresistor
