Relay&Relay Module 5V relay module photodiode module,light control switch, light detection, light sensors

: Large Image:Relay&Relay Module5V relay module photodiode module,light control switch, light detection, light sensors

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0303
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

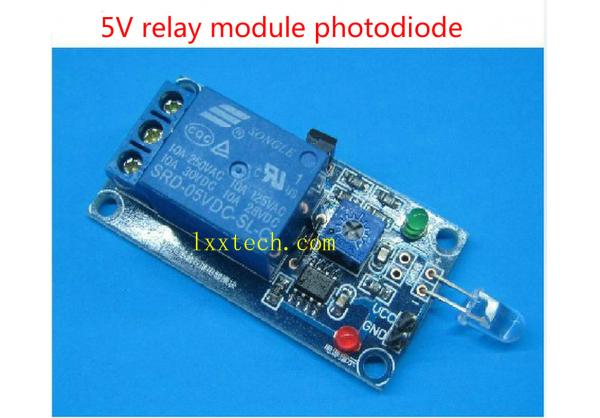

5V relay module photodiode module,light control switch, light detection, light sensors

Uses:

Light detection , brightness detection, by detecting the brightness potentiometer adjustable valve point , comes relays, do all kinds of brightness detection switch , you can control all kinds of lights, turn on automatically at night , during the day and automatically turns off and the vehicle supplies control and automation equipment. ( Compare with the photosensitive resistance , better directionality that can sense light fixed direction in front of the photodiode to detect light , the surrounding is difficult to detect , and often should seek light function )

Module Features :

1, using the intensity of the light sensing photodiode , comes relays, direct load control

2 , power bits adjust the sensitivity by adjusting potentiometer, setting the threshold to start the relay , when this threshold lights , relay modules , when this dark threshold relay release , so normally open to public end of the day is to control the switch , normally closed to public access terminal is to control the night switch.

3 , the operating voltage 5V

4, the output forms: direct access or DC30V 10A AC 220V 10A load

5 with 4 fixing bolt holes for easy installation

6, small PCB board size : 5cm x 2.6cm

7 , using a wide voltage LM393 comparator

Electrical parameters :

Supply voltage : 5VDC

Current : more than 100mA

Load : 250V 10A AC or 30V 10A DC

Module for use:

1. photodiode most sensitive to ambient light , generally used to detect the brightness of the ambient light.

2 , when the module is in the ambient light exceeds a set threshold, the relay , often beginning with a common terminal connected, when the ambient light is below a set threshold, the relay off , the common terminal and the normally closed terminal connected;

3 , common, normally open, normally closed three ports is equivalent to a dual-control switch, relay coil power , often beginning with a common terminal conduction, when there is no electricity , common and normally closed terminal conduction

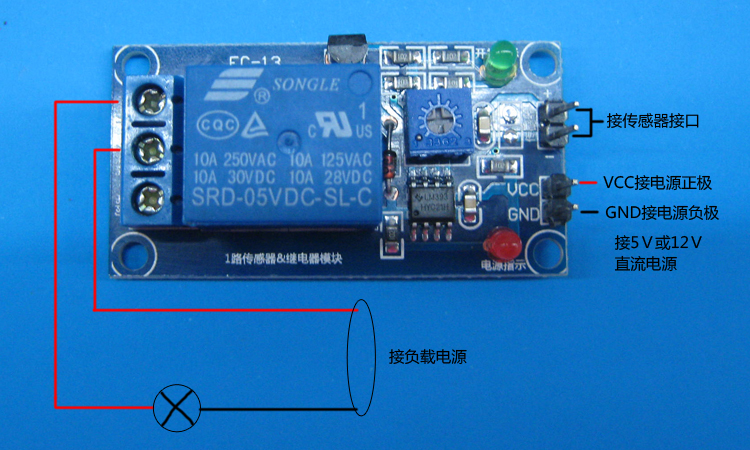

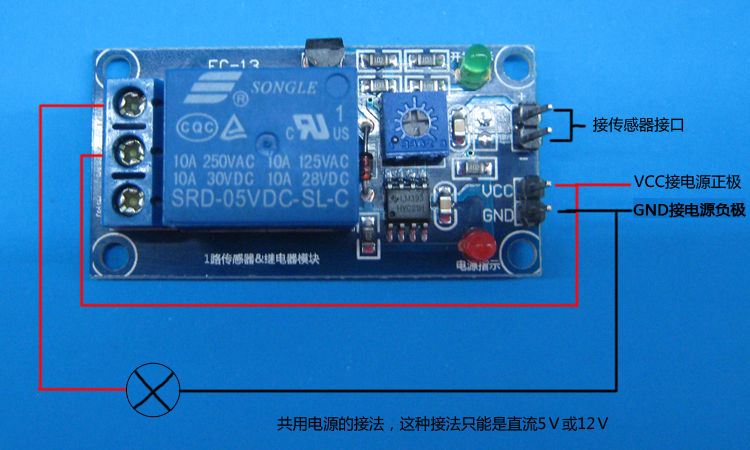

Module wiring diagram:

When the ambient light is detected above the set temperature, relay, light bulb, when below the set value, the relay off, the lamp is not lit (shown only say that the wiring method) for high voltage connection.
