Relay&Relay Module 5V relay module tilt sensor plus,equipment module tilt dumping protection

: Large Image:Relay&Relay Module5V relay module tilt sensor plus,equipment module tilt dumping protection

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0298
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

Uses:

Various angle sensor , tilt sensor dumping sensor outputs with relays, directly connected to the high current loads , can be applied to a variety of instruments and equipment dumping protection , appliance dumping protection.

Module Features :

1 , the sensor sensitivity default SW-520D Company angle sensor , an angle sensor may also be used with other

The angle sensor can be used to achieve various different functions , a 45- degree angle sensor , the angle sensor 90 , an angle sensor of any optional

2, the comparator outputs directly drive relays can be connected to 220V AC or other equipment ;

3 , adjust the sensitivity of digital distribution ;

4, with four 3mm bolts holes for easy installation

5, the output terminal blocks with blue , easy wiring

Module for use:

1 from the initial state of the relay depends on the tilt sensor turns on and off , when turned on, the relay , often beginning with a common terminal connected, the tilt sensor is disconnected , the relay off , the common and normally closed end turns ;

2 tilt sensor in the initial state are generally installed in a normally open state, the tilt sensor and the relay is not in working condition and prolong life ;

3 . Default SW-520D sensor for detecting objects dumped 90 degrees , for other angles , please consult the treasurer .

Electrical parameters :

Supply voltage : 5VDC

Current : more than 100mA

Load : 250V 10A AC or 30V 10A DC

Shipping list :

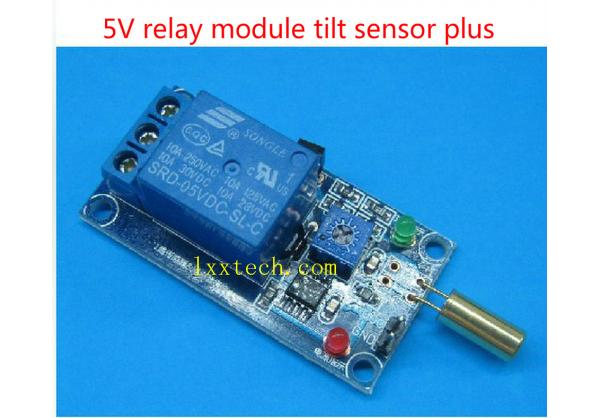

5V version of the tilt sensor plus a relay module with SW-520D tilt sensor

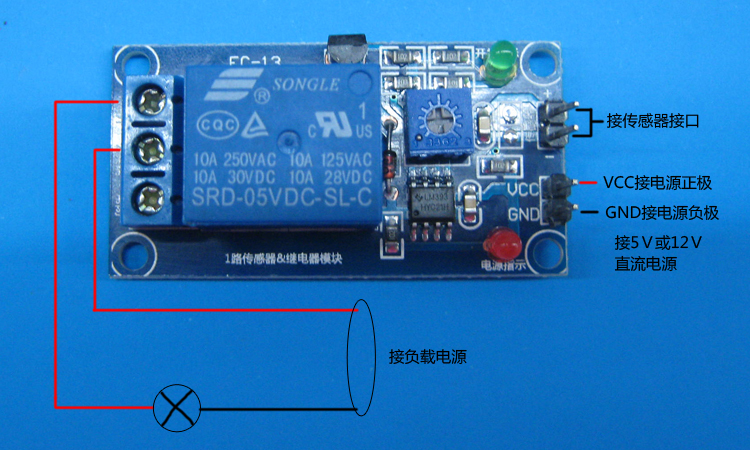

Sensor plus relay module wiring diagram :

When the tilt sensor turns on the lamp voltage , time off , will not light ( shown only to illustrate the wiring method ) for high voltage connection.

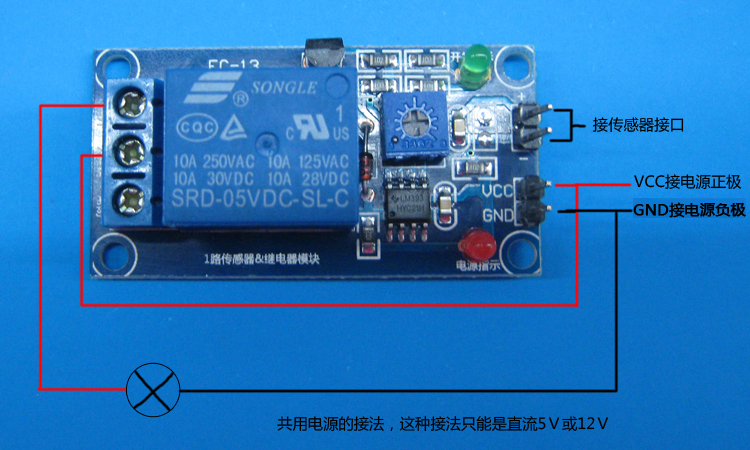

A shared module power connection, tilt sensor turns on the lamp voltage , disconnect , will not light ( shown only explanation wiring methods ) .

Product Tag : 5V relay module tilt sensor plus
