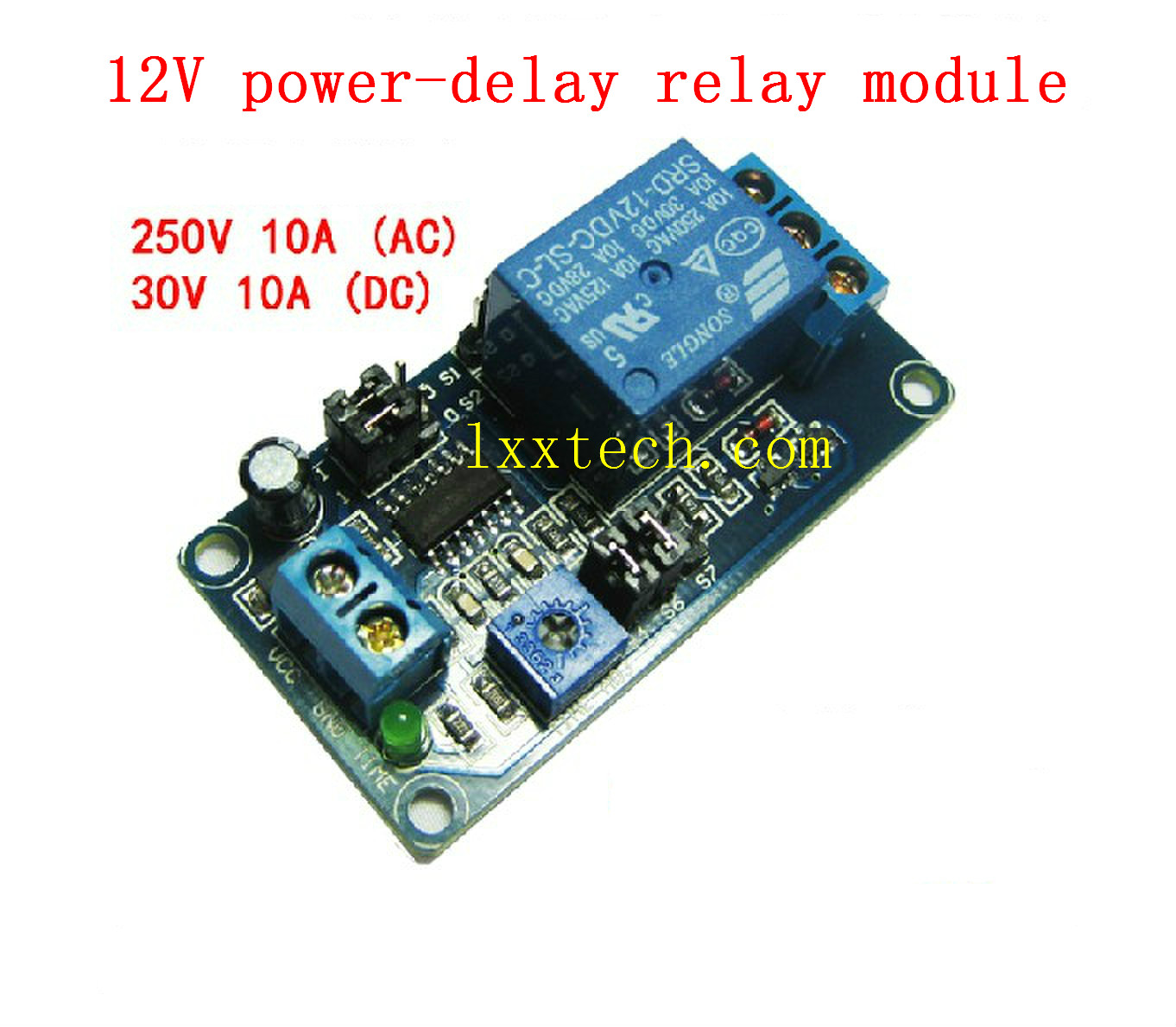

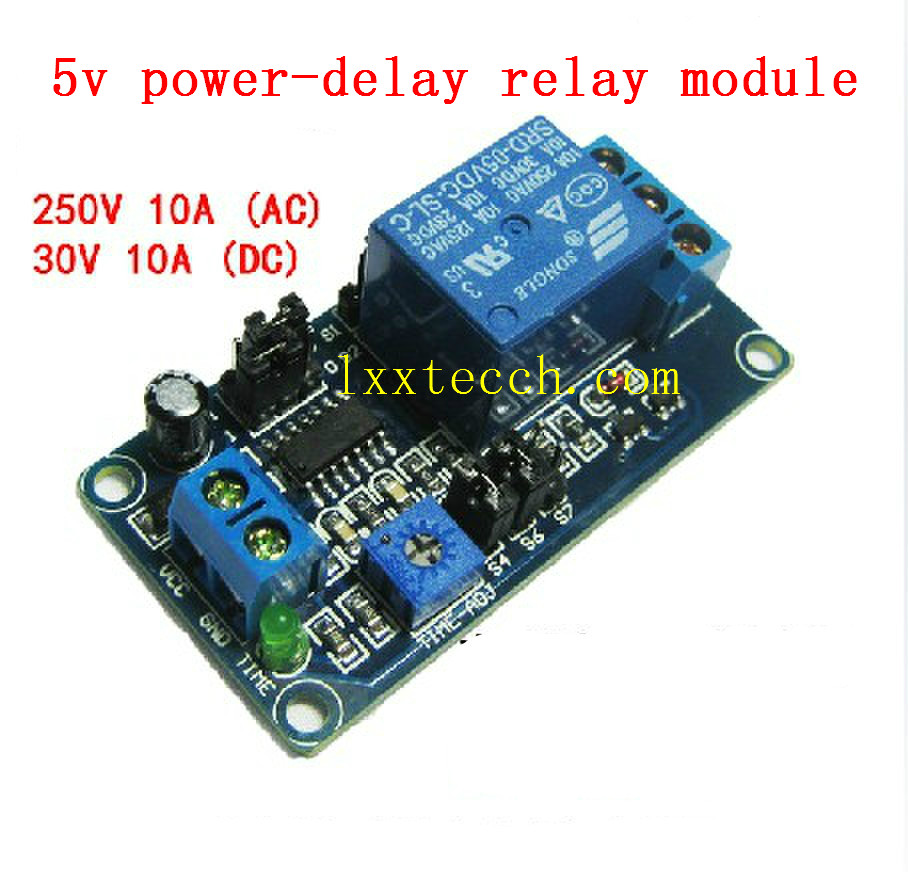

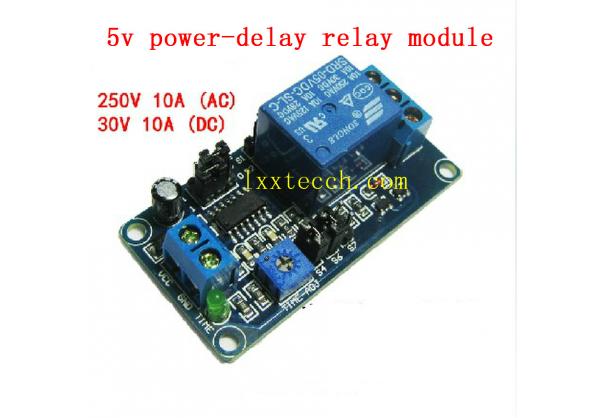

5v/9v/12V power-delay relay module, fully functional, there are off-delay, on-delay function

: Large Image:5v/9v/12V power-delay relay module, fully functional, there are off-delay, on-delay function

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0259
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

5v/9v/12V power-delay relay module, fully functional, there are off-delay, on-delay function

Application:
driving record , GPS start protection , household appliances, electronic equipment protection , sound protection, industrial control, PLC control , electronic experiments , arduino robot , an extremely broad range of applications .

Product description:

1 imported high -quality delay chip design, performance is far superior to the 555 chip ;

2. provides 8 kinds of delay time range selection , the shortest 0.1 seconds , up to one hour , to meet the majority of needs ;

3. Protection against power reversal protection diode , the effective protection product ;

4. can be accessed by a large current load (250v ac 10A or 30V dc 10A);

5. output has energized delay after delay relay or relay selection ;

6. has a delay adjustment potentiometer clockwise adjustment time is longer.

Features:

1. When the jumper plug on the module S6 , S7 is not inserted , the module when a power, then immediately start the timer ( time range is adjustable ) , and immediately pull the relay , the relay common terminal connected with normally open pass, delay expires , the relay releases , the common and normally closed terminal connected.

2. When the jumper plug on the module S7 , S6 is not inserted , the module when a power, then immediately start the timer ( time range is adjustable ) , and immediately pull the relay , then the relay is not energized ( no ON ) , delay ends , the relay , the common and normally start on.

Electrical parameters:
Input voltage             static power            maximum power
        5V                          2.5mA                          70mA
       9v                            4.0mA                          45mA
      12v                           5.5mA                          42mA

Product Tag : 5v/9v/12V power-delay relay module （Full version）
