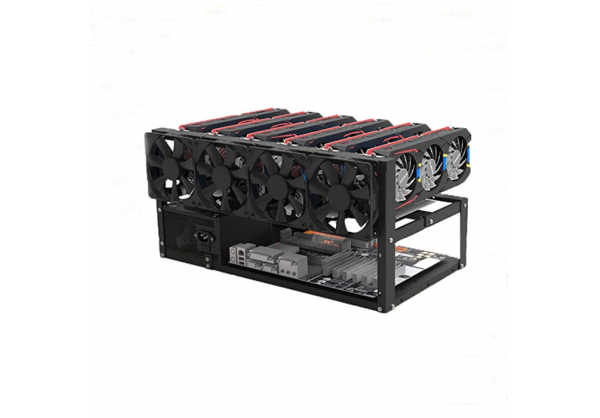

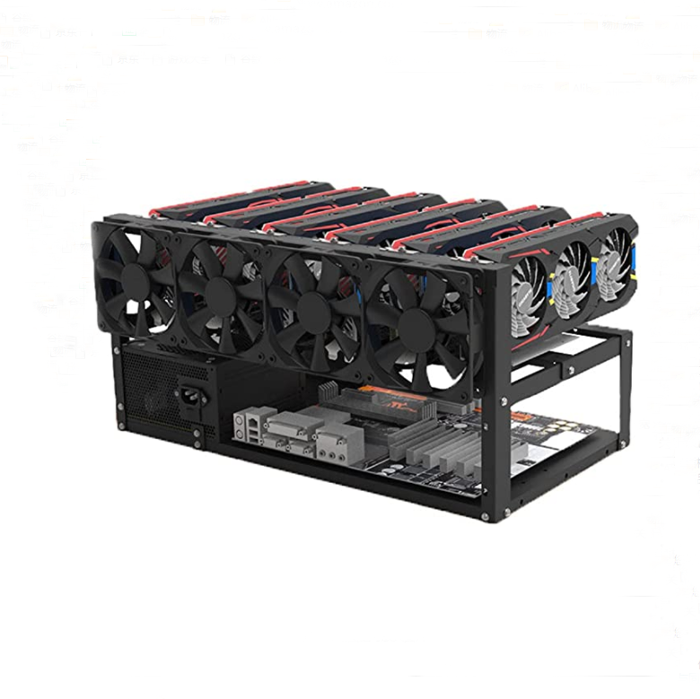

Rig frame 6gpu Steel Open Air computer mining Rig Frame studio computer bracket

: Large Image:Rig frame6gpu Steel Open Air computer mining Rig Frame studio computer bracket

Product Details:

Place of Origin:	CHINA
Brand Name:	YOURMESTUDIO
Model Number:	LXX-3163
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:
Delivery Time:
Payment Terms:
Supply Ability:

Detailed Product Description

High Material: Rig Frame made of highest quality iron material, with the finest craftmanship, which is easy to install and has a sturdy structure. Keeps the machine perfectly organized while it holds the least amount of heat possible.
Standard Holes Design:All AXT motherboards, graphics cards, hard drives, and power supplies are designed according to standard holes, keep all cables clean and organized, along with everything in your rig machine,so as to achieve better heat dissipation effect.
Easy to install:The Frame Only,Not includes Fans or other CPU, GPU, PSU, Motherboards, Cables. Easy&Fast installation in 20 minutes with detailed guide.Include: 1 set of screw.

6 GPU / 8GPU Open Air Rig Case :

parameter:

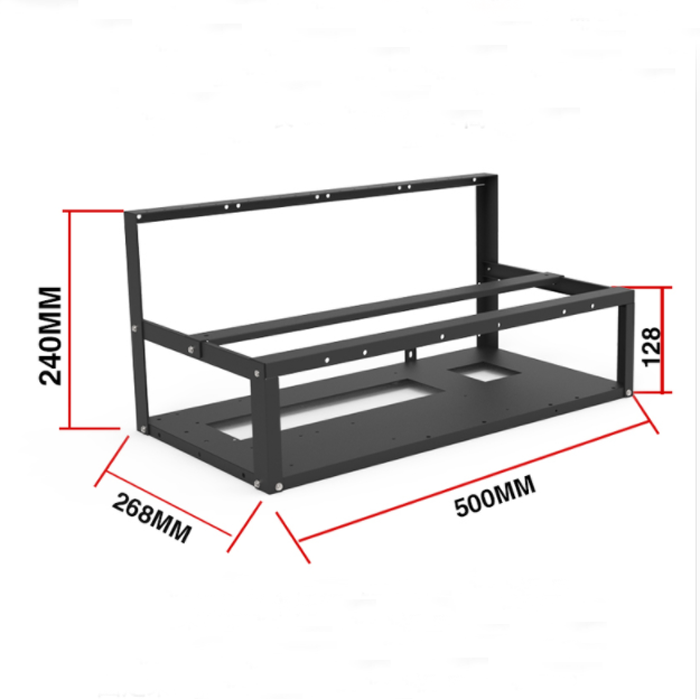

Product size: 500mm*240*mm*268mm (6GPU)

Motherboard size: maximum 305*245mm

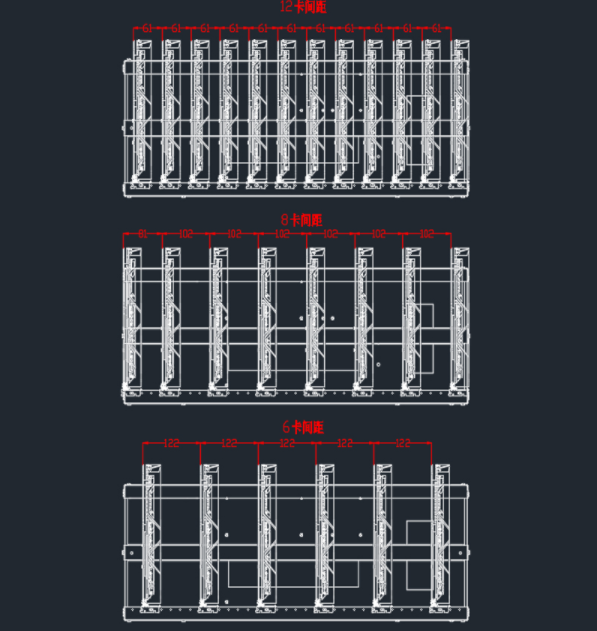

Graphics card specifications: graphics card length is not limited, support 6 cards 81mm, 8-card spacing 61mm
Radiator: CPU radiator height 95mm
Support power supply: support ATX power supply, support extended power supply
Storage device: SSDX2 +HDDX1
Fan specifications: 12cm *4pcs (6GPU); 12cm *5pcs (8GPU)
Main material: steel

Notice:

Frame Only (Need to assemble by yourself, for installation steps, please refer to the main image of the user manual. )

Please allow deviations of 1-3cm due to manual measurement.

Package included:

1 x rig Frame
