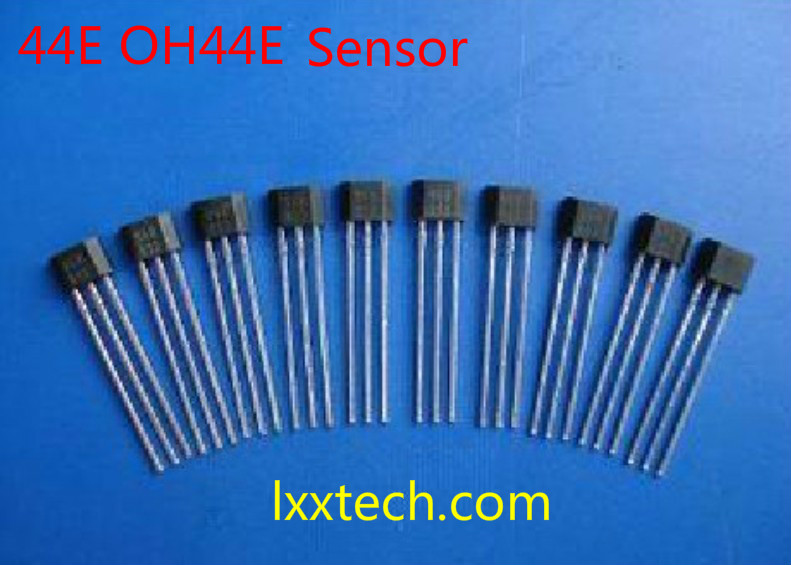

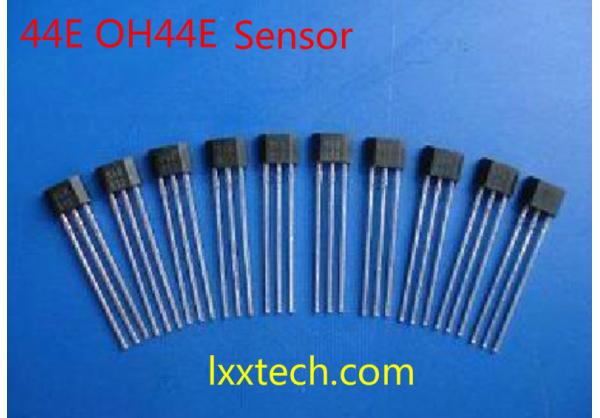

Electronic Modules A3144E Hall element, 44E OH44E Hall sensor

: Large Image:Electronic ModulesA3144E Hall element, 44E OH44E Hall sensor

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0379
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

A3144E Hall Hall Hall sensor element 44E OH44E principle of Hall effect switch IC, the use of magnetic semiconductor integrated circuit manufacturing technology, which is determined by the voltage regulator, Hall-voltage generator, differential amplifier, Schmitt trigger , temperature compensation circuit and open-collector output stage consisting of magnetic sensing circuit, the input of magnetic induction, the output is a digital voltage signal.

Product Features:

Small size, high sensitivity, fast response and good temperature performance, high accuracy, high reliability

Typical applications:

Non-contact switch, auto ignition, brake circuit, position, speed detection and control, security alarm devices, textiles control system

Limit parameter (25 ℃)

Power supply voltage VCC · · · · · · · · · · · · · · · · · · · · · · · · · · 24V

Output reverse breakdown voltage Vce · · · · · · · · · · · · · · · · · · · 50V

Output low current IOL · · · · · · · · · · · · · · · · · · · 50mA

Operating ambient temperature TA · · · · · · · · · · · · · · E file: -20 ~ 85 ℃, L file: -40 ~ 150 ℃

Storage temperature range TS · · · · · · · · -65 ~ 150 ℃

Product Tag : 44E OH44E Hall sensor
