3D Printer Accessories CJMCU-stepper motor driver A4988 A4983 3D Printer Driver Module

: Large Image:3D Printer AccessoriesCJMCU-stepper motor driver A4988 A4983 3D Printer Driver Module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0074
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

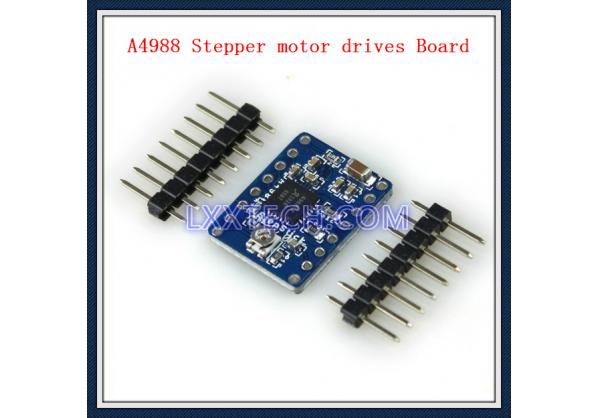

CJMCU-stepper motor driver A4988 A4983 3D Printer Driver Module

A4988 is a complete microstepping motor driver with built-in translator for easy operation. This product is available in full, half , 1/ 4, 1/ 8 and 1/16 step modes operate bipolar stepper motors , output drive capacity of up to 35 V and ± 2 A. A4988 includes a fixed off- time current regulator , the regulator in slow or mixed decay modes . A4988 converter is the key to the easy implementation . As long as the "step" input inputting one pulse drives the motor one microstep. There are no phase sequence tables, high frequency control lines, or complex interfaces to program . A4988 interface is very suitable for complex microprocessor is unavailable or is overburdened .

In the micro-step operation , A4988 chopping control inside automatically selects the current decay mode ( Slow or Mixed ) . In mixed decay mode , the device is initially set to a fixed downtime in some fast decay , then the rest of the slow decay downtime . Mixed decay current control scheme results in reduced audible motor noise, increased step accuracy, and reduced power consumption. Internal synchronous rectification control circuitry is provided to improve the pulse-width modulation (PWM) operation power consumption. Internal circuit protection includes : thermal shutdown with hysteresis , undervoltage lockout (UVLO) , and crossover- current protection. Special power sequencing.

A4988 surface mount QFN package (ES), a size of 5 mm × 5 mm, nominal overall package height of 0.90 mm, with an exposed pad for enhanced thermal dissipation. This package is Pb ( suffix -T), with 100% matte tin leadframe plating.

Features and Benefits:

• Low RDS (On) Output
• Automatic current decay mode detection / selection
• Mix with slow current decay modes
• Synchronous rectification for low power dissipation
• Internal UVLO
• Crossover-current protection
• 3.3 and 5 V compatible logic supply
• Thermal shutdown circuitry
• Ground fault protection
• Load short-circuit protection
• Five selectable step modes: full, 1/2, 1/4, 1/8 and 1/16

Product Tag : A4988 Stepper motor drives Board (bule)
