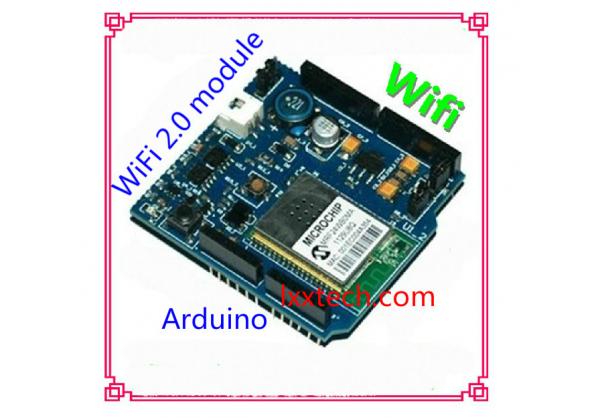

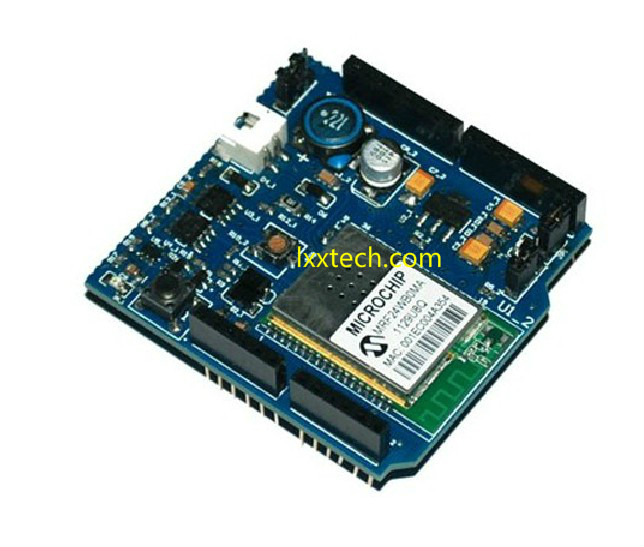

CuHead WiFi Shield WiFi 2.0 module for Arduino
Description :
You will be able to use this product Wi-Fi module is connected to the Arduino project ! It provides connectivity 802.11b and is connectable to Arduino Diecimila / Duemilanove / Uno plug and play solution.
This product is compatible Asynclab wifi board !
Provide the source code and schematics !
Features:
Arduino Diecimila, Duemilanove and Uno expansion shield
Size, shape, or color are a perfect match !
Truly plug and play
Host communication using the SPI ( maximum speed of up to 25MHz)
All Arduino pins protrude , easy to use
Board has a reset button
Board PCB antenna
And the data can be used between INT0 interrupt pin adjustable foot pin8
Data on the safety pin 9 with adjustable LED
Data between pin 10 and pin 7 serial data Flash CS pin adjustable
Wi-Fi module features:
802.11b Wi-Fi verification
1Mbps and 2Mbps throughput speeds
Support -controlled basic service set (BSS) and independent basic service set (IBSS) wireless network
The ability to create encrypted and unencrypted network network
WEP (64-bit and 128-bit)
WPA/WPA2 (TKIP and AES) PSK
Low energy consumption
Sleep mode : 250μA
Transfer Mode : 230mA
Receive mode : 85mA
Pin
SPI
Slave Select (SS): Arduino pin 10 ( port B, pin 2)
Clock (SCK): Arduino pin 13 ( port B, pin 5)
Hosts into the slave out (MISO): Arduino pin 12 ( port B, pin 4)
Host a slave into (MOSI): Arduino pin 11 ( port B, pin 3)
Interrupt pin ( according jumper , select one of the following a )
INT0: Arduino pin 2 ( port D, pin 2)
DIG8: Arduino pin 8 ( port B, pin 0)
LED: Arduino pin 9 (port B, pin 1)
To reuse this pin removed to LED jumper cap
5V power
GND
If you set the serial data flash CS pin at pin10, then the Wi-Fi module will not be used. To be able to use the data flash memory and Wi-Fi module , the data flash jumper CS pin must be set on pin7.
