Electronic Modules DHT11 temperature and humidity sensor module 20% -95% arduino kit

: Large Image:Electronic ModulesDHT11 temperature and humidity sensor module 20% -95% arduino kit

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0210
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

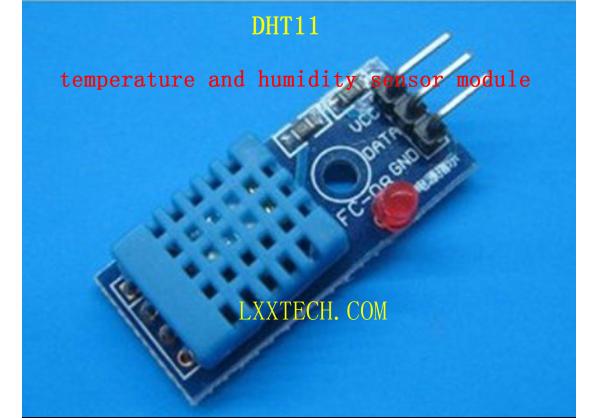

DHT11 temperature and humidity sensor module 20% -95% arduino kit

Product description:
1. can detect the ambient humidity and temperature
2 sensor DHT11
3 Humidity measuring range: 20% -95% (0 degrees -50 degrees) Humidity measurement error: + -5%
4 Temperature measurement range: 0 degrees -50 degrees temperature measurement error: + -2 degrees
4 Operating voltage 3.3V-5V
5 Output Type Digital Output
6 with fixed bolt hole for easy installation

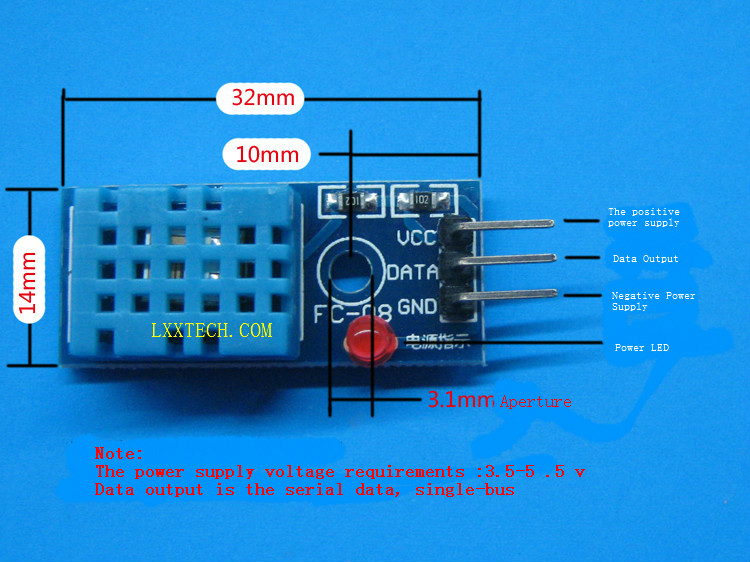

7 small plates PCB size: 3.2cm * 1.4cm
8 Power LED (red)
9 Each weighs about 8g

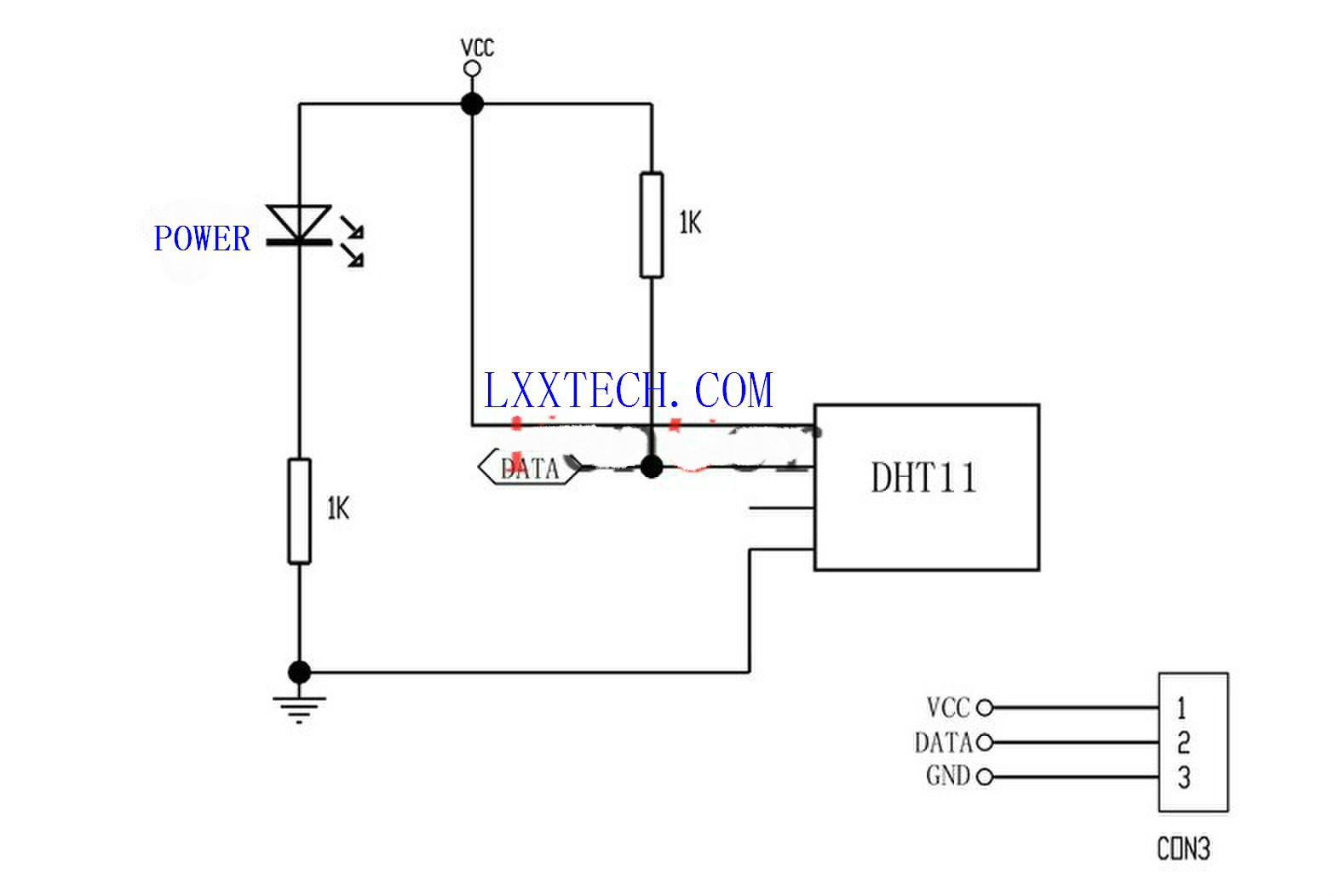

Module Interface Description (3-wire)
1 .VCC external 3.3V-5V
2.External GND GND
3. DO small plate switch digital output interface connected microcontroller IO port

Product Tag : DHT11 temperature and humidity sensor module
