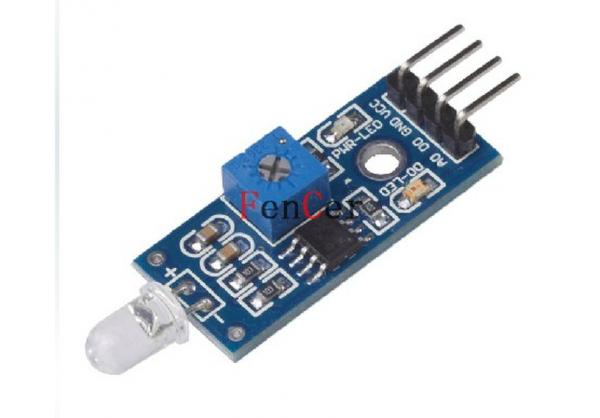

Electronic Modules Photodiode module Photosensitive module   Light Detection brightness detection (4-wire)

Electronic Modules Photodiode module Photosensitive module   Light Detection brightness detection (4-wire) factory Electronic Modules Photodiode module Photosensitive module   Light Detection brightness detection (4-wire) factory

Large Image:Electronic ModulesPhotodiode module Photosensitive module   Light Detection brightness detection (4-wire)

Product Details:

Place of Origin: CHINA
Brand Name: LXXTECH
Model Number: LXX-0163
Certification:

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: Good price
Delivery Time:
Payment Terms: TT ,paypal,ESCROW
Supply Ability:
Detailed Product Description


Purpose:
Light intensity detected light intensity sensor is directional , only inductive sensor in front of the light source , the light is used to look for better

Module Features :
One can detect the ambient brightness and light intensity ( compared with photosensitive resistance , better directionality that can sense the direction of the light source fixed )
2 adjustable sensitivity ( shown in blue digital potentiometer adjustment )
3 Operating voltage 3.3V-5V
4 Output Style: DO digital switching outputs ( 0 and 1 ) and AO analog voltage output
5 with fixed bolt hole for easy installation
6 small plates PCB size : 3.2cm * 1.4cm

Module for use:
A photodiode module most sensitive to environmental light intensity is generally used to detect the ambient brightness and light intensity , in most cases with photoresistor sensor module GM, The difference is that , better directionality photodiode module that can sense a fixed direction of the light.
Two modules in the dark or light conditions reach the set threshold , DO port output high, when the external ambient light intensity exceeds a set threshold, the module D0 output low ;
3 digital outputs D0 small plates can be directly connected with the microcontroller through the microcontroller to detect high and low , thereby detecting changes in ambient light intensity ;
4 small plates digital output DO OUR relay module can directly drive , which can be composed of a photoelectric switch ;
5 small plates analog output AO can shop AD module connected through the AD converter , you can get a more accurate light intensity values



Product wiring instructions :
1, VCC positive power supply 3.3-5V
2, GND tied to power supply
3, DO TTL switching signal output
4, AO analog output
