Electronic Modules 4 black and white tracing obstacle avoidance sensor for detecting a tracking control board

: Large Image:Electronic Modules4 black and white tracing obstacle avoidance sensor for detecting a tracking control board

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0178
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

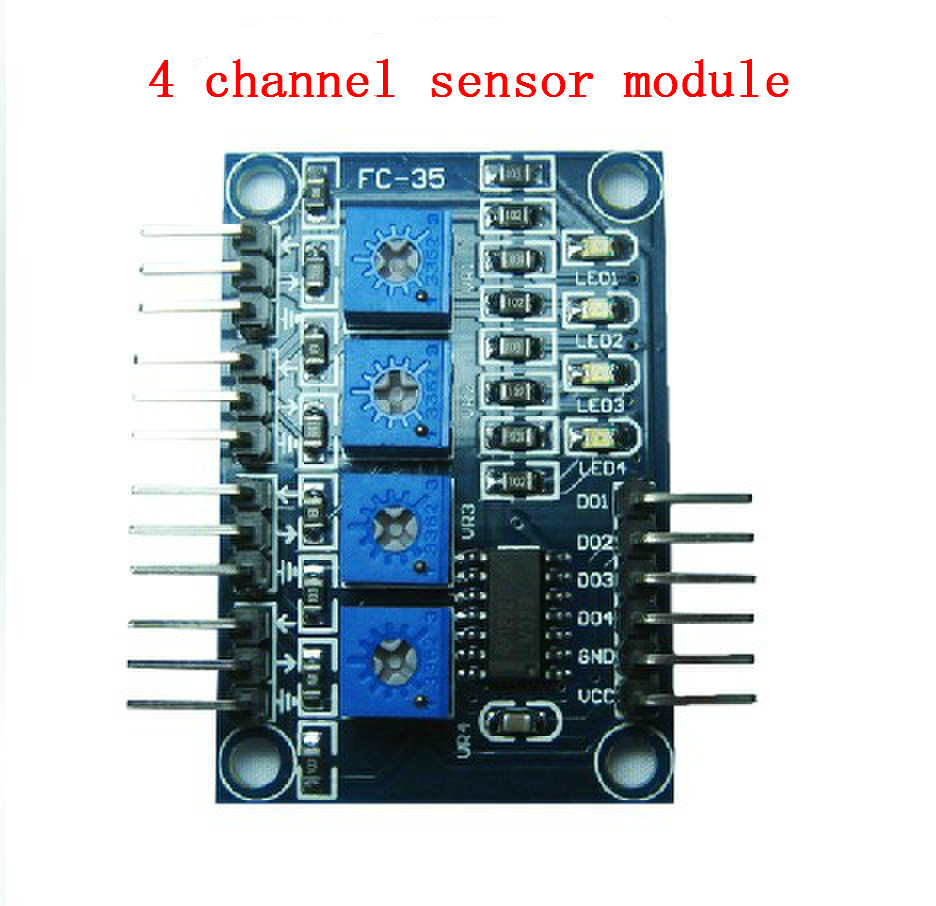

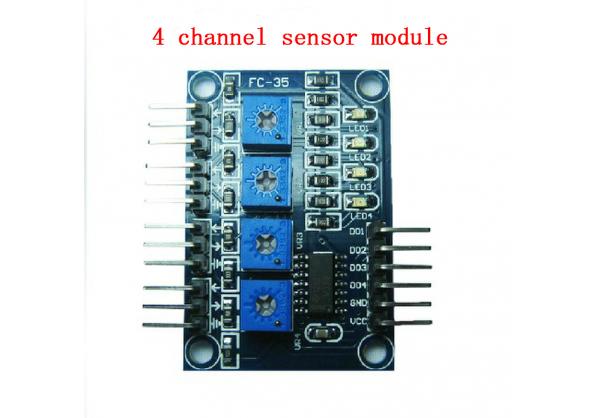

4 black and white tracing obstacle avoidance sensor for detecting a tracking control board

Specifications :

1. Working voltage : DC 3.3V-5V

2.Working Current: try to choose more than 1A power supply

3. Operating temperature : -10 ℃ - +50 ℃

4.Size: central control board 44mm × 30mm × 8.5mm ( Length × width × height )

Module Features:

Tracing obstacle avoidance functions: every channel infrared emission sensors continuously emit infrared , when the infrared emission is reflected or not reflected back but the strength is not large enough , the infrared receiving tube has been in the off state , the module the TTL output is high , the corresponding LED indicator remains off state ; when the detected objects in the detection range, and the intensity of the reflected infrared rays is large enough , the infrared receiver is turned on, a TTL output terminal of the module is low , indicating that the diode is lit.

Other sensors connected : When every one channel sensor impedance changes with the environment , resistance smaller , reaching potentiometers are adjusted threshold, the module 's TTL output is low , indicating that the diode is lit.

Module wiring instructions :

1.DO1-- 1 channel TTL level output

2.DO2-- 2 TTL- level output

3.DO3-- 3 TTL- level output

4.DO4-- 4 TTL- level output

5.GND-- tied to power supply

6.VCC-- positive power supply
