Electronic Modules Hall sensor Hall switch tachometer speed counter module

: Large Image:Electronic ModulesHall sensor Hall switch tachometer speed counter module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0184
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

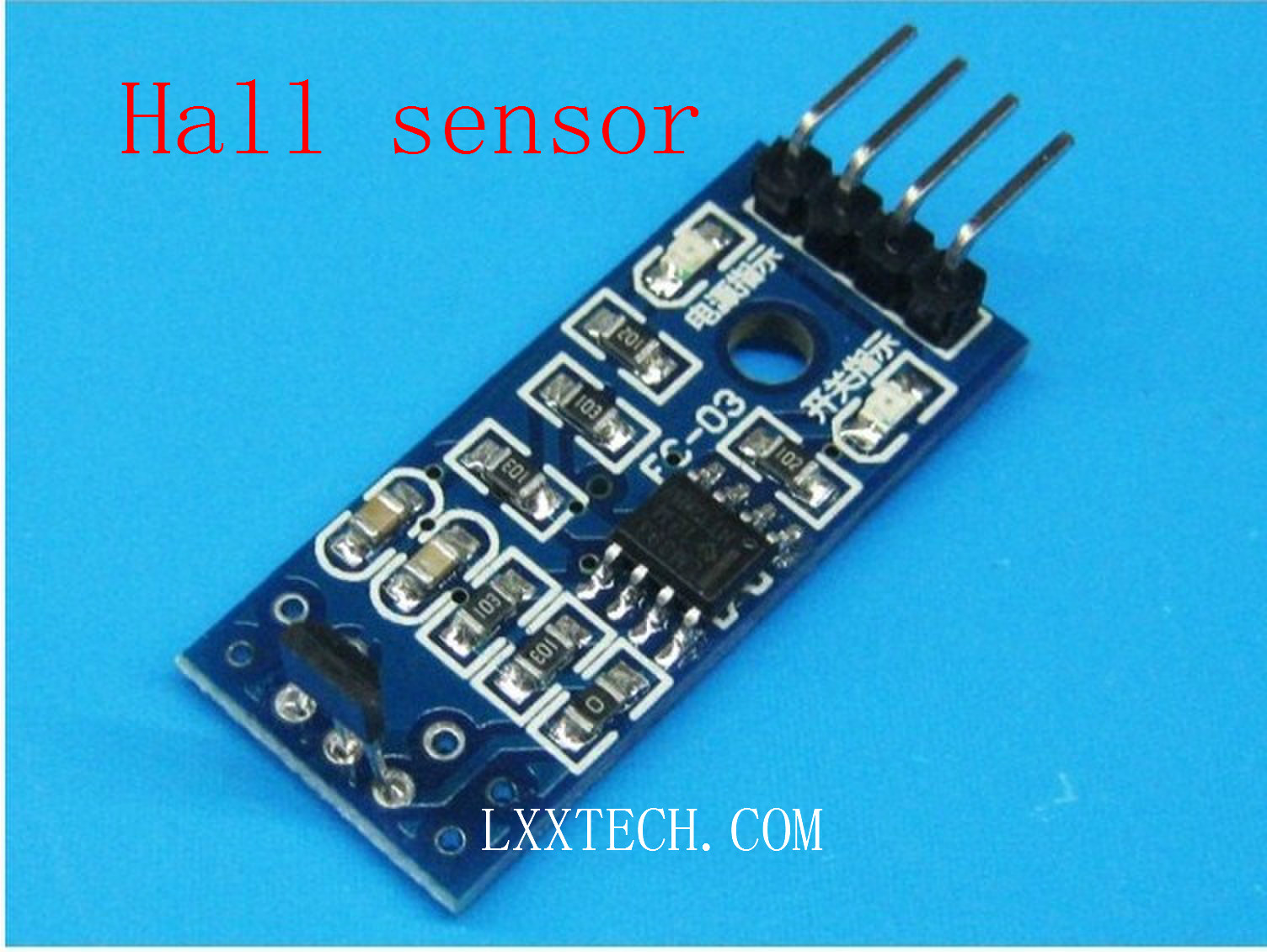

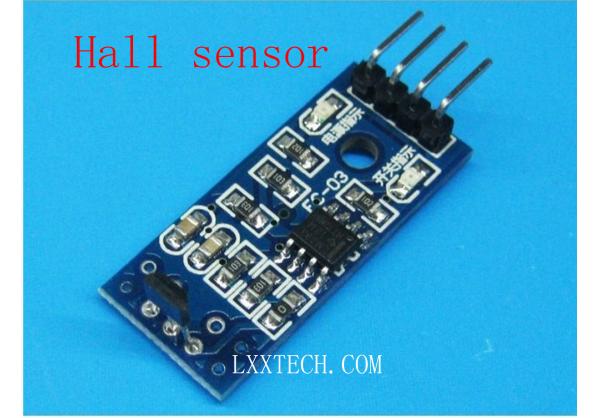

Hall sensor Hall switch tachometer speed counter module

Hall sensor module

For magnetic field detection

Sensor uses 3144E Hall Switch Sensor:

Module features:

1, small size, 32mm X 14mm

2, there is a mounting screw hole 3mm

3, you can use 3-5.5v DC power supply

4, the real-time output signal with Hall

5, there is sorting through the comparator output signal more stable after

6, the comparator output capability 16mA

7, a power indicator light

8, the comparator output is light

Module Interface Description:

VCC: positive power supply 3.3-5V

GND: tied to power supply

DO: digital output module has output low magnetic induction is

AO: Hall real-time voltage output

Product Tag : Hall sensor
