: Large Image:USB Blaster FPGA / CPLD Downloader REV.C

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0564
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

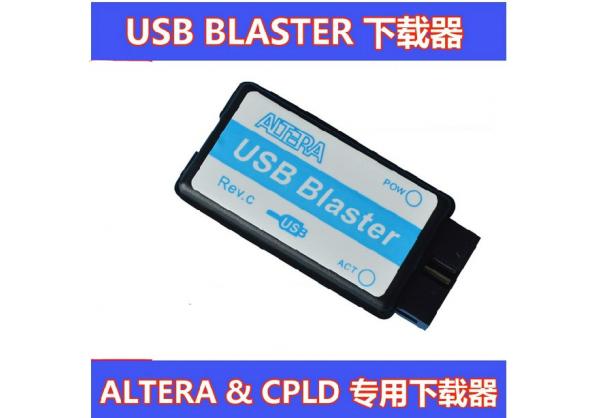

USB Blaster FPGA / CPLD Downloader REV.C

Feature:

1 . Steady support SignalTap II embedded logic analyzer function.

2 . ALTERA company supports a full range of devices.

◇ CPLD: MAX3000, MAX7000, MAX9000 and MAXII etc.

◇ FPGA: Stratix, StratixII, StratxIII, Cyclone, CycloneII, CycloneIII, ACEX1K, APEX20K and FLEX10K etc.

◇ active serial configuration device : EPCS1, EPCS4, EPCS16, EPCS64 etc.

◇ enhanced configuration devices : EPC1, EPC4 so on.

3 . Supports three download mode : AS, PS and JTAG;

4 . Communication and debugging support and Nios II embedded soft-core processors in the system , Rev.C latest version of firmware ! ;

5. Speed: parallel port download cable than usual ByteBlasterII six times faster ;

6. Easy to use : MiniUSB interface easy connection, two status LEDs makes debugging much easier.

7 . Must: currently laptop has almost eliminated the parallel port, so common was ByteblasterMV and ByteblasterII download lines can not be used in a notebook , so for notebook users, choose USB download cable that is convenient , it is a must.

8. Fully compatible with ALTERA USB Blaster, use, functionality and performance are consistent and ALTERA original download cable .

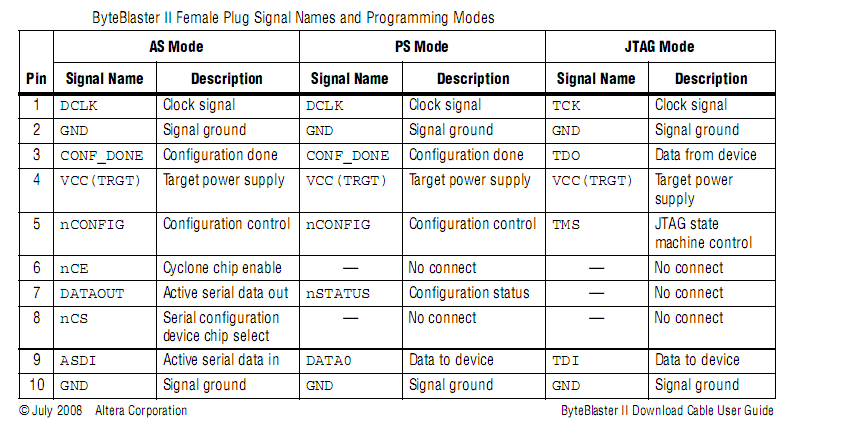

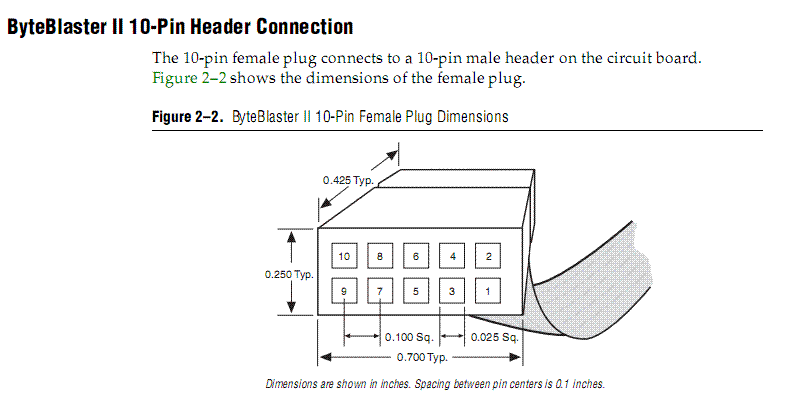

Pin definition: using Altera's standard, defined as follows:

System Configuration

1, support WindowsXP, Windows Vista, Windows7 (32bit/64bit) system, USB 2.0 interfaces;

2, Quartus II version 4.0 and above (the latest is the Quartus II12.0).

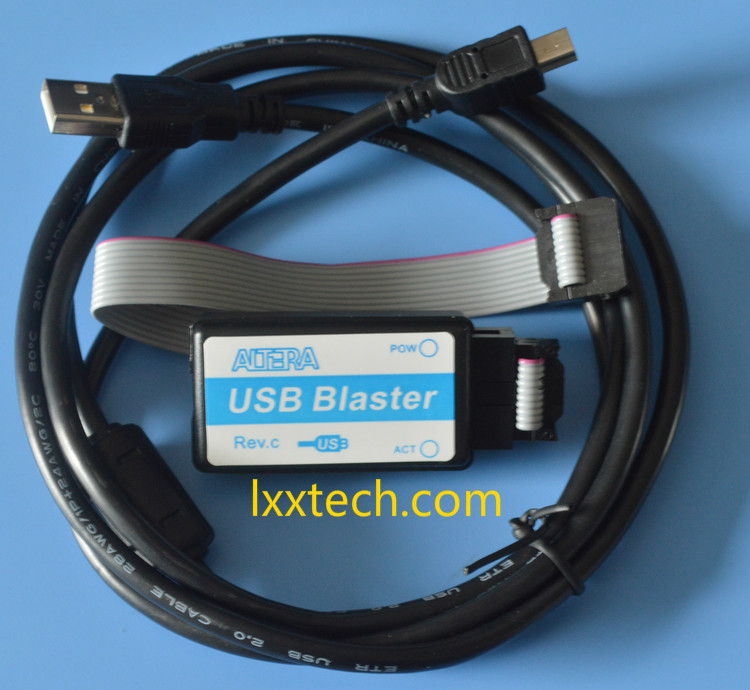

Shipping list

1,1 X USB Blaster Programmer

2,1 X USB Premium cable (with a ring)

3,1 X 10 pin JTAG cable
