C8051F Emulator / USB download / Debugger

 C8051F Emulator / USB download / Debugger factory  C8051F Emulator / USB download / Debugger factory  C8051F Emulator / USB download / Debugger factory

Large Image:C8051F Emulator / USB download / Debugger

Product Details:

Place of Origin: CHINA
Brand Name: LXXTECH
Model Number: LXX-0565
Certification:

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: Good price
Delivery Time:
Payment Terms: TT ,paypal,ESCROW
Supply Ability:
Detailed Product Description

C8051F Emulator / USB download / Debugger

Product Features :

1, the product can provide 3.3V and 5V power supply to the target board

2, the product D1 is red and green LED, for the green light running, stop for the red light

3, the product supporting high-quality USB cable is 1.5 m USB cable with magnetic ring


Products:

· Based on the original production company Silabs USB Debug Adaptor emulator design and production

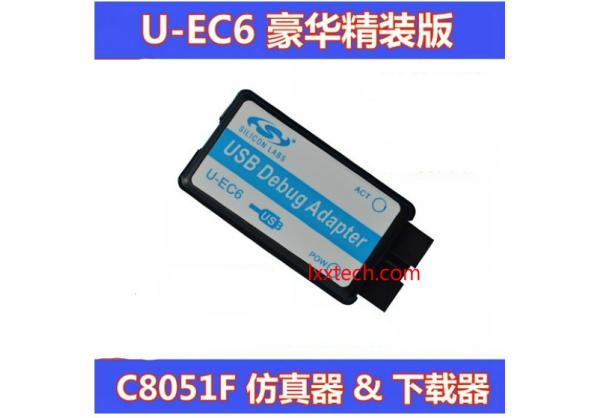

- Our emulator for the U-EC6, based on the company's USB Debug Adaptor Silabs simulator design and production , and Silabs company UDA debugger, the debugger domestic EC3/EC5 100% compatible .

- Download and online support program simulation .

- Programmer has full USB2.0 interface , driver-free installation , hardware enhanced protection ( reduction of hardware failure rate caused by improper use ) .

- Product dimensions of approximately 49 * 27 * 14mm, PVC waterproof surface paste, delicate and elegant appearance .

- All products using the machine placement , production, stable product quality assurance .

- Support WIN XP, WIN7.

· Supported Software

- With Keil, silabs the official launch of a variety of software, such as Silicon Laboratories IDE, FLASH Utility Programmer, Product Programmer, Hualong U-EC5 Chinese Download Software and IAR Embedded Workbench for MCS-51 software seamlessly debug .
· Supported Devices

- Support the full range C8051F MCU

JTAG interface C8051F00x C8051F01x C8051F02x C8051F04x C8051F06x C8051F12x C8051F2xx
C2 Interface C8051F3xx C8051F41x C8051F5xx C8051F7xx C8051F8xx C8051F9xx

- Products with automatic firmware upgrade feature, so that the emulator can realize the full range of C8051F chip simulation, and the subsequent production of C8051F MCU series.

Performance:

- Multi-circuit protection. The emulator has ESD protection circuit, with 500mA resettable fuse, which can effectively protect your computer USB power supply module, prevent computer motherboard chip burned.

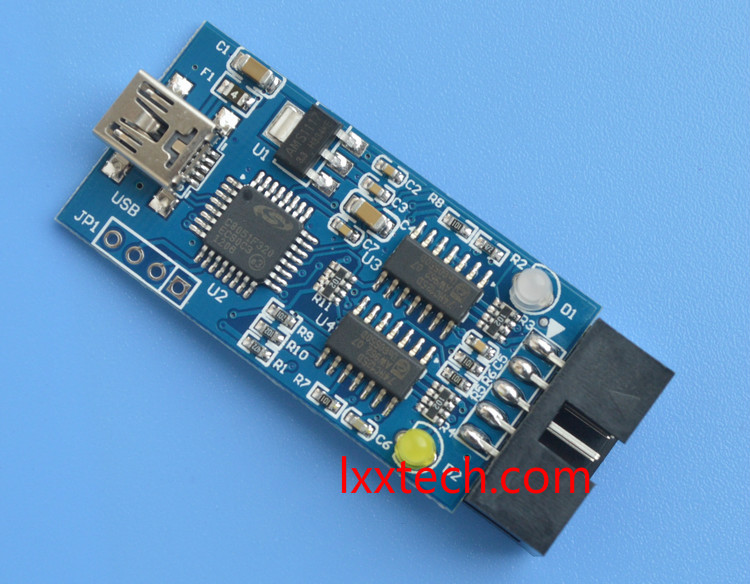

- Double buffer chip. The emulator inside a double buffer chip to prevent direct damage to the main chip.

- Dual power strong output. The emulator supports dual power output, output 5V/500mA and 3.3V/500mA, able to target board power supply, provide great convenience for developers directly.

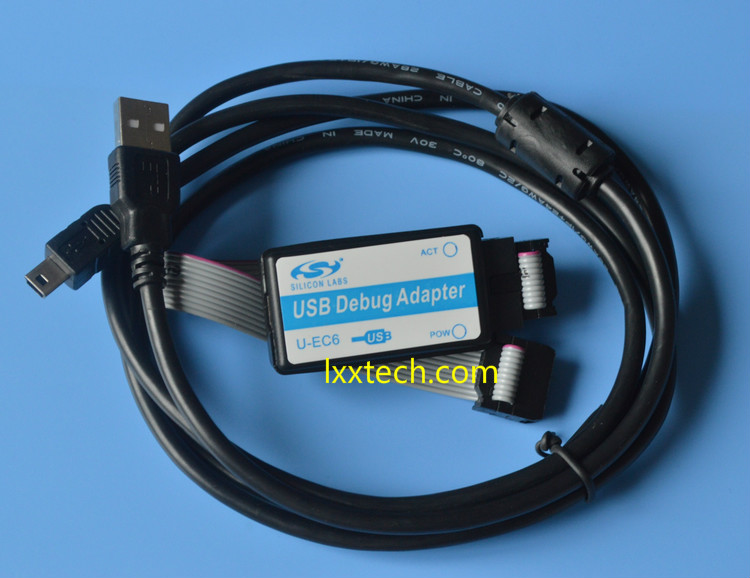

- Configure quality USB cable. Our configurable port A USB transfer cable with magnetic side port (black), about 1.5 meters, diameter of 5 mm coarse.

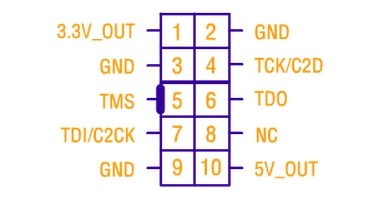

· Emulator Interface Definition

- Using C8051F dedicated JTAG / C2 interface.


- Support JTAG and C2 mode, debugging, support for up to four breakpoints.
- When using the C2 interface, you can only use two lines (C2CK, C2D).




Product Tag : C8051F Emulator
