Electronic Modules Flame sensor module, fire detection module, infrared receiver module

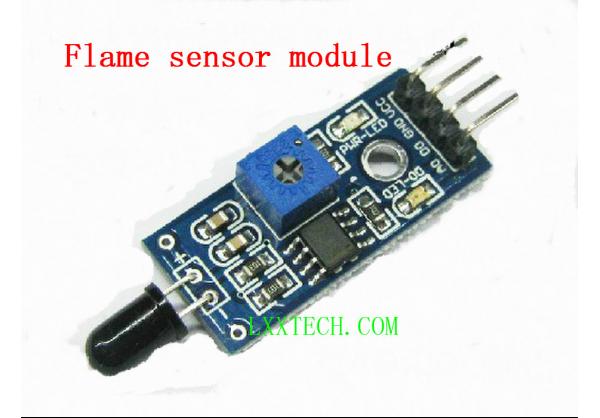

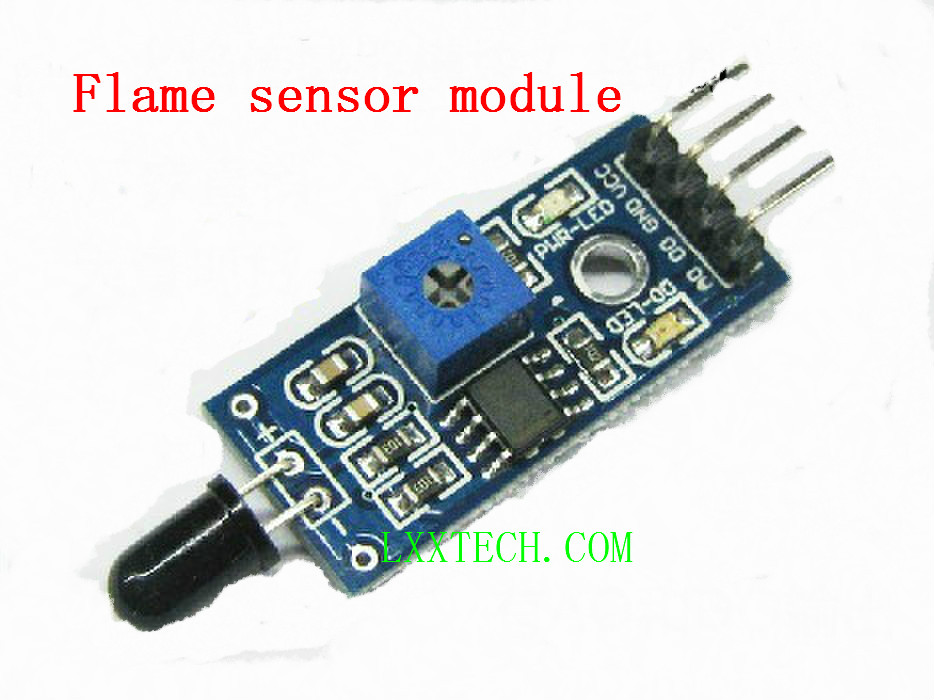

: Large Image:Electronic ModulesFlame sensor module, fire detection module, infrared receiver module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0203
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

Flame sensor module, fire detection module, infrared receiver module

Purpose:

Various flame , fire detection

Module Features :

1. can detect the flame or the wavelength at 760 nm to 1100 nm range of the light source, the test flame lighters distance of 80cm, the larger the flame , the greater the distance test

2 , the detection angle of 60 degrees, the flame spectrum particularly sensitive

3 , sensitivity adjustable ( shown in blue digital potentiometer adjustment )

4, the comparator output signal clean waveform is good , driving ability, than 15mA

5, with a precision potentiometer adjustable sensitivity adjustment

6 , Operating Voltage 3.3V-5V

7, the output in the form : DO digital switching outputs ( 0 and 1 ) and AO analog voltage output

8 , a fixed bolt holes for easy installation

9 , small plates PCB size : 3.2cm x 1.4cm

10 , using a wide voltage LM393 comparator

Product wiring instructions :

1, VCC positive power supply 3.3-5V

2, GND tied to power supply

3, DO TTL switching signal output

4, AO small plate analog output ( voltage signal )

Module for use:

1 , the flame flame sensor most sensitive to ordinary light is also a reaction , generally used as fire alarm and other purposes.

2, a small panel output interface can be directly connected with the microcontroller IO port

3 , the sensor and the flame to maintain a certain distance, so as not to damage the sensor temperature of the test flame lighters distance 80cm, the larger the flame , the greater the distance test

4 , small plates analog output mode and the AD conversion process , you can get higher accuracy

Product Tag : Flame sensor module 4pin
