HC-11 433MHz wireless RF serial UART module CC1101 5V 3V AT command

: Large Image:HC-11 433MHz wireless RF serial UART module CC1101 5V 3V AT command

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0143
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	30
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

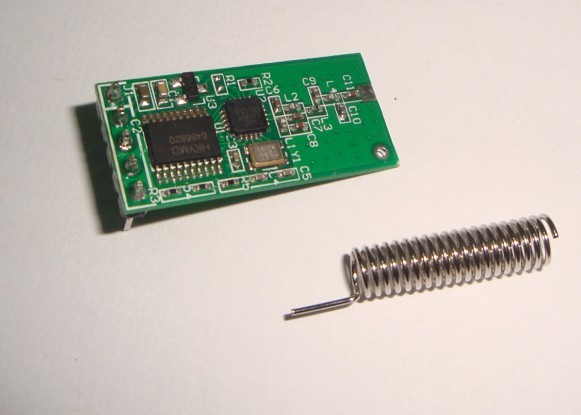

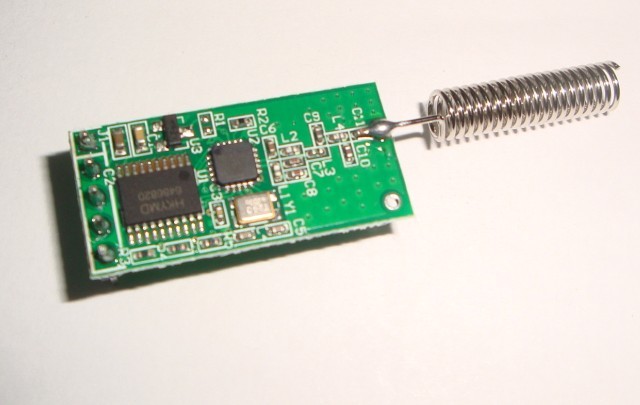

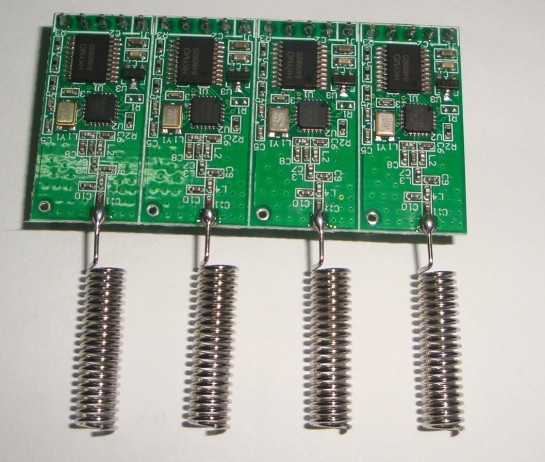

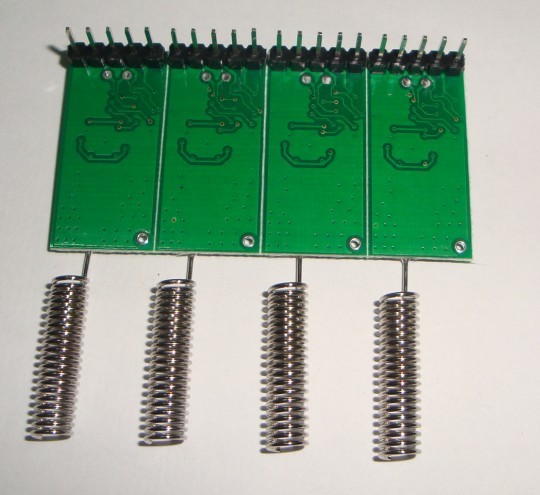

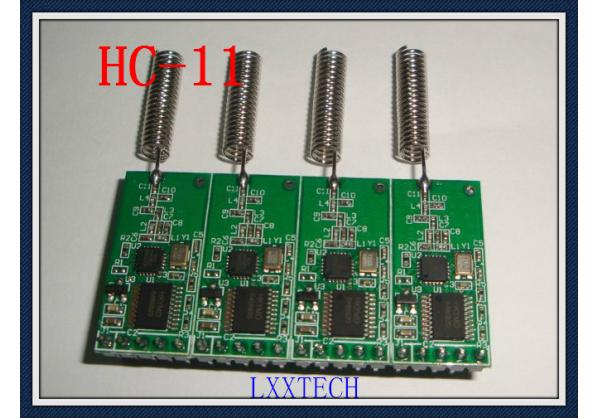

HC-11 433MHz wireless RF serial UART module CC1101 5V 3V AT command

1.3.4MA the Silent current ultra-low power consumption.

2.Long-range,on the open environment ,transmission distance can reach 200 meters straight line

3.3-5V wide voltage

4.Support for serial pass through mode to replace the serial cable (half duplex)

5.Support IO level to follow, also means that any form of transmission digital level models.

6.Support IO level latch mode

7.You can set the frequency and set the address, and dozens of instructions, automatic filter

8.Small size (13.5 × 28.2mm).

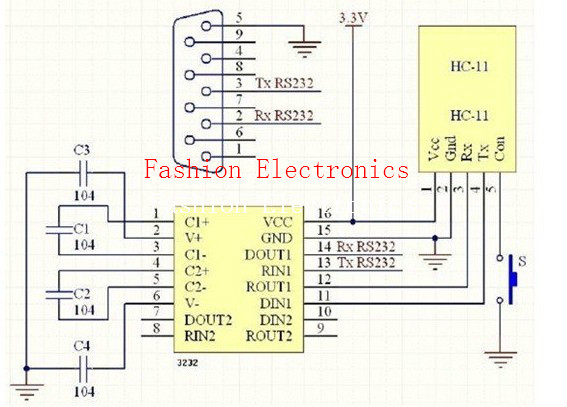

Wireless serial module HC-11 with the computer serial port connection

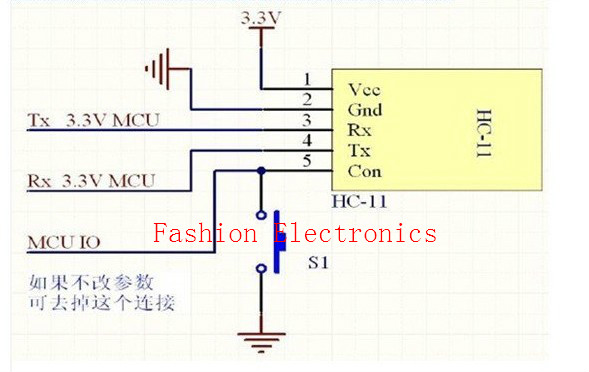

Wireless serial module HC-11 with 3.3V single-chip connections

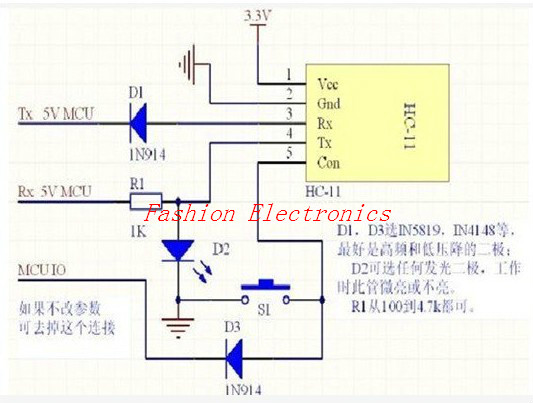

wireless serial module HC-11 with 5V MCU

Product Tag : HC-11
