Electronic Modules Infrared reflective sensor module, obstacle avoidance sensor module, infrared tube module

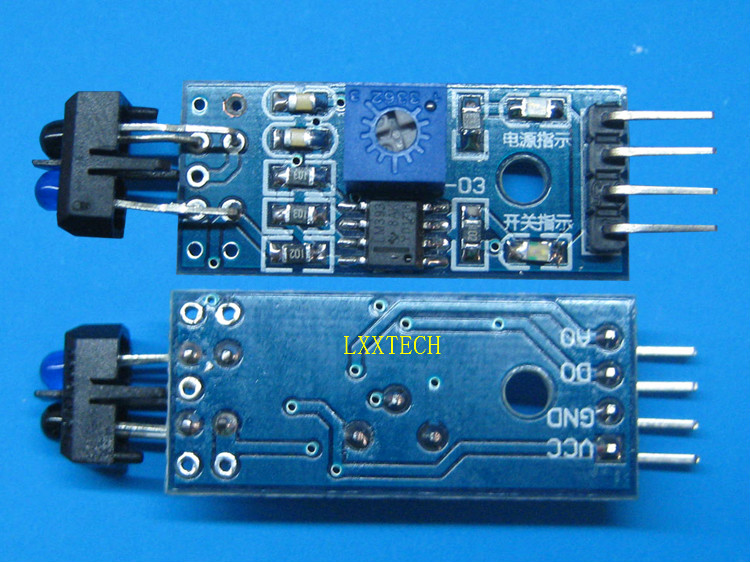

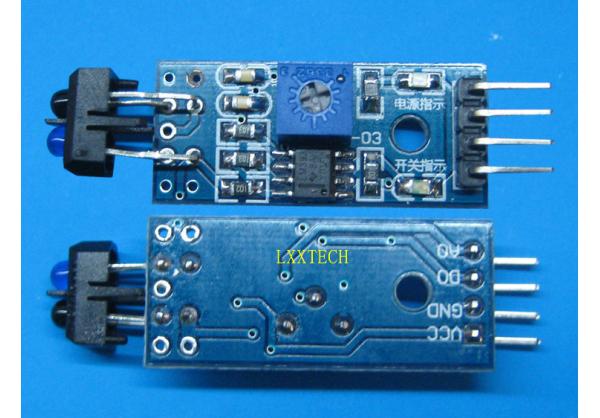

: Large Image:Electronic ModulesInfrared reflective sensor module, obstacle avoidance sensor module, infrared tube module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0181
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

Infrared reflective sensor module, obstacle avoidance sensor module, infrared tube module

Purpose:

1 .meter pulse data sampling

2 , fax paper shredders detection

3 , obstacle detection

4 , black and white line detection

5 , reflex

Module Features :

1, using infrared reflective sensor TCRT5000

2 , the detection distance : 1mm ~ 25mm Applicable

3, the comparator output signal clean waveform is good , driving ability, than 15mA.

4, with adjustable sensitivity adjustment potentiometer

5 , the working voltage of 3.3V-5V

6, the output format : Digital switching output ( 0 and 1 )

7 , a fixed bolt holes for easy installation

8 , the small board PCB size : 3.2cm x 1.4cm

9 , using a wide voltage LM393 comparator

Module Features:

TCRT5000 infrared sensor continuously emits an infrared emitting diode , when the infrared emission is reflected or not reflected back but the intensity is not large enough , the phototransistor has been in the off state , the output of the module is high, indicating diode has been in the off state ; be detected objects in the detection range, and the intensity of the reflected infrared rays is large enough to saturate the phototransistor , the output of the module is low , indicating that the diode is lit.

Product Tag : Infrared reflective sensor module
