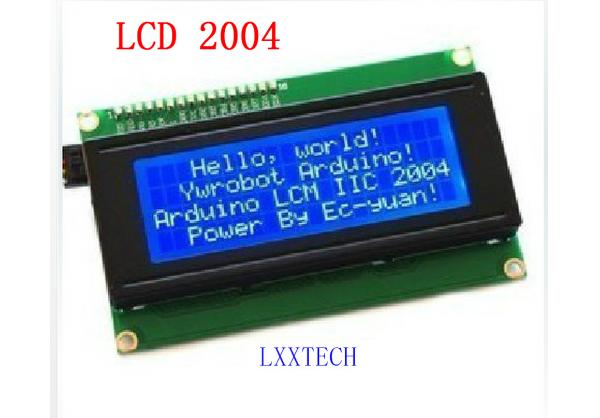

LCD Module LCD2004 20x4 Character LCD Display Module 5v blue backlight LCD 2004A

: Large Image:LCD Module LCD2004 20x4 Character LCD Display Module 5v blue backlight LCD 2004A

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0151
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

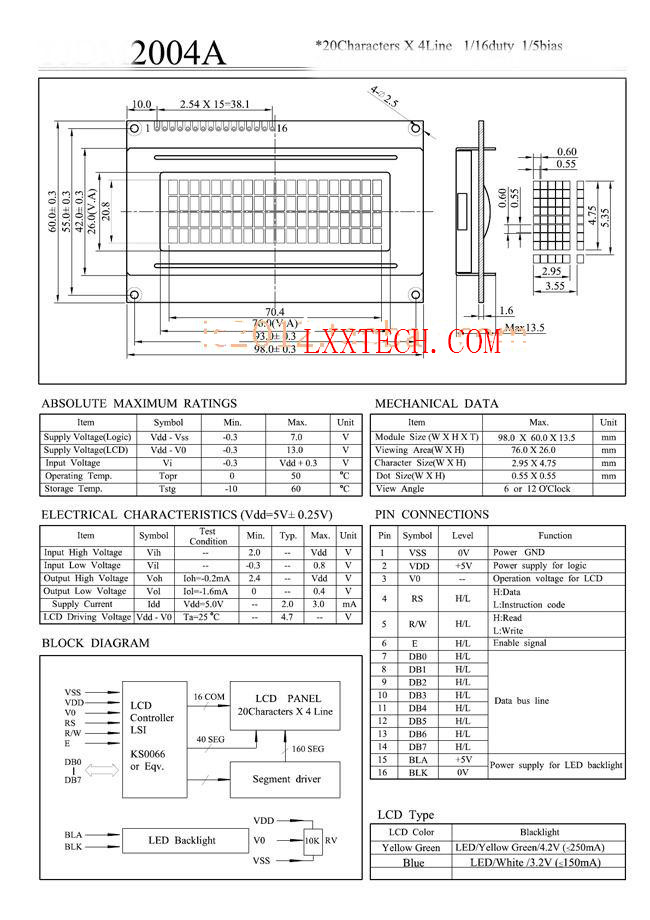

Type LCM2004A Pack COB

Dimensions

98.0mm × 60.0mm connection conductive tape

Sight size 76.0mm × 26.0mm single row parallel interface mode

Point size 0.55mm × 0.55mm Backlight type EL / LED

Character size 29.5mm × 47.5mm

Display 20 characters × 4 lines operating voltage of +5 V

Blue display screen

Operating temperature -10 ~ +60 ℃

Controller SPLC780

Storage temperature -20 ~ +70 ℃

Product Tag : LCD 2004 blue backlight 5V
