LCD Module 128*64 DOTS LCD module yellow and green screen 5V LCD LCD module 12864 LCD with backligh

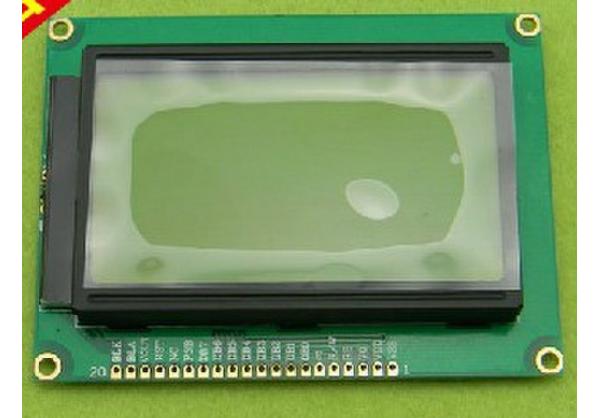

: Large Image:LCD Module128*64 DOTS LCD module yellow and green screen 5V LCD LCD module 12864 LCD with backligh

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0157
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

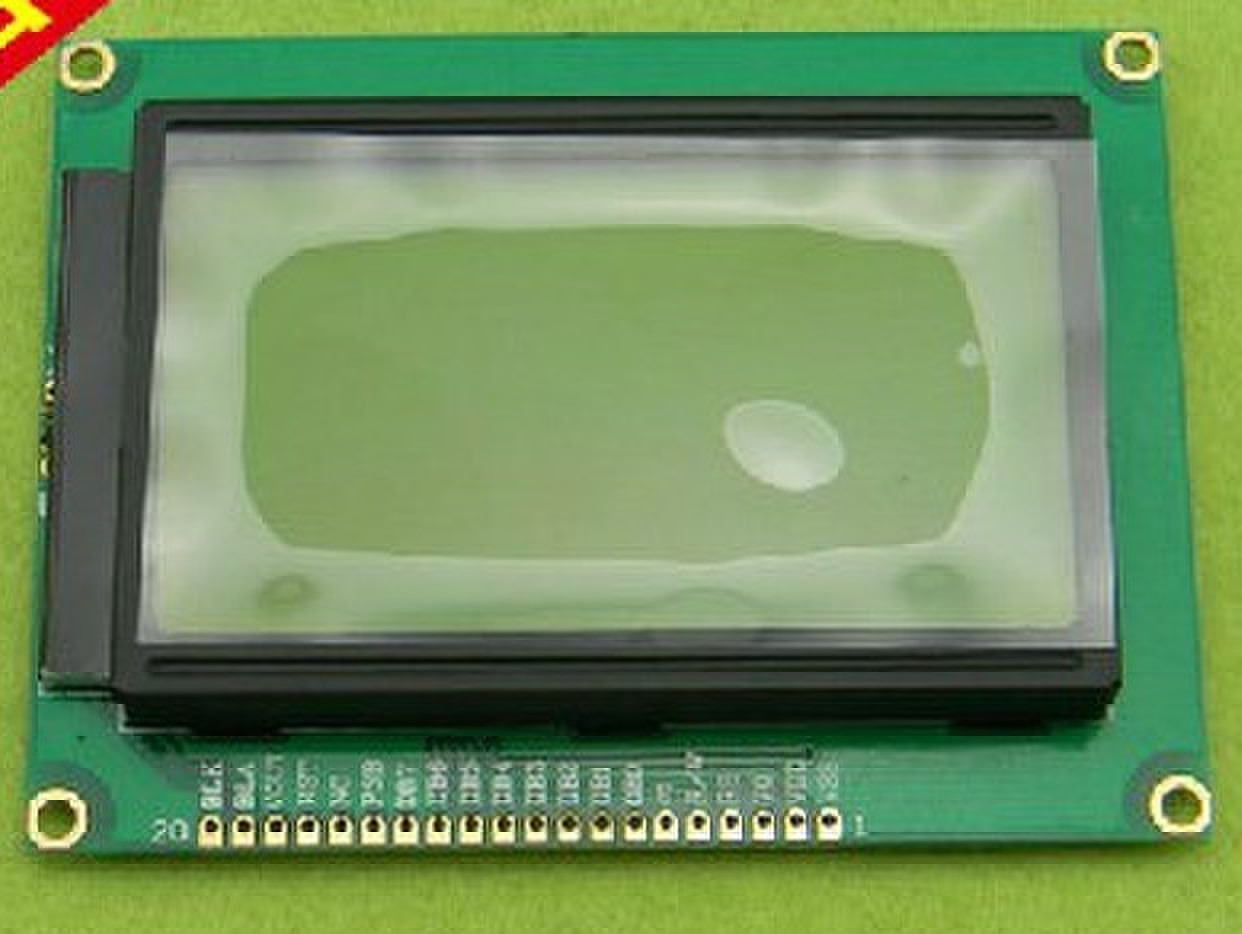

128*64 DOTS LCD module 5V LCD LCD module yellow and green screen 12864 LCD with backlight ST7920 Parallel port in stock

LCD12864 interface is defined as follows:

Parallel mode is as follows:

Pin 1 : VSS is the ground power supply

Pin 2 : VDD Positive power supply connected to 5V

Pin 3 : V0 LCD contrast adjustment for the end , connected to the positive power supply weakest contrast , when the power is grounded highest contrast

Pin4 : RS for register selection , the selection of high data registers, low selection instruction register.

Pin 5 : R / W When the R / W and E are high , data is read DB0 ~ DB7; when R / W is low , E from high to low , DB0 ~ DB7 the data is written to IR or DR register .

Pin 6 : E enable signal

pin 7 to 14 : DB0 ~ DB7 is eight bidirectional data line.

pin 15 : PSB parallel / serial option. When the PSB is high in parallel mode ; when PSB is low, the serial mode. If your LCD screen 15 feet CS1, that is, non-character LCD screen KS0108 controller , restaurant for sale can contact the customer service staff

pin 16 : NC NC . If your LCD screen 16 feet CS2, that is, non-character LCD screen KS0108 controller , restaurant for sale can contact the customer service staff

pin 17 :/ RESET reset pin . Active low suburbs.

pin 18 : VOUT LCD driving voltage output , do not pick .

pin 19 : A backlight power supply positive , then +5 V.

pin 20 : K backlight negative power , ground.

Serial modes are as follows:

Pin 1: VSS is the ground power supply

Pin 2: VDD Positive power supply connected to 5V

Pin 3: V0 LCD contrast adjustment for the end, connected to the positive power supply weakest contrast, when the power is grounded highest contrast

pin 4 : CS chip select signal, active high.

Pin 5: SID serial data input.

Pin 6: CLK serial synchronous clock.

pin 15 : PSB parallel / serial option. When the PSB is high in parallel mode; when PSB is low, the serial mode.
