: Large Image:LS20031 GPS 5Hz GPS receiver module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0453
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

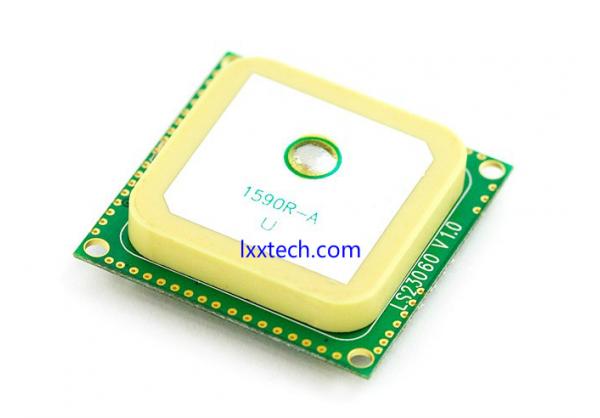

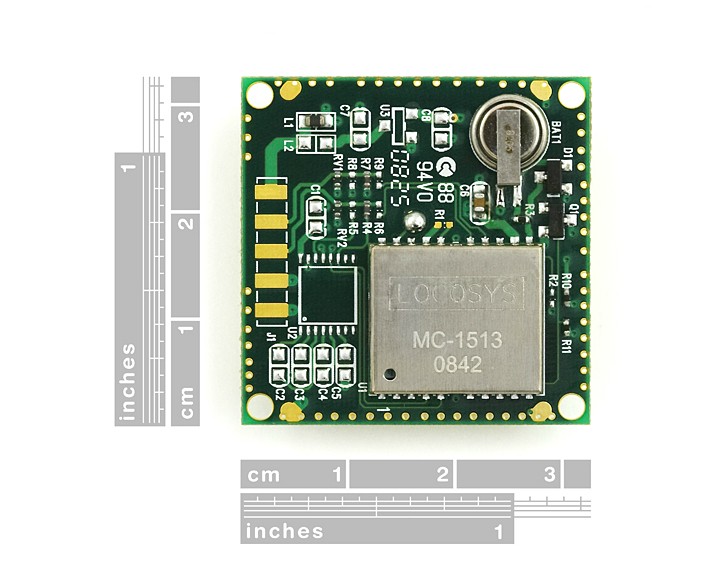

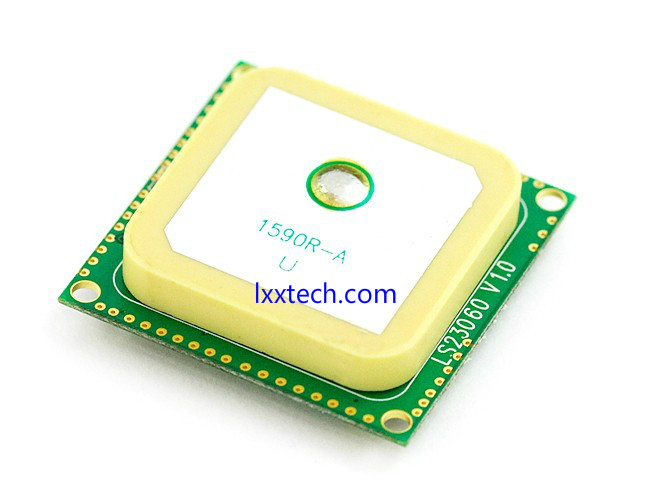

LS20031 GPS 5Hz GPS receiver module

LS20031GPS complete GPS receiver is a smart antenna receiver is 5Hz, which includes a built-in GPS antenna and receiver circuitry. This low-power unit location information generated by a staggering 5 times / sec. The receiver is based on LOCOSYS66 channel GPS receiver, using SMD type, MediaTek chip solution.

The GPS smart antenna can track up to 66 satellites in achieving fast time to first fix simultaneously. Navigation updates per second and low power consumption. It provides superior sensitivity, in the city, canyons and dense foliage have good performance. The ability to meet the sensitivity requirements of car navigation and other location-based applications.

Note: The new version of the module using MT3329MTK chipset.

Features:

MediaTek MT3318 solution

5Hz output

57600bps TTL serial interface

3.3V @ 41mA

66 Channel GPS

Fast TTFF at low signal level

Up to 10Hz update rate

Capable of SBAS (WAAS, EGNOS, MSAS)

Built-in micro battery to preserve system data for rapid satellite acquisition

LED indicator for fix or no fix
