Detailed Product Description

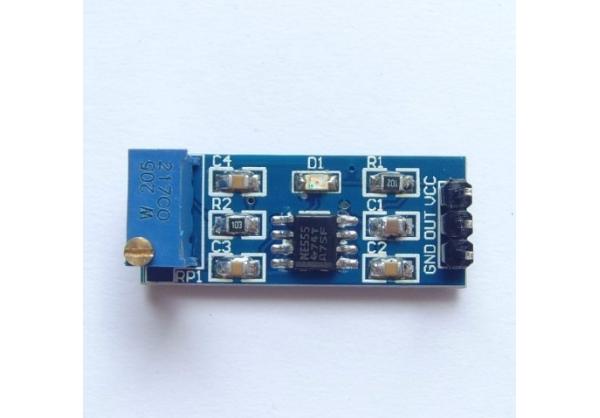

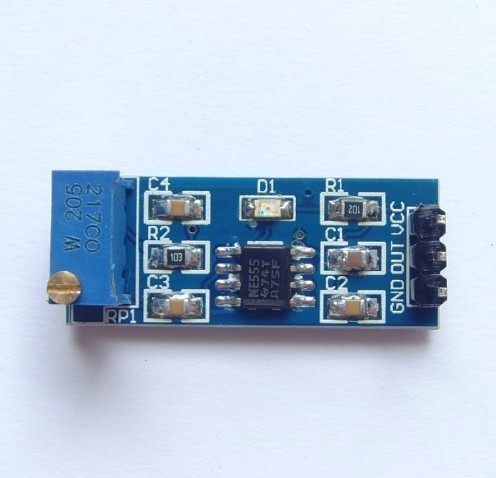

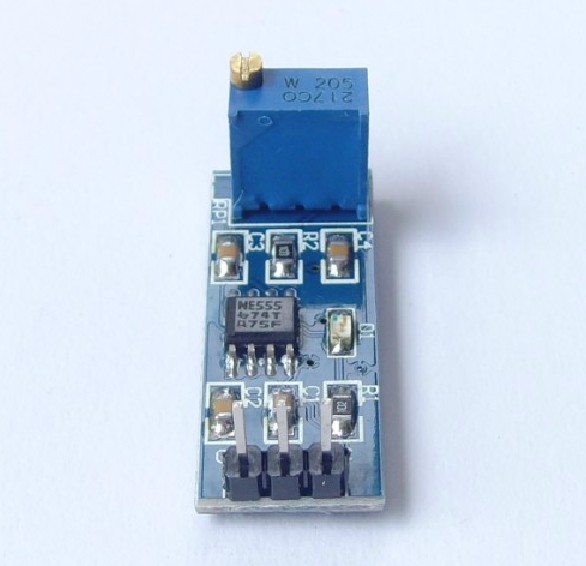

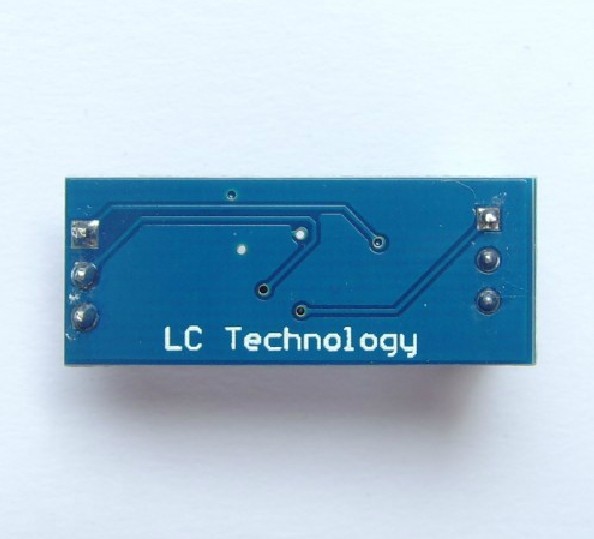

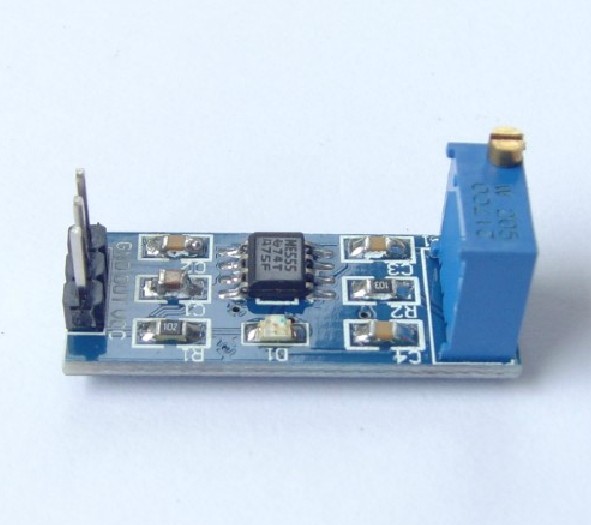

NE555 pulse generator module

Description:

1. onboard chip NE555

2, single output, the output duty cycle of about 50% of the square wave

3, onboard adjustable resistance, resistance to adjust the output frequency can be controlled

4, Onboard power indicator

5, the working voltage: 5 ~ 12V

6, board size: 29 (mm) x12 (mm)

Product Tag : NE555 pulse generator module
