Description :
OV7670 image sensor , small size, low voltage, providing single-chip VGA camera and image processor for all functions. By SCCB bus control , you can output the entire frame , sub-sampled , taking a variety of windows , etc. Resolution 8 affect the data . The product is VGA images up to 30 frames / sec. Users can fully control the image quality, data format and transmission. All image processing functions , including the process of gamma curves, white balance, saturation, color and so on through the SCCB interface programming.
● High sensitivity suitable for illumination applications
● Low voltage suitable for embedded applications
● Standard SCCB interface, compatible with I2C Interface
● RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output format
● Supports VGA, CIF, and a variety of sizes from CIF to 40x30
● VarioPixel sub- sampling mode
● automatically affect control functions include : automatic exposure control , automatic gain control, automatic white balance, automatic elimination of light stripes, automatic black level calibration image quality control including color saturation , hue , gamma , sharpness ANTI_BLOOM
● ISP has a compensation function to eliminate noise and bad points
● Support for image scaling
● compensation for loss of light lens
● 50/60Hz automatic detection
● Saturation automatically adjust (UV adjustment )
● Automatically adjust edge enhancement
● Noise Reduction automatically adjust
Key parameters:
( 1 ) a photosensitive array 640X480;
(2) IO voltage of 2.5V to 3.0V ( internal LDO for nuclear power 1.8V);
( 3 ) power operation 60mW/15fpsVGAYUV;
( 4 ) Sleep <20μA;
( 5 ) Operating temperature -30 ℃ to 70 ℃;
( 6 ) stability 0 ℃ to 50 ℃;
( 7 ) the output format ( 8 ) YUV/YCbCr4:? 2:2 RGB565/555/444 GRB4: 2:2 Raw RGB Data
Light
( 8 ) School size 1/ 6 "
( 9 ) 25 ° FOV
( 10 ) The maximum rate of 30fps VGA Zhen sensitivity 1.3V / (Lux-sec);
( 11 ) SNR 46 dB;
( 12 ) Dynamic range 52dB
( 13 ) Progressive browse mode ;
( 14 ) E- 1 line to 510 line exposure ;
( 15 ) Pixel Size 3.6μm x 3.6μm;
( 16 ) Dark Current 12 mV / s at 60 ℃;

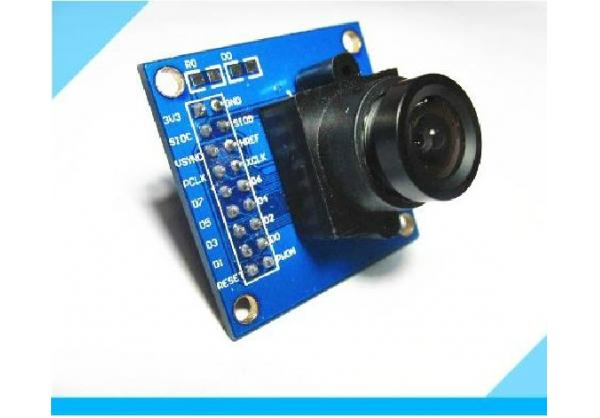

Module pin definitions as shown:
V3 ----- input supply voltage (3.3,5 V can also be recommended, but not recommended)
GDN ----- ground
SIO_C --- SCCB control interface clock (Note: Some low-level microcontroller requires a pull-up control, and I2C interface similar)
SIO_D --- SCCB serial data input (output) interface terminal (Note: Some low-level microcontroller requires a pull-up control, and I2C interface similar)
VSYNC --- frame sync signal (output signal)
HREF ---- line synchronizing signal (output signal)
Pixel clock PCLK ---- (output signal)
D0-D7 --- data port (output signal)
RESTE --- reset port (normally pulled high)
PWDN ---- Power Select mode (normal low)
