Relay&Relay Module 1 channel 30A relay module with opto isolation, support for high and low trigger 5V12V24V

: Large Image:Relay&Relay Module1 channel 30A relay module with opto isolation, support for high and low trigger 5V12V24V

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0238
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	30
Price:	good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

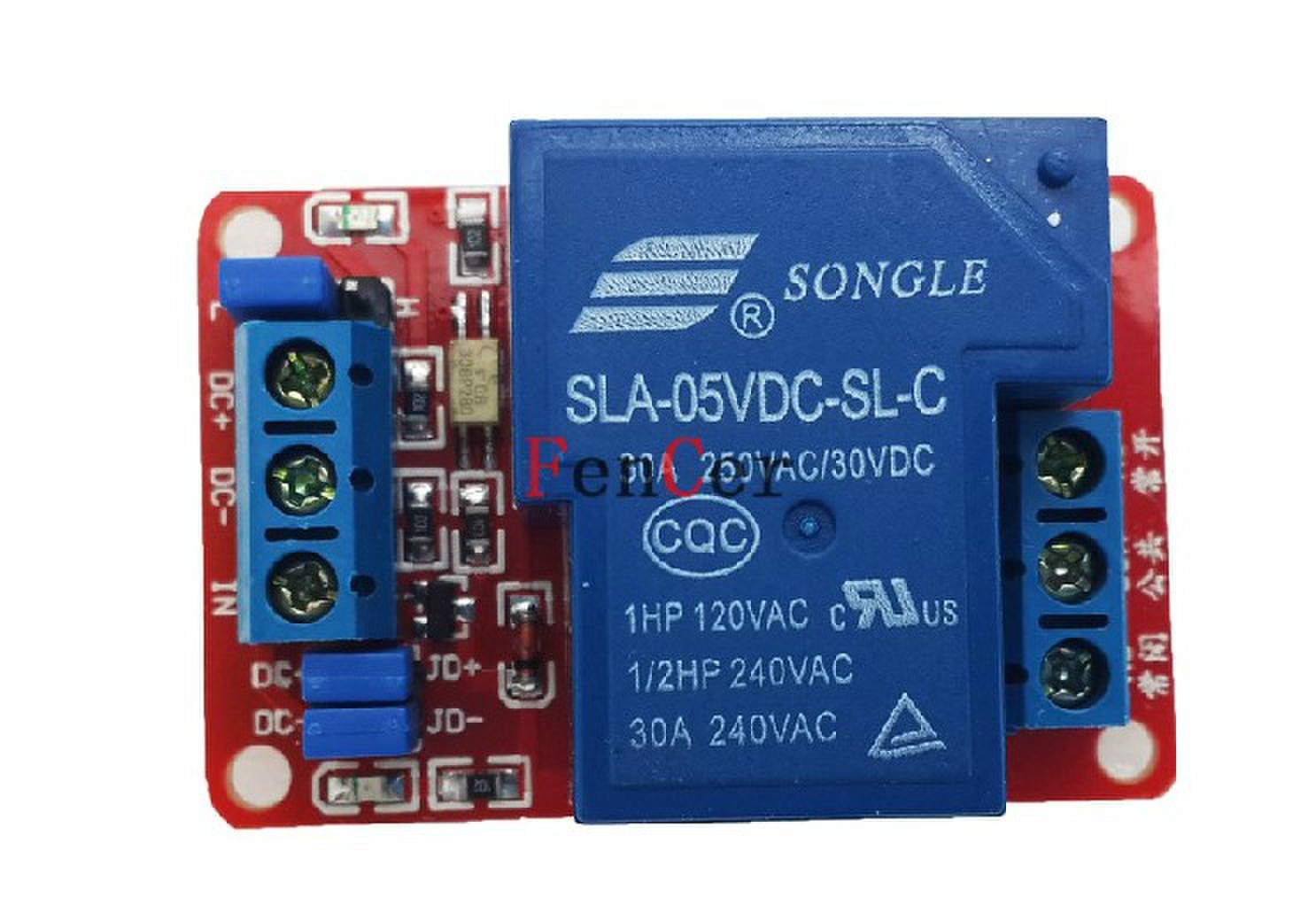

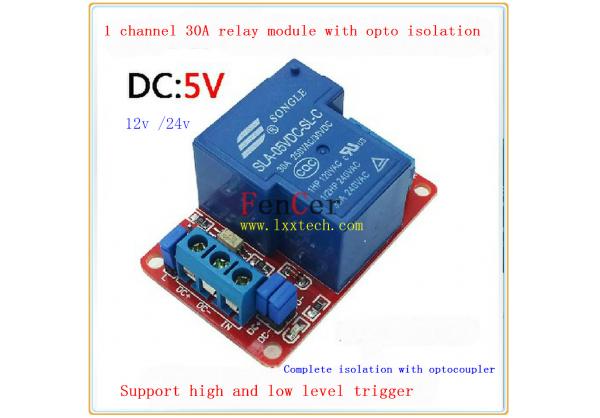

1 channel 30A relay module with opto isolation, support for high and low trigger 5V12V24V

description :

1, the module uses genuine quality 30A relay , normally open interfaces Maximum load : AC 250V/30A, DC 30V/30A;
2 , using SMD optocoupler isolation , driving ability , stable performance ; trigger current 5mA;

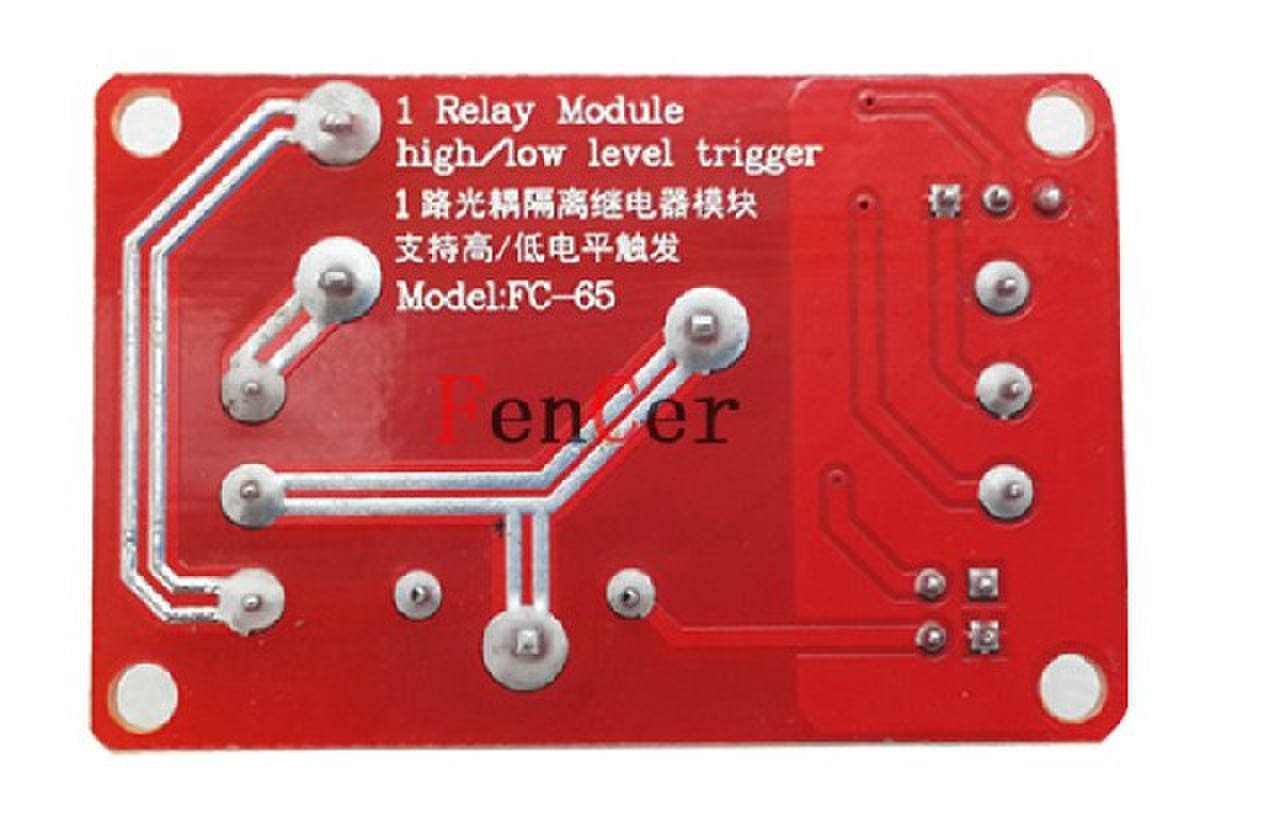

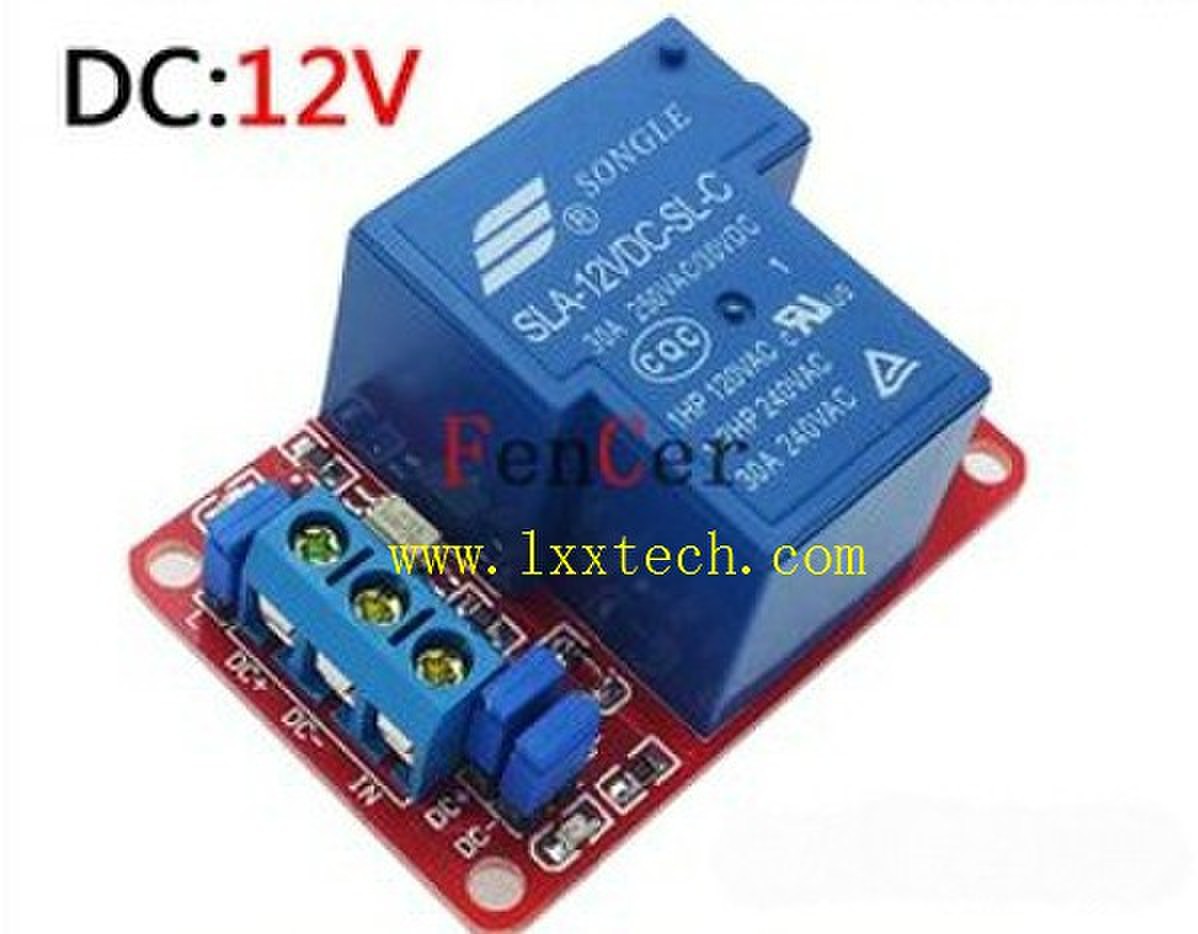

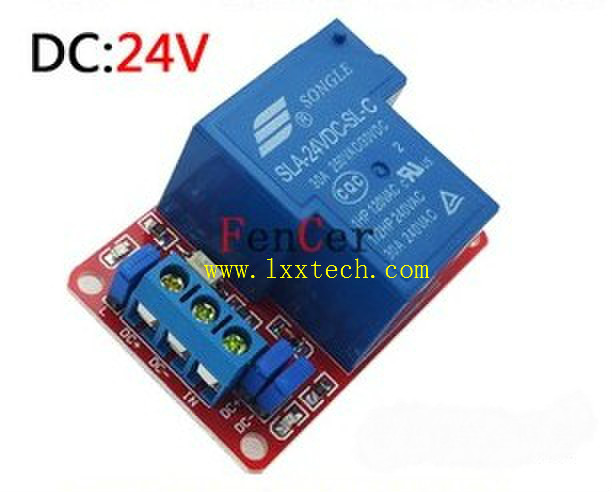

3 , the module Operating voltage 5V, 12V, 24V are available ;
4 , the module can be high or low trigger jumper settings
5 , relay control terminal voltage and trigger voltage energized jumper can be done completely isolated before and after class , to do before and after the two different voltage requirements ( such as a relay with 24V, trigger with 5V), you need to contact customer service to change parameters , prices have different ;
6 , fault-tolerant design , even if the control line is broken , the relay will not operate ;
7 , the power indicator ( green ) , the relay status indicator ( red )
8 , the interface design of human nature , all interfaces can be connected directly via terminal leads , very convenient
9 , module size : 50mm * 33mm * 24mm ( L * W * H ) , Net weight : 36g
10 with 4 fixing bolt holes , hole 3.1mm, 44.5mm * 27.5mm pitch

the technical parameters:
Relay version quiescent current Maximum current trigger current
  5V 5mA 190mA 2-4mA
  12V 5mA 80mA 2-4mA
  24V 5mA 50mA 2-4mA

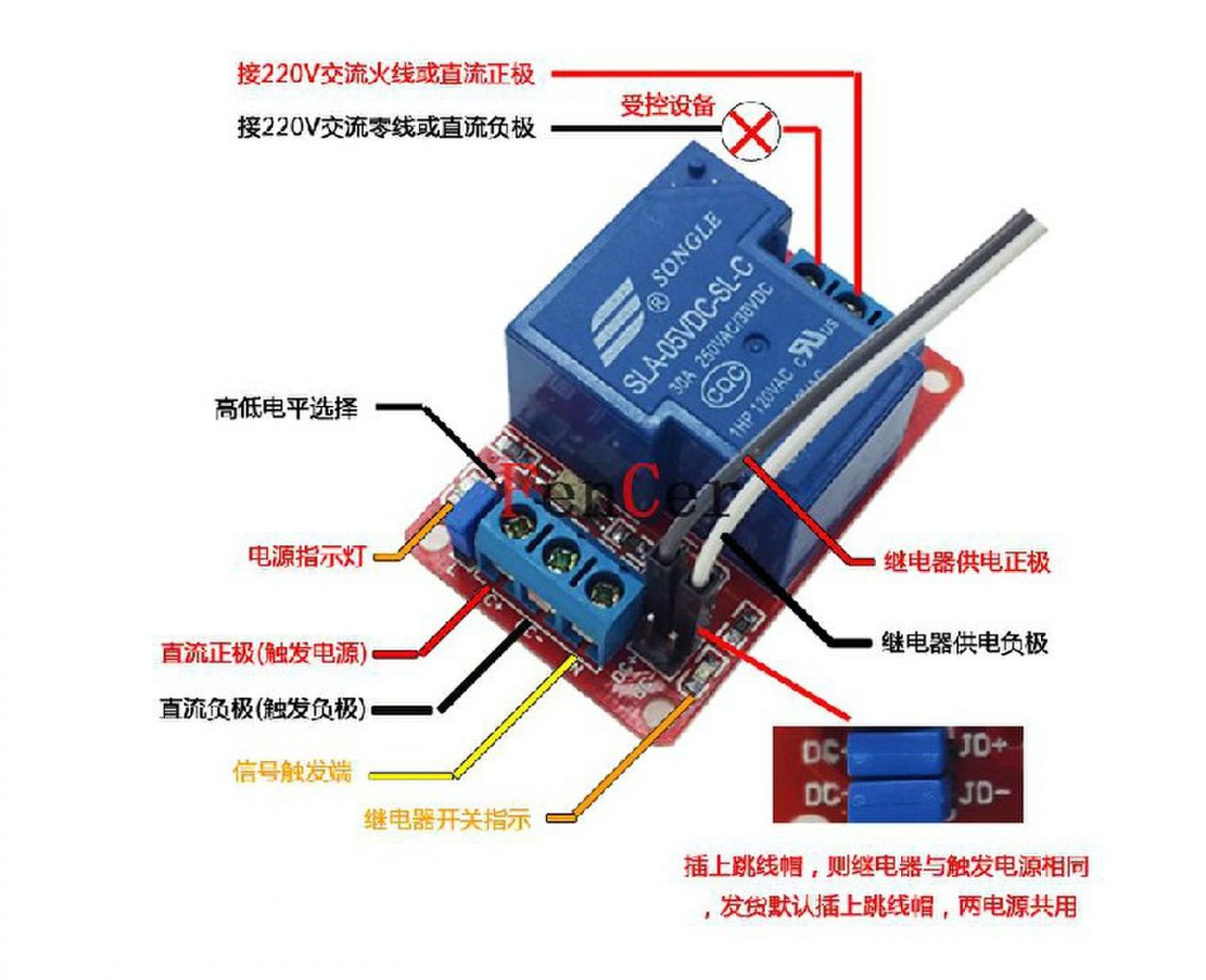

interface description :
1.DC +: Module DC power supply positive ( positive terminal voltage trigger )
2.DC-: module DC power supply negative ( negative terminal voltage trigger )
3.IN: signal triggers the end ( the same as the default trigger voltage and power supply )
4.JD +: positive voltage relay control terminal
5.JD-: negative voltage relay control terminal
6.DC + and JD + with jumpered , DC- and JD- use jumpered , the relay control terminal end and trigger the same voltage
7 High level triggered mode selection , as shown , jumpers and L-side connection , IN terminal is low triggering, and H is high when the trigger is connected
8 Normally Closed (NC): relay normally closed terminal
9 common terminal (COM): relay common
10 normally open (NO): normally open relay
