Relay&Relay Module 5V Thermistor sensor module Relay Module

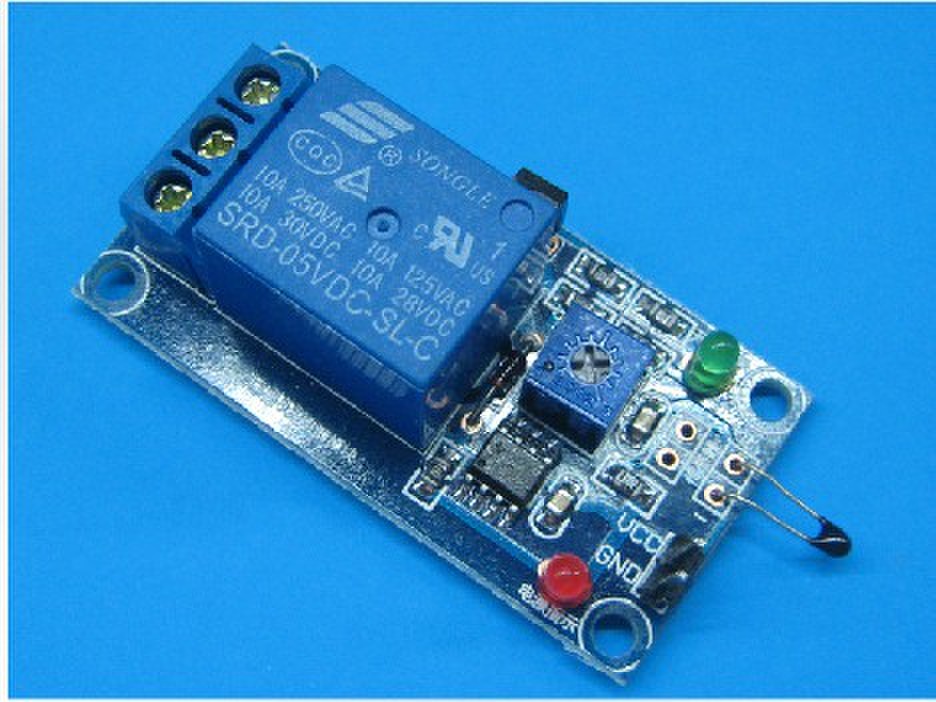

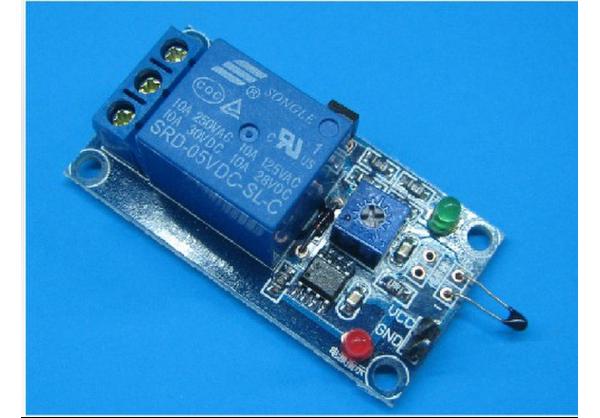

: Large Image:Relay&Relay Module5V Thermistor sensor module Relay Module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0309
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

5V Thermistor sensor module Relay Module

Uses:

Temperature detection, adjusted by potentiometer point to a valve to control the appropriate temperature , with relay outputs connected directly to AC power products.

Module Features :

1 , automatic temperature control , lower than the temperature start, or higher than the temperature starts, select the output termination normally open when the temperature is higher than the set started, normally closed contact is below the set temperature starts ;

2, the comparator outputs directly drive relays can be connected to 220V AC or other equipment

3 , adjust the temperature distribution position ;

4, the sensor interface can be installed pin , plus Leaded thermal sensor ;

5 , external dimensions : 50x26mm, thickness 19mm, has four 3mm bolts holes for easy installation.

Electrical parameters :

Supply voltage : 5VDC

Current : more than 150mA

Load : 250V 10A AC or 30V 10A DC

Module for use:

1.thermistor sensitive to the temperature module , generally used to detect an ambient temperature , the replacement of the thermal sensor to detect water temperature type .

2 , the module when the ambient temperature exceeds the set threshold, the relay , often beginning with a common terminal connected, when the ambient temperature is below the set threshold, the relay off , the common terminal and the normally closed terminal connected;

3 , common, normally open, normally closed three ports is equivalent to a dual-control switch, relay coil power , often beginning with a common terminal conduction, when there is no electricity , common and normally closed terminal conduction ;

Shipping list :

Temperature sensors plus a relay module with a thermistor

Product example:

Water temperature monitoring, indoor temperature monitoring , auto temperature monitoring.

Product Tag : 5V Thermistor sensor module Relay Module
