Relay&Relay Module 5V relay module flame sensor module ,Flame, fire detection, fire alarm

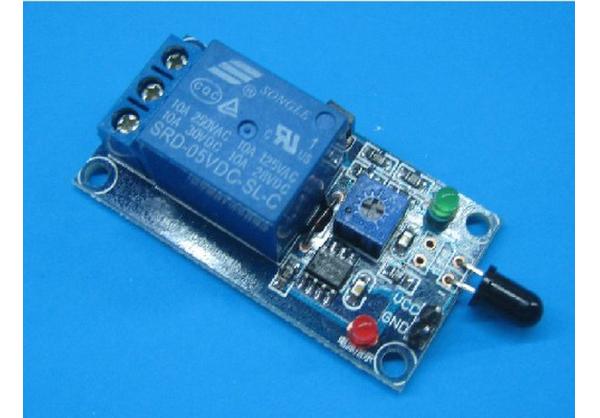

: Large Image:Relay&Relay Module 5V relay module flame sensor module ,Flame, fire detection, fire alarm

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0310
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

5V relay module flame sensor module ,Flame, fire detection, fire alarm

Uses:

Various flame , fire detection, relay output can be connected to 220V high current electrical equipment

Module Features :

1. can detect a flame or in a 760 nanometer wavelength of ~ 1100 nm range of the light, lighter flame test distance of 80cm, for the greater flame , the farther the distance test

2 , the detection angle of 60 degrees or so , particularly sensitive to the flame spectrum

3 , sensitivity adjustable ( shown in blue digital potentiometer adjustment )

4, the comparator output directly trigger the relay

5 , external dimensions : 50x26mm, thickness 19mm, with fixed bolt hole for easy installation

6, the output terminal blocks with blue , easy wiring

Electrical parameters :

Supply voltage : 5VDC

Current : more than 150mA

Load : 250V 10A AC or 30V 10A DC

Module for use:

1, the flame sensor flame most sensitive to sunlight is also a reaction , generally used as a flame alarm purposes.

2 , by adjusting potentiometer, you can set the intensity of the flame sensor senses when the flame exceeds the set threshold, the relay , often beginning with a common terminal is turned on , when the flame is below the set threshold, the relay off , common and normally closed terminal connected;

3 , common, normally open, normally closed three ports is equivalent to a dual-control switch, relay coil power , often beginning with a common terminal conduction, when there is no electricity , common and normally closed terminal conduction ; ,

4 , with the flame sensor to maintain a certain distance , so as not to damage the sensor temperature , the flame of a lighter test distance 80cm, for the greater flame , the farther the distance test

Shipping list :

Flame sensor plus a relay module

Product Tag : 5V relay module flame sensor module
