Electronic Modules Sound sensor module, voice sensor, sound detection module, whistles module

: Large Image:Electronic ModulesSound sensor module, voice sensor, sound detection module, whistles module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0182
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	30
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

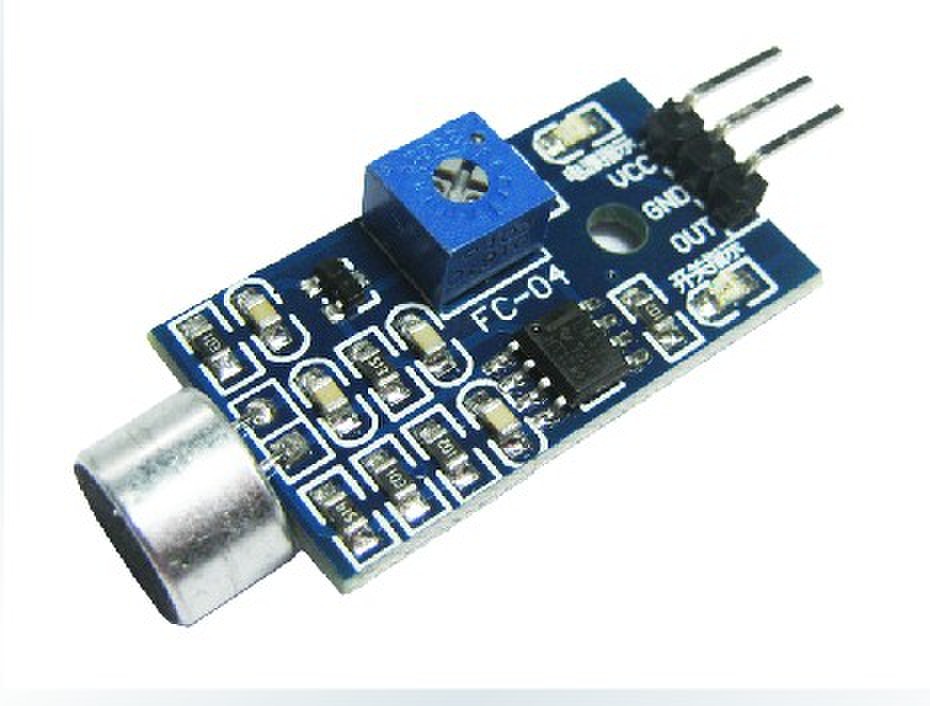

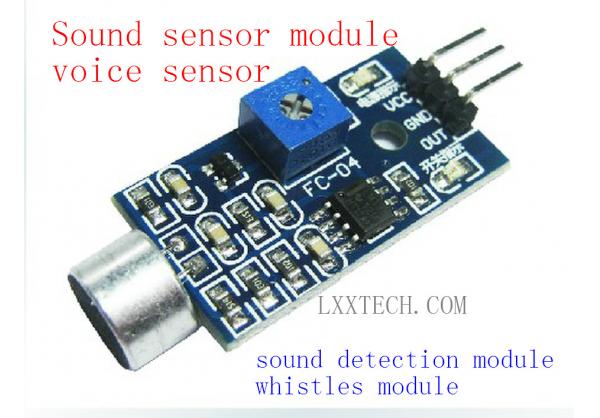

Sound sensor module, voice sensor, sound detection module, whistles module

Purpose:

Sound sensor detects

Product Features:

1. can detect ambient sound intensity , use NOTE: This sensor can identify the presence or absence of sound ( based on vibration principle ) does not recognize the size of the sound or the sound of a specific frequency

2 adjustable sensitivity ( shown in blue digital potentiometer adjustment )

3 Operating voltage 3.3V-5V

5 Output format digital switching outputs ( 0 and 1 high-low )

6 with fixed bolt hole for easy installation

7 small plates PCB size : 3.2cm * 1.7cm

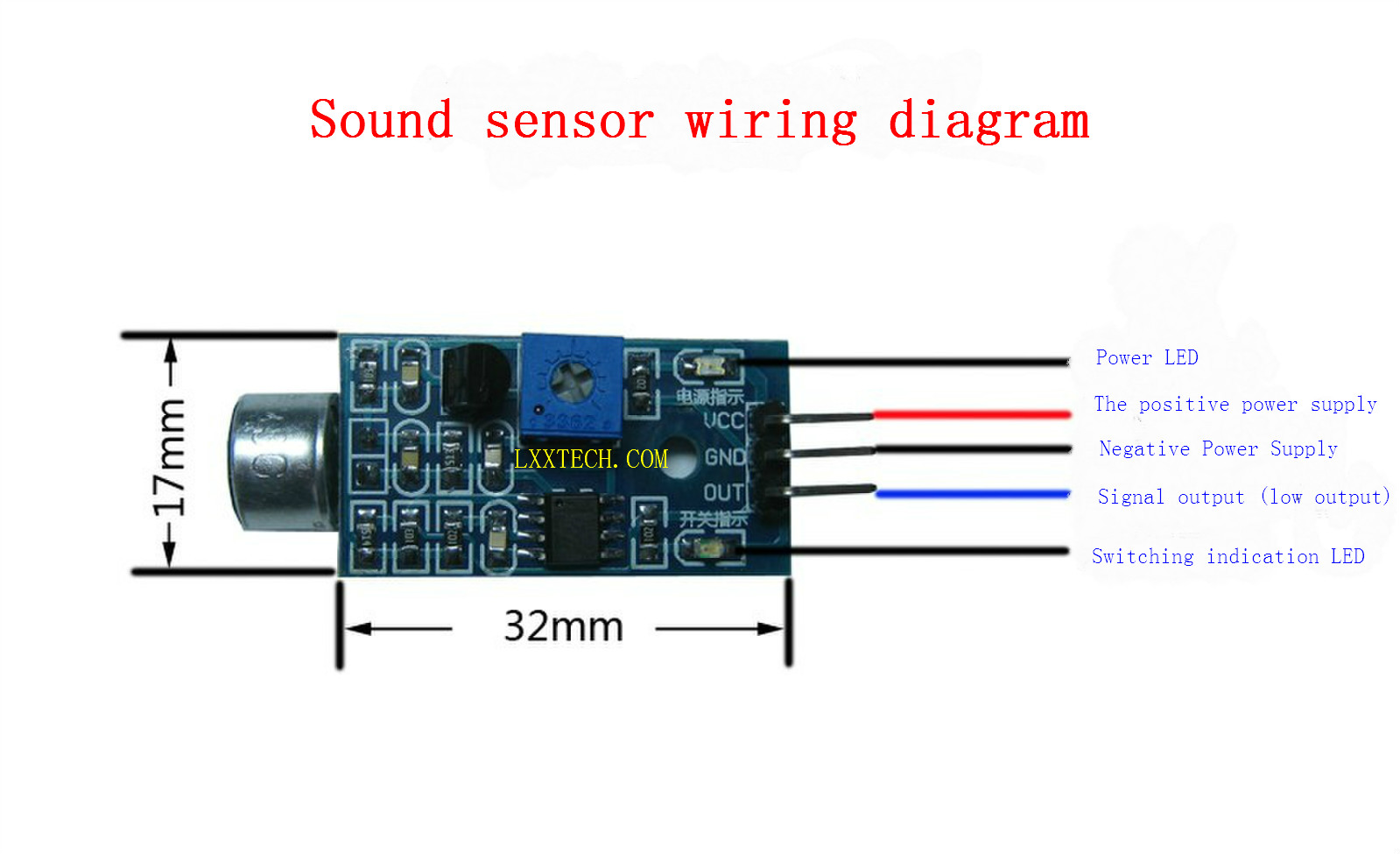

module wiring instructions:

1.VCC external 3.3V-5V voltage ( 5v microcontroller and can be directly connected to 3.3v MCU )

2.GND external GND

3.OUT small plate switch output interfaces ( 0 and 1 )

instructions:

1. sound intensity sound module most sensitive to the environment , usually used to detect ambient sound intensity .

2. strength of the ambient sound source module is not the threshold value , OUT output high, when the external ambient sound intensity exceeds the threshold , the module OUT output low ;

3 .small plates Digital output OUT can be directly connected with the microcontroller through the microcontroller to detect high and low , thereby to detect ambient sound ;

Product Tag : Sound sensor module
