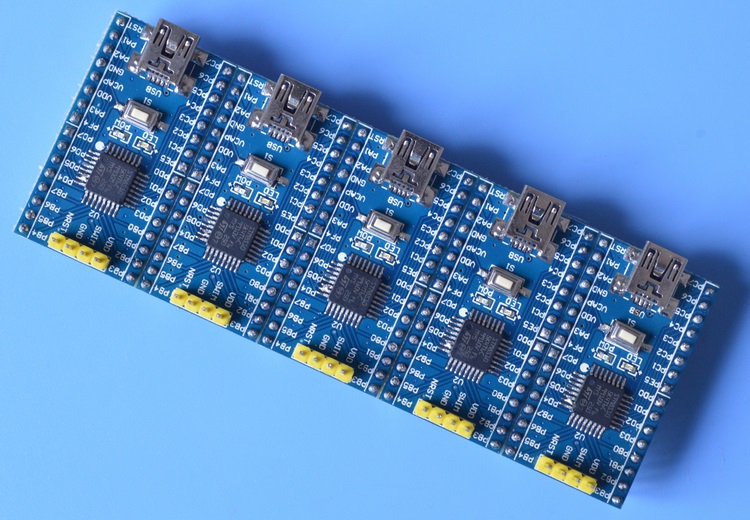

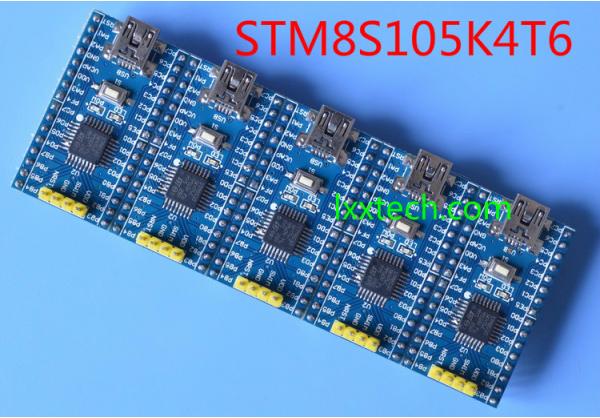

STM8S development board core board, the minimum system board, STM8S105K4T6 core board

STM8S_MiniKit_32 core board main features:

1: Use STM8S105K4T6 as the master IC

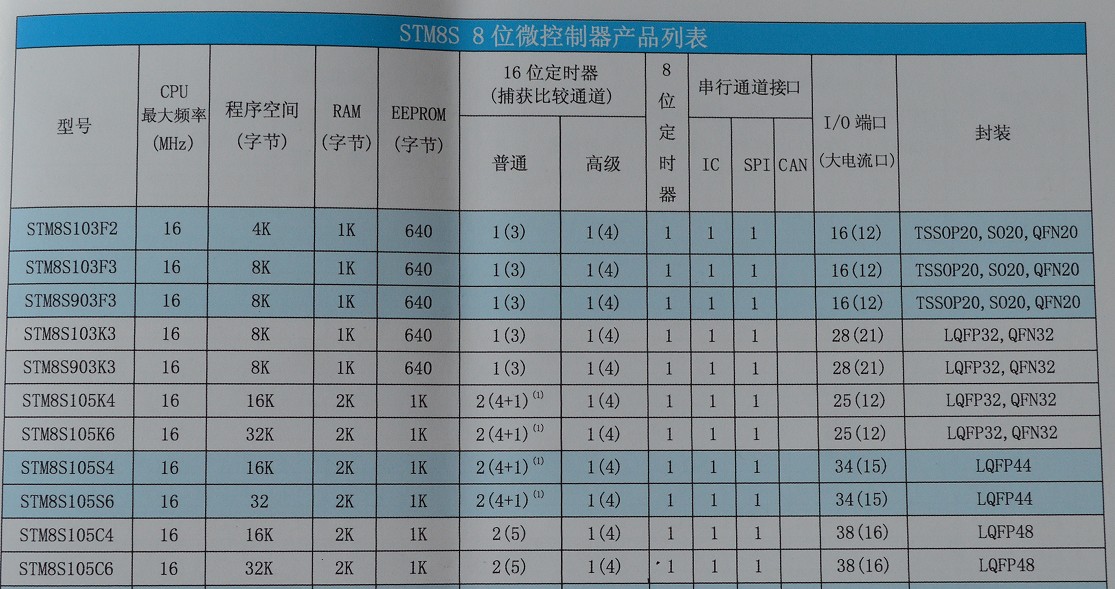

Chip resource description:

2: leads all pins next to the pin marked out the pin functions, welded pin

3: Support SWIM debug mode

4: USB MINI line to take power, or 2.54 to take power

Product details:

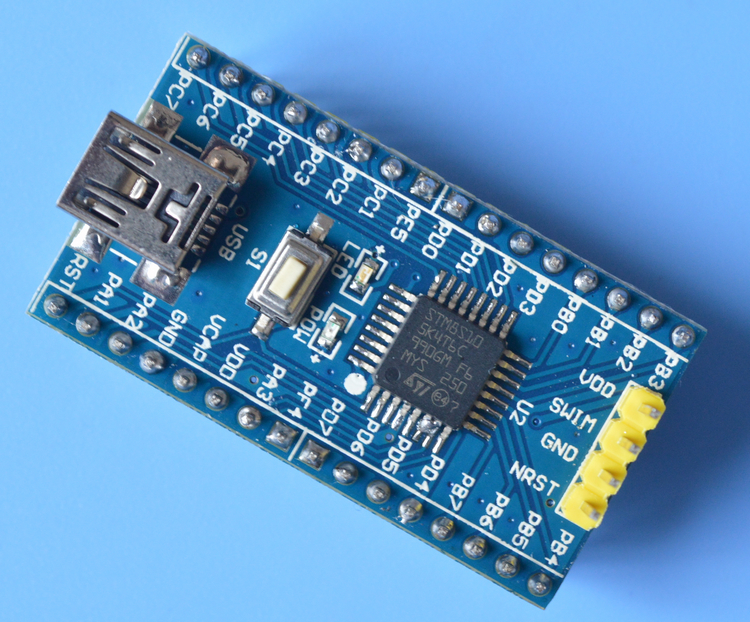

1: Onboard SWIM interfaces, user-friendly debugging. Onboard reset button, the user LED, power indicator.

2: Pin has been fully welded, users can directly use.

3: On-board USB-powered, computer USB port power directly.

4, advanced technology to ensure product quality!

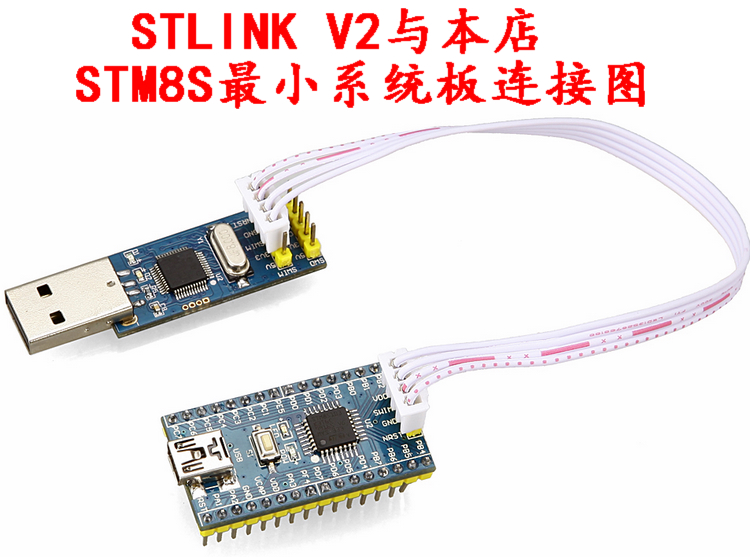

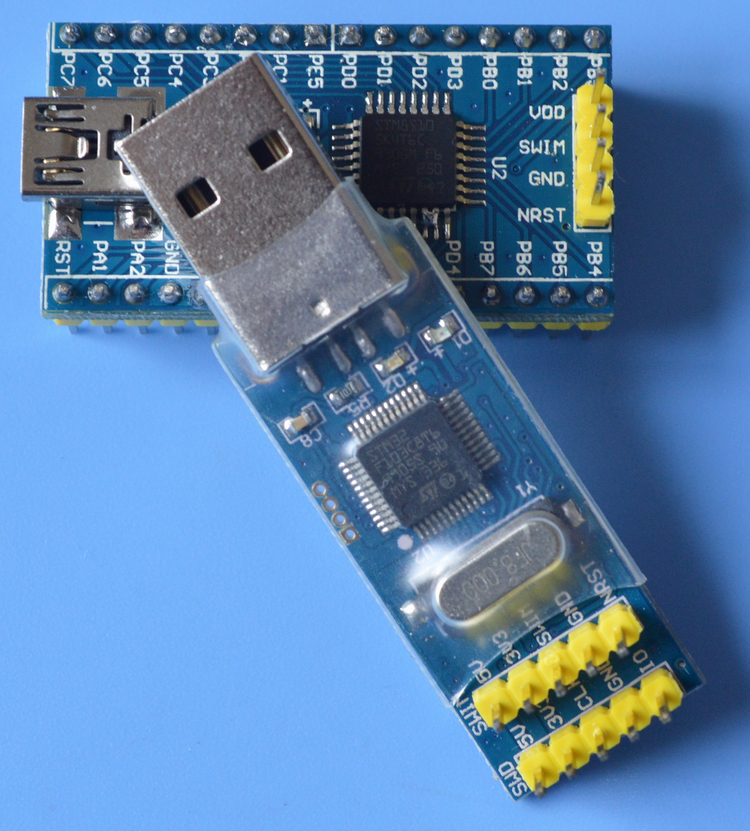

5: You can use our ST LINK V2 to simulation, debugging and programming this STM8 minimum system.

Product Tag : STM8S development board core board STM8S105K4T6
