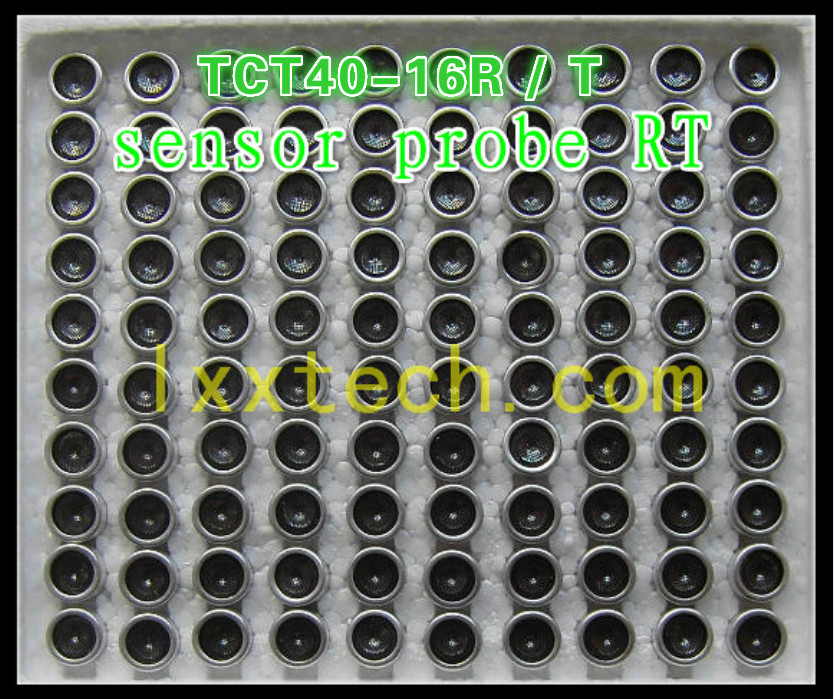

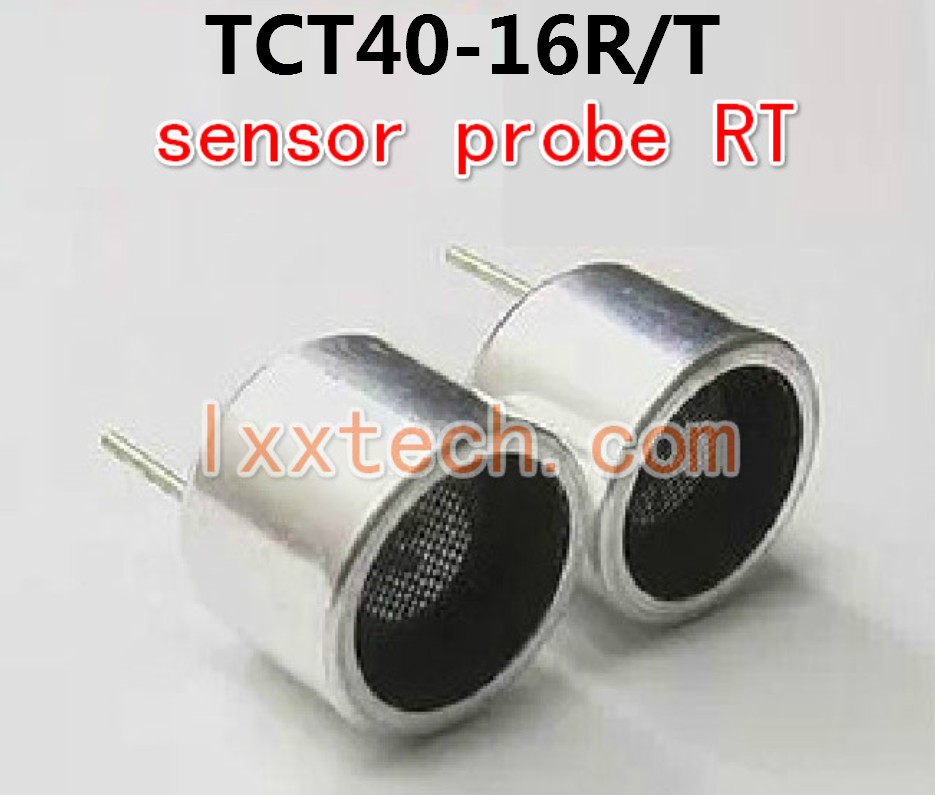

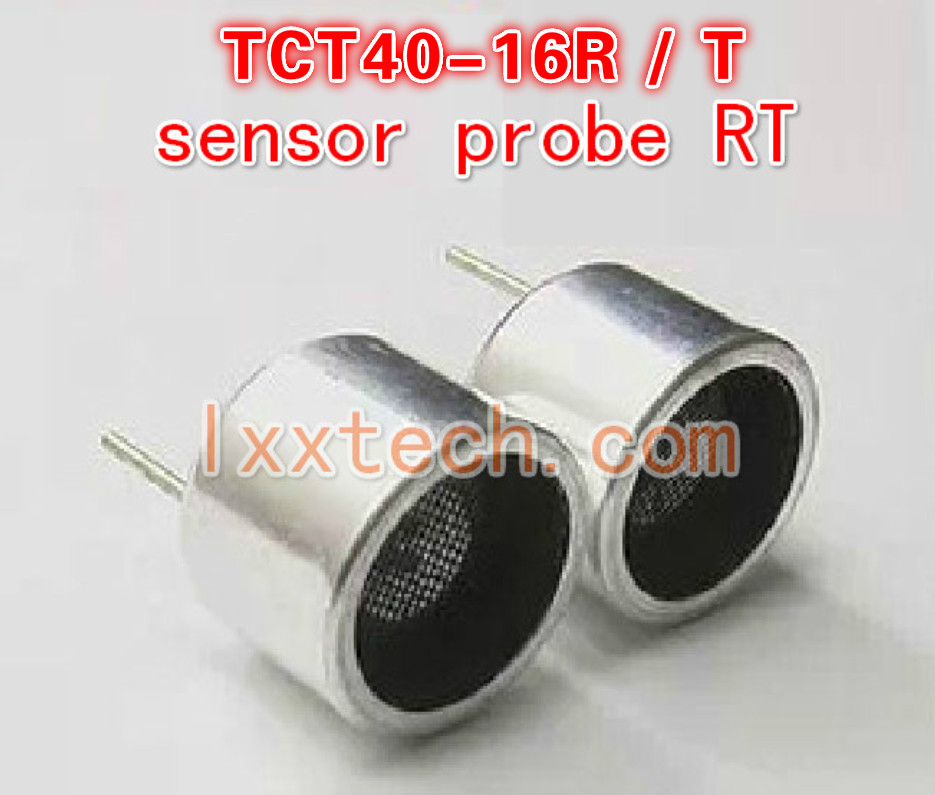

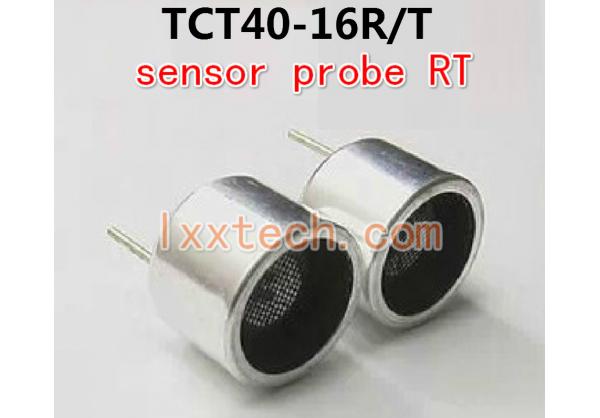

TCT40-16R/T RT split ultrasound / ultrasonic sensor / ultrasonic probe, center frequency: 40KHz ,dia

 TCT40-16R/T RT split ultrasound / ultrasonic sensor / ultrasonic probe, center frequency: 40KHz ,dia factory  TCT40-16R/T RT split ultrasound / ultrasonic sensor / ultrasonic probe, center frequency: 40KHz ,dia factory  TCT40-16R/T RT split ultrasound / ultrasonic sensor / ultrasonic probe, center frequency: 40KHz ,dia factory

Large Image:TCT40-16R/T RT split ultrasound / ultrasonic sensor / ultrasonic probe, center frequency: 40KHz ,dia

Product Details:

Place of Origin: CHINA
Brand Name: LXXTECH
Model Number: LXX-F0002
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:
Price: Good price
Delivery Time:
Payment Terms: TT ,paypal,ESCROW
Supply Ability:
Detailed Product Description


    TCT40-16R/T RT split ultrasound / ultrasonic sensor / ultrasonic probe,
                     center frequency: 40KHz ,diameter 16MM

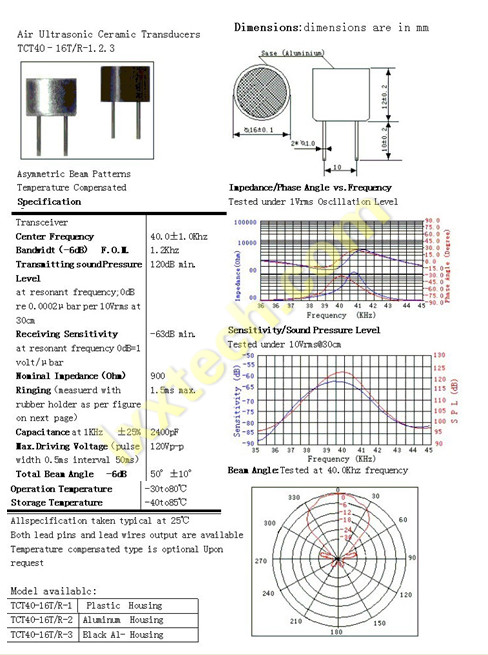

Product Description:

Diameter 16MM
Pin spacing: 10MM
T for the launch. R is received.
Model TCRT16-40
Diameter: 16mm
Center frequency: 40KHz

Model: TCT40-16R / T (16 mm in diameter)
Nominal frequency (KHz): 40KHz
Emission sound pressure at10V (0dB = 0.02mPa): ≥ 117dB
Receiver sensitivity at40KHz (0dB = V / ubar): ≥-65dB
Capacitance at1KHz, <1V (PF): 2000 ± 30%


Part number: NU25C16T-1
Using Method: Transmitter
Construction: Open structure type
Center frequency: 40.0 ± 1.0KHz
Sound pressure level: 112dB min.
Sensitivity
Capacitance: 2400Pf ± 20%
Maximum input voltage: 60Vp-p
Directivity: 60 ° ± 15 ° (-6dB)
Operating temperature: -20 ° C ~ +70 ° C
Storage Temperature: -40 ° C ~ +85 ° C
Weight: 2.2g



















If you need more products, please contact us!





Welcome to the patrons, LXXTECH will provide you with one-stop service,


large price concessions, LXXTECH, reputation first!
