Electronic Modules Temperature thermistor sensor plus 12V relay module, wet control switch temperature detection module

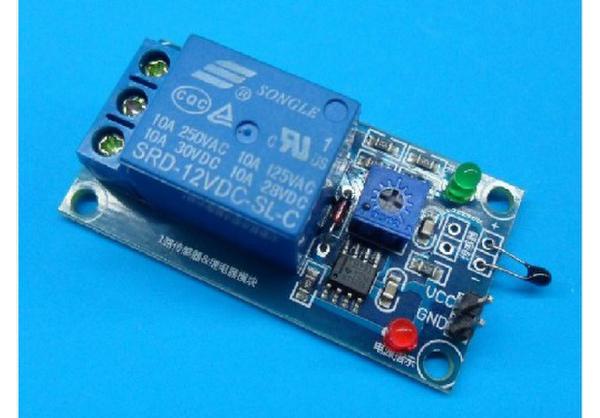

: Large Image:Electronic ModulesTemperature thermistor sensor plus 12V relay module, wet control switch temperature detection module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0200
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

Temperature thermistor sensor plus 12V relay module, wet control switch temperature detection module

Purpose:

Temperature detection, adjustable via potentiometer point to a valve to control the appropriate temperature , with relay output , directly connected to AC power products .

Module Features :

1, automatic control of temperature, lower than the temperature start, or higher than the temperature start, select normally open when the output termination is higher than the set temperature start , then the NC is below the set temperature start ;

2 , the comparator outputs directly drive relays or other devices connected to 220V AC ;

3 , adjust the temperature distribution bits ;

4, the sensor interface can be installed pin , plus leaded thermal sensor ;

5 , external dimensions : 50x26mm, thickness 19mm, 3mm bolts with four holes for easy installation.

Electrical parameters:

Supply voltage : 12VDC

Current : more than 150mA

Load : 250V 10A AC or 30V 10A DC

Module for use:

1 , the thermal resistance of the module most sensitive to the ambient temperature , generally used to detect the ambient temperature , the replacement water type heat sensors can detect temperature .

2 , the module at ambient temperature exceeds the set threshold, the relay , often beginning with common terminal connected, when the ambient temperature is below the set threshold, the relay is switched off , the common and normally closed terminal connected ;

3 , common, normally open , normally closed three ports is equivalent to a dual-control switch, relay coil power , often beginning with common terminal conduction, no electricity , the common and normally closed terminal conduction ;

Product example:

Tank temperature monitoring, indoor temperature monitoring, automotive temperature monitoring.

Product Tag : Temperature thermistor sensor plus 12V relay module
