Electronic Modules Thermistor thermistor sensor module temperature sensor module

: Large Image:Electronic ModulesThermistor thermistor sensor module temperature sensor module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0201
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

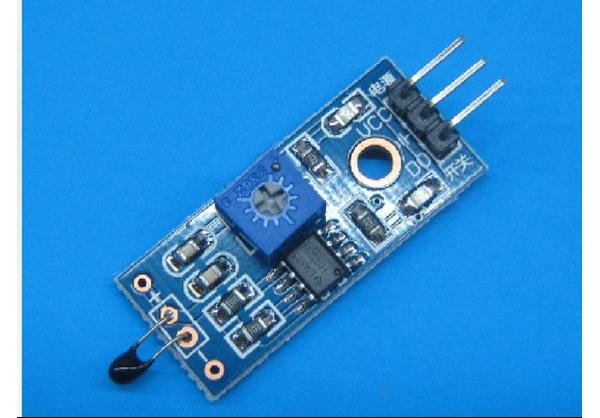

Thermistor thermistor sensor module temperature sensor module

Purpose:

Temperature detection, temperature control sensors , ambient temperature detection

Module Features :

1, using the NTC thermistor sensor , good sensitivity

2 , the comparator output signal clean waveform is good , driving ability, than 15mA.

3 , adjust the temperature distribution bit detection threshold

4, Working voltage 3.3V-5V

5, the output format : Digital switching output ( 0 and 1 )

6, with bolt holes for easy installation

7 , a small board PCB size : 3.2cm x 1.4cm

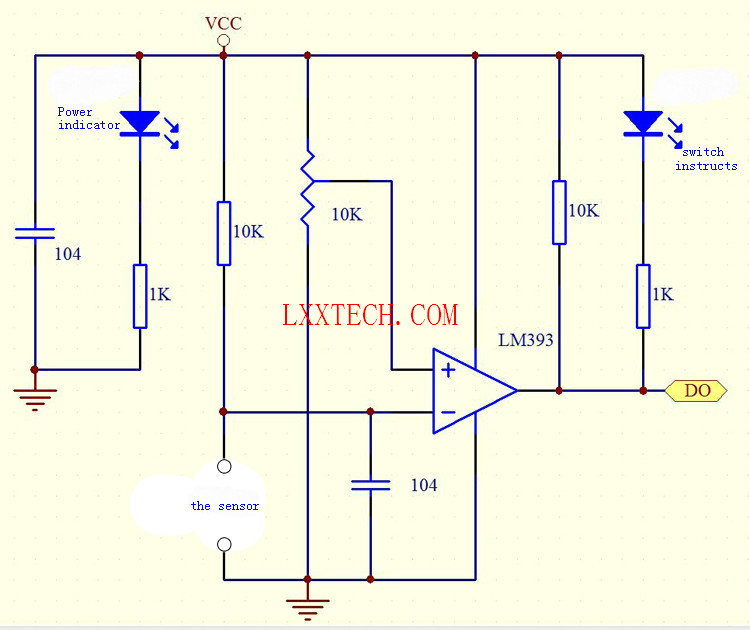

8 , using a wide voltage LM393 comparator

Module for use：

1 , the thermal resistance of the module is very sensitive to the ambient temperature , generally used to detect the ambient temperature ;

2, through the adjustment of the potentiometer , can change the temperature detection threshold ( ie, temperature control value) , if necessary to control the ambient temperature is 50 degrees , the module in the corresponding ambient temperature to which the green light , DO output is low level falls below the set temperature value, the output is high , the green light does not shine ;

3, DO output can be directly connected with the microcontroller through the microcontroller to detect high and low , thereby detecting the ambient temperature changes ;

4, DO OUR outputs can directly drive the relay module , which can be composed of a thermostat to control the operating temperature of related equipment can also be connected to the fan used to heat and other ;

5 , the detection range of the module's temperature 20-80 ° C ;

6 , this module can also be replaced with a wire temperature sensor for water temperature, water tank controlled.

Product Tag : Thermistor thermistor sensor module 3pin
