Electronic Modules Vibration sensor module vibration switch vibration sensor module alarm module

: Large Image:Electronic ModulesVibration sensor module vibration switch vibration sensor module alarm module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0189
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	30
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

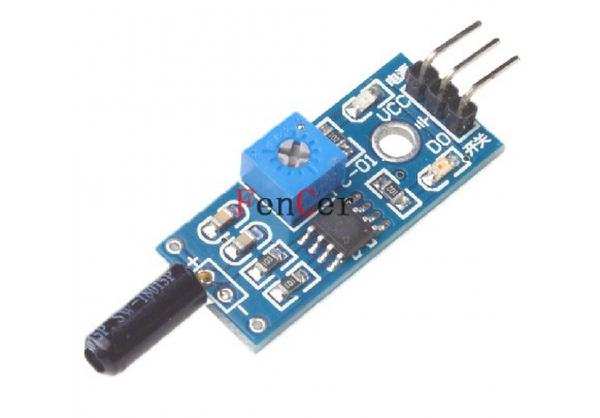

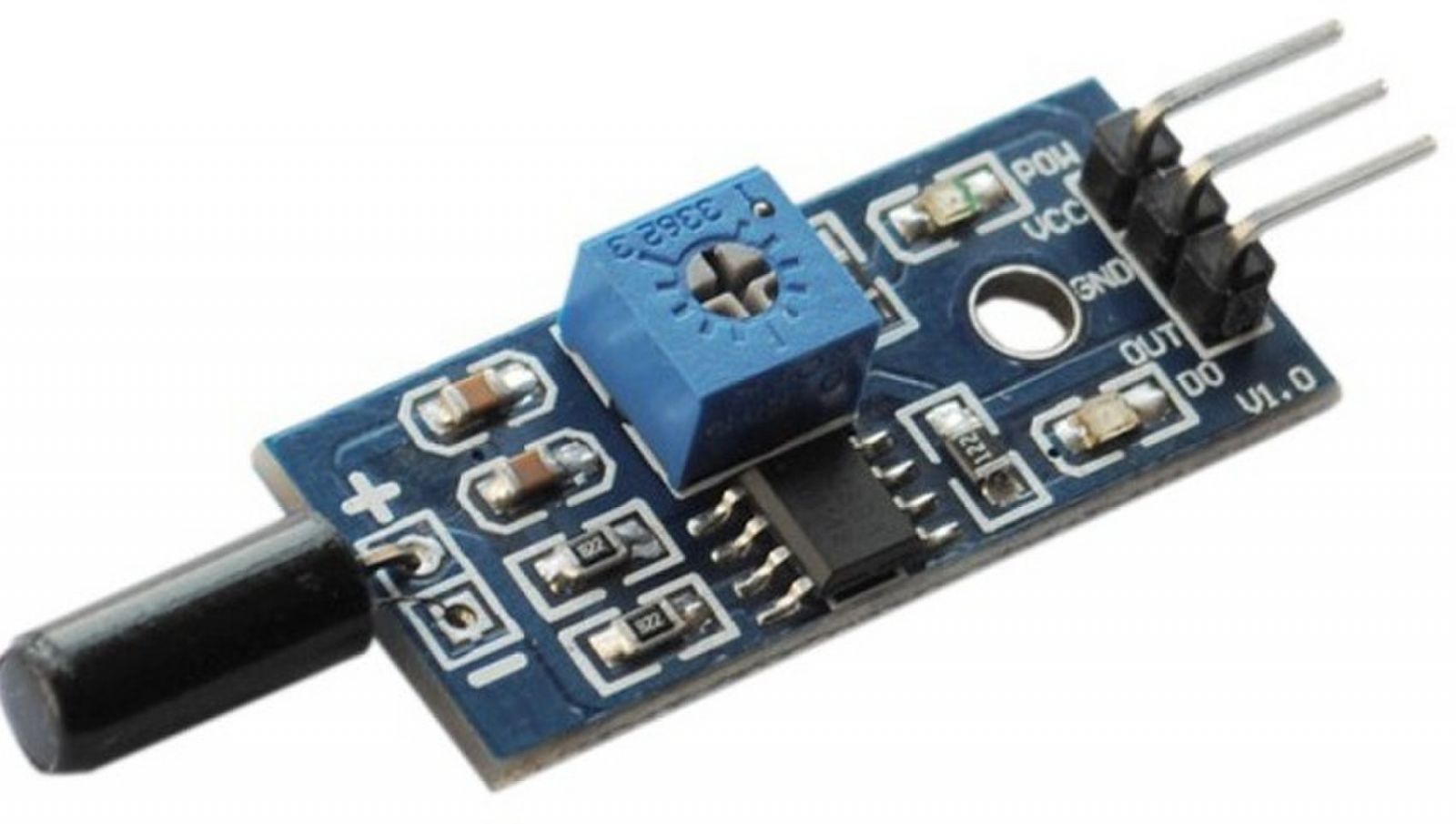

Vibration sensor module vibration switch vibration sensor module alarm module

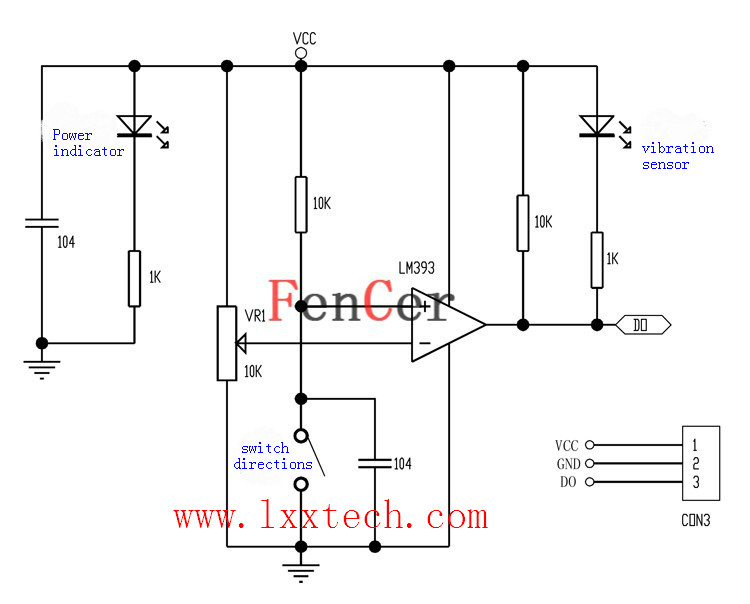

Product diagram:

Purpose:

For a variety of vibration triggering effect, reported stolen alarm, smart car, electronic building blocks and so on.

Please note that this module is sensitive to small vibrations triggered when the time will be very short, not enough to drive a relay, some of the information and relay modules can be directly connected to the practical application ineffective.

Module Features:

1, using the company produces a variety of sensitivity vibration switch, the default with SW-18015P shock sensor.

2, the comparator output signal clean waveform is good, driving ability, than 15mA

3, the working voltage 3.3V-5V

4, the output format: Digital switching output (0 and 1)

5, with bolt holes for easy installation

6, small plate PCB size: 3.2cm x 1.4cm

7, using a wide voltage LM393 comparator

Module Interface Description (3-wire)

1. VCC external 3.3V-5V voltage (5v microcontroller and can be directly connected to 3.3v MCU)

2. External GND GND

3 .DO digital output interface, a small plate (0 and 1)

Module for use:

Connect the VCC and GND, module power indicator lights

Light up the module on the desktop, adjust the blue board potentiometer until the indicator light panel switch, then a slight pullback potentiometer, so the switch lights off, and then hand tapping the desktop, so that vibration sensors have felt, at this time, the switch Goodbye to bright light condition. The shaking stops, switch indicator will extinguish. This phenomenon is explained, vibration can trigger module, so that the switch indicator lights.

Product Tag : Vibration sensor module 3PIN
